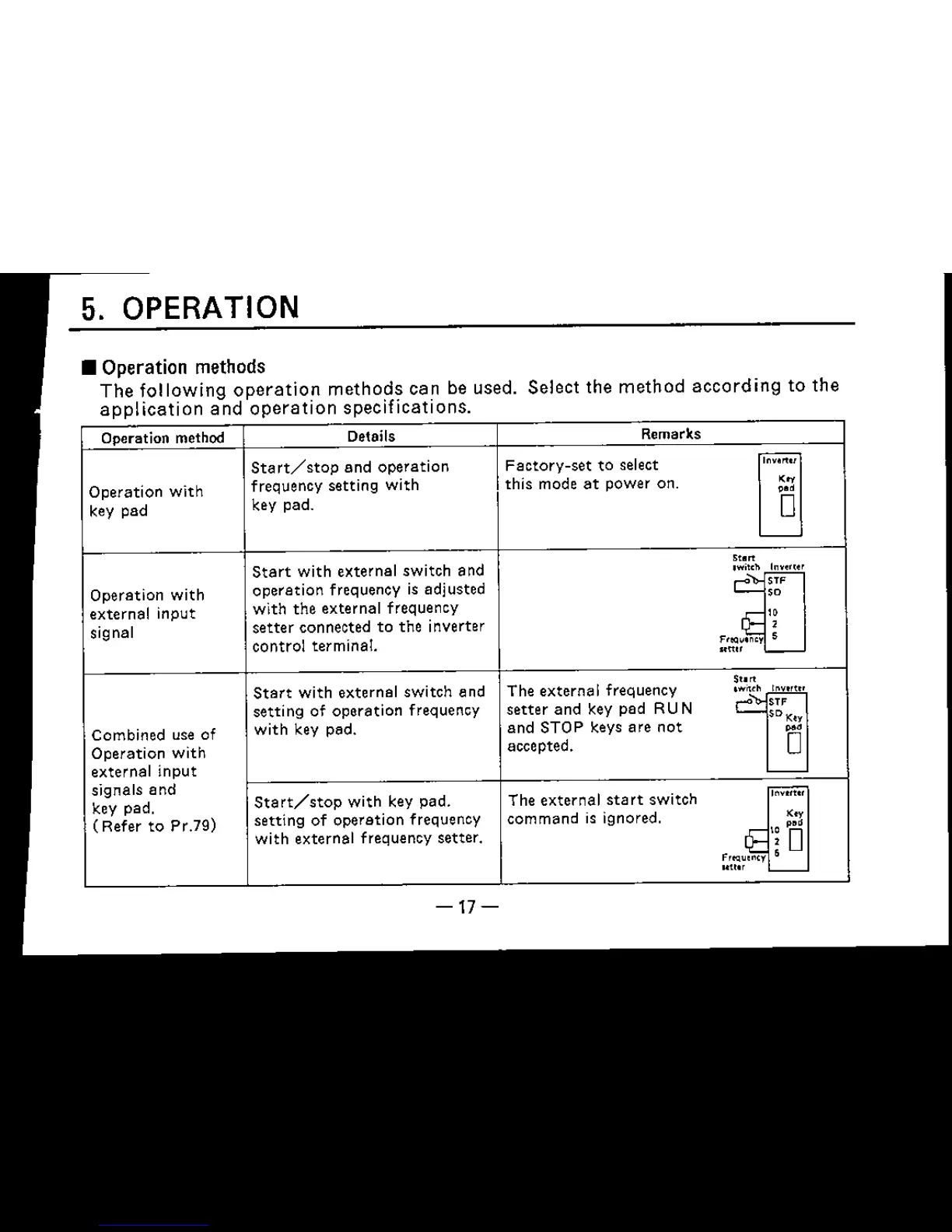

5. OPERATION
• Operation methods
The following operation methods can be used. Select the method according to the
application and operation specifications
Operation method
Details Remarks
Start/stop and operation Factory-set to select
rn
Operation with
frequency setting with this mode at power on.
'"
key pad
key pad.
Qa
Start with external switch and
Sto ..
In''''''
,w;lCh
Operation with
operation frequency is adjusted
C':
'"
'0
external input
with the external frequency
.~"
signal
setter connected to the inverter
F'!Q""cy ~
control terminal.
Sf"" l-.-
Start with external switch and The external frequency
St."
'WMh
10""'''
setting of operation frequency setter and key pad RU N
C':
err
SDK,.
Combined use of
with key pad. and STOP keys are not ~.
Operation with
accepted.
0
external input
signals and
Start/stop with key pad. The external start switch
lov"'"
key pad.
(Refer to Pr.79)
setting of operation frequency command is ignored.
"
''""~
~.
with external frequency setter.
\~ D
s
uUor
'-----
-17-
