Mitsubishi FREQROL-U100 User Manual

Gain
If-'
i
NOU
)
,v
frequenoy setting signal
(Note)
• When this C-2 or C-3 is specified, value set for 'frequency setting voltage bias"
(function No. 21)
or 'frequency setting voltage gain- (function No.22) will be
automatically rewritten.
-38-

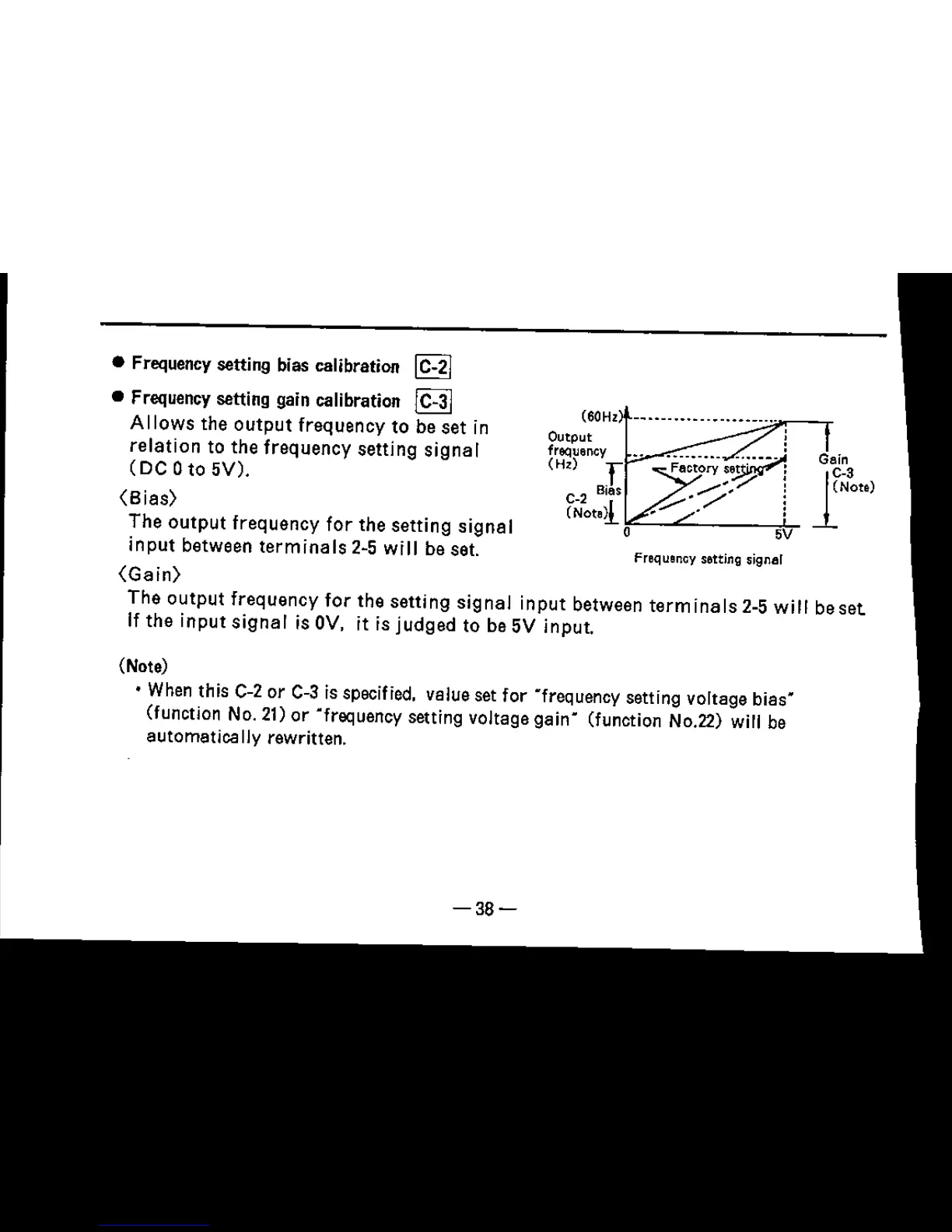

• Frequency setting bias calibration §
• Frequency setting gain calibration fC=3l
Allows the output frequency to be set in
relation to the frequency setting signal
(DC Oto 5V).
(Bias)
The output frequency for the setting signal
input between terminals 2-5 will be set.
(Gain)
The output frequency for the setti ng sig naJ input between term ina Is 2-5 wi II be set
If the input signal is av, it is judged to be 5V input.

Mitsubishi FREQROL-U100 Specifications

General

Brand	Mitsubishi
Model	FREQROL-U100
Category	Inverter
Language	English
