Mitsubishi FREQROL-U100 User Manual

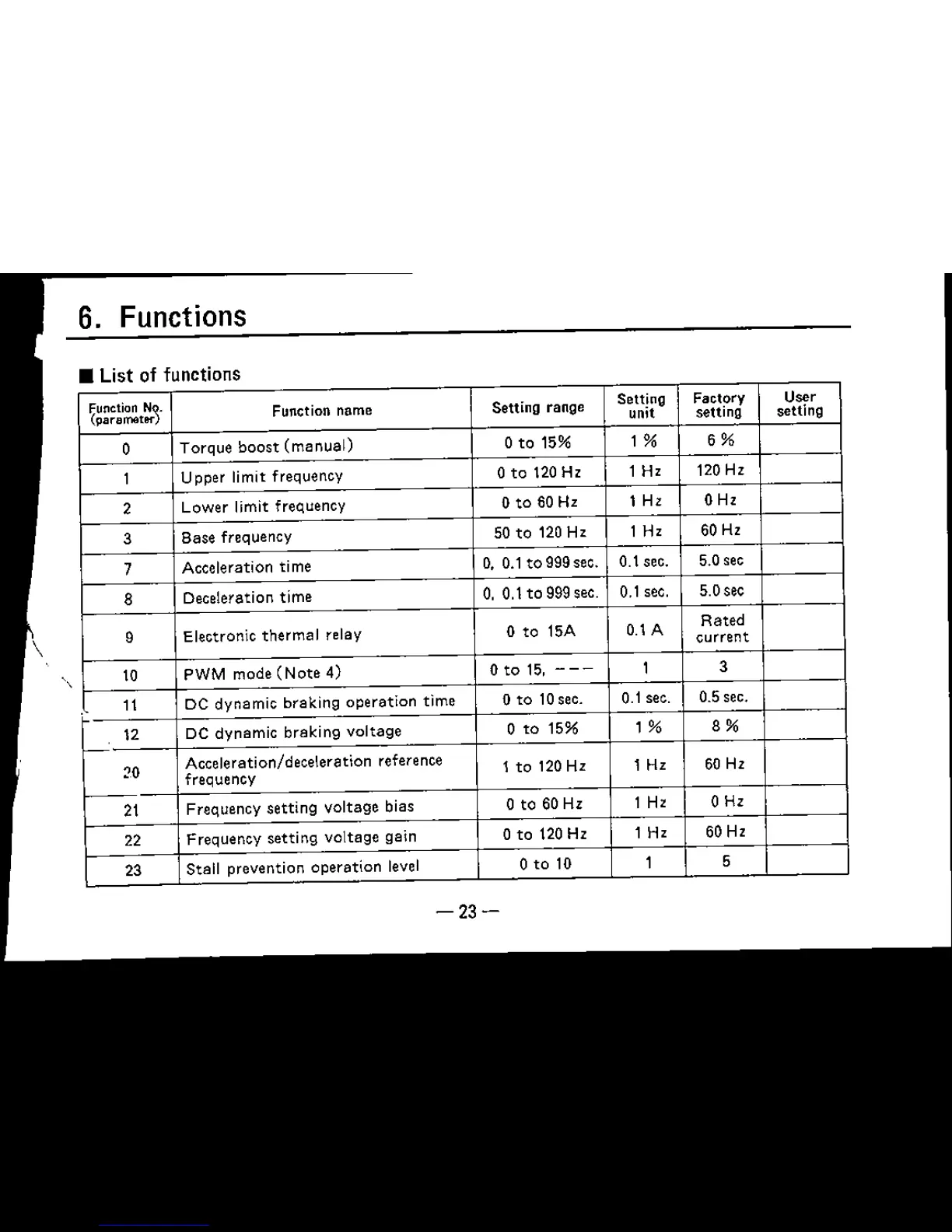

6. Functions
• List of functions
~~~~~i:t~)'
Function name Setting range
Setting Factory
Uw
unit
setting setting
0
Torque boost (manual) o to 15%
1% 6%
1
Upper limit frequency
Oto120Hz
1 H'
120 Hz
2
Lower limit frequency o to 60 Hz 1 H, oH,
3
Base frequency
50 to 120 Hz
1 H,
60 Hz
7
Acceleration time 0, 0.1 to 999 sec. 0.1 sec. 5.0 sec
8
Deceleration time 0, 0.1to 999 sec.
0.1 sec. 5.0 sec
9 Electronic thermal relay o to 15A 0.1 A
Rated
current
10
PWM mode (Note 4) Ot015,---
1
3
11 DC dynamic braking operation time Oto tOsee. 0.1 sec.
0.5 sec.
12
DC
dynamic braking voltage
o to 15%
1%
8%
-'
Acceleration/deceleration reference
20
frequency
1 to 120Hz
1 H'
60 Hz
~
Frequency setting voltage bias o to 60 Hz
1 H'
oH,
22
Frequency setting voltage gain
Oto120Hz
1 H'
60 Hz
23
Stall prevention operation level
o to 10
1
5
-23-
