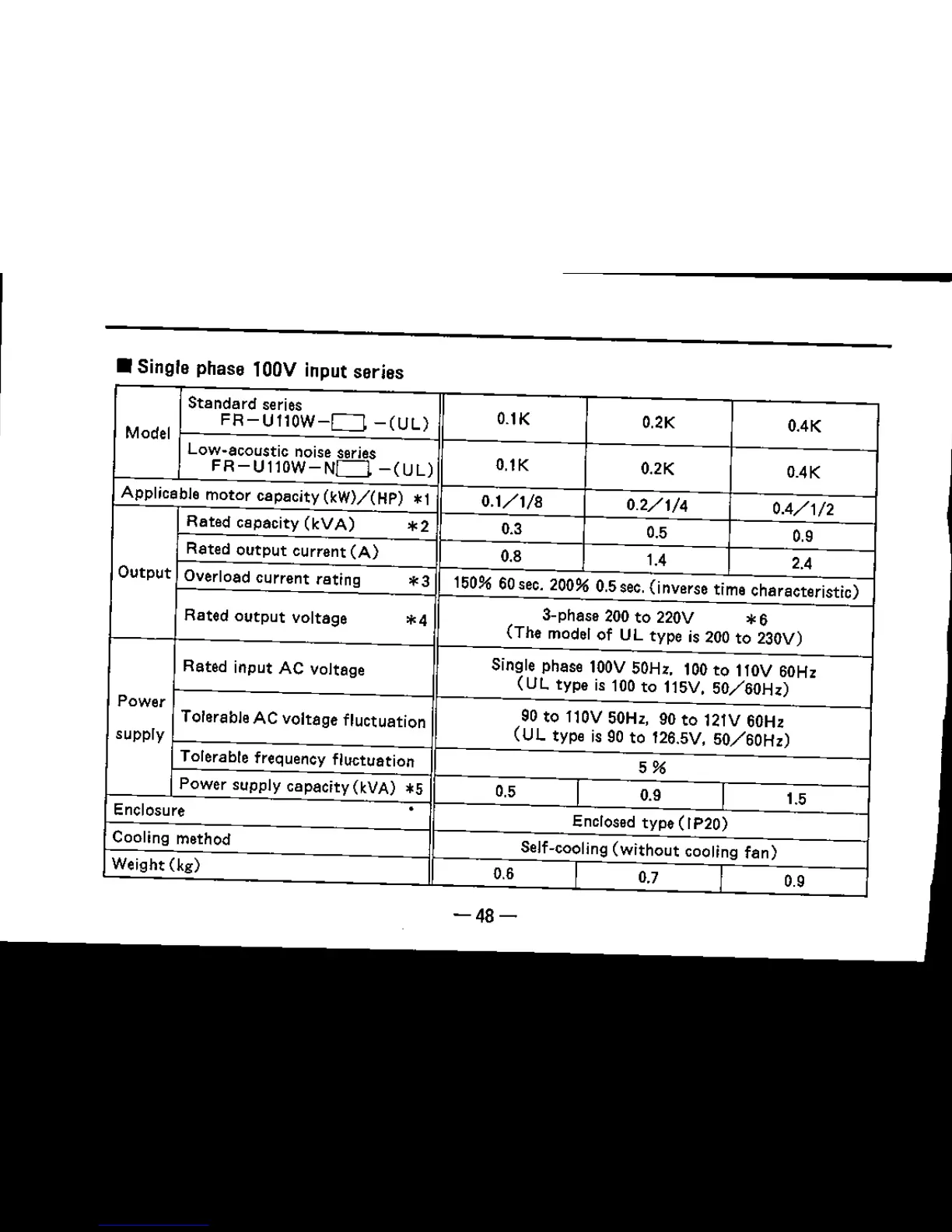

Mitsubishi FREQROL-U100 User Manual

• Single phase lOOV input
series
Standard
series
O.IK
0.2K 0.4K
Model
FR-Ull0W-D
-CUL)
Low-acoustic noise series
O.lK 0.2K OAK
FR-Ull0W-ND
-(UL)
Applicable motor capacity
(kW)/(HP)
*1
0.1/1/8
0.2/1/4
0.4/1/2
Rated capacity
(kVA)
*2
0.3 0.5 0.9
Rated
output
current
(A)
0.8 1.4
2.4
Output
Overload current rating
*3
150% 60sec. 200% 0.5sec.(inverse time characteristic)
Rated
output
Voltage
*4
3-phase 200
to
220V
*6
(The model of UL type is 200 to 230V)
Rated input AC voltage
Single phase 100V 50Hz. 100
to
110V 60Hz
(UL
type is 100 to 115V.
50/60Hz)
Power
90 to 110V 50Hz, 90
to
121V 60Hz
Tolerable AC voltage fluctuation
(UL
type is 90 to 126.5V,
50/60Hz)
supply
Tolerable frequency fluctuation
5%
Power supply capacity
(kVA)
*'
0.5
I
0.9
1.5
Enclosure
Enclosed type
(rP20)
Cooling method
Self-cooling
(without
cooling
fan)
Weight (kg)
0.6
0.7
0.9
-48-

Mitsubishi FREQROL-U100 Specifications

General

Brand	Mitsubishi
Model	FREQROL-U100
Category	Inverter
Language	English
