Mitsubishi FX3U Series Programming Manual

426
FX3G/FX3U/FX3GC/FX3UC Series
Programming Manual - Basic & Applied Instruction Edition
15 External FX I/O Device – FNC 70 to FNC 79
15.4 FNC 73 – SEGD / Seven Segment Decoder

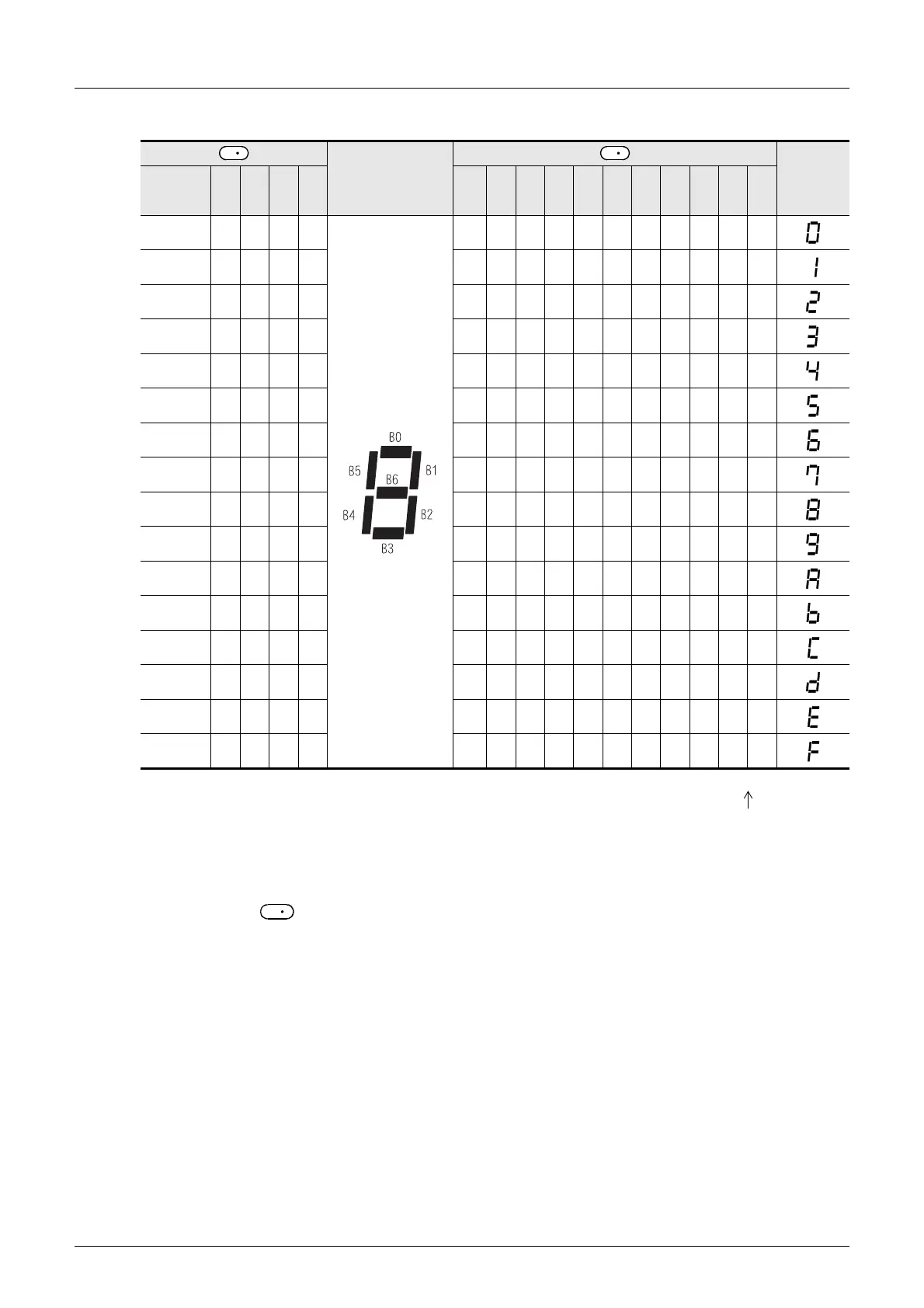

2. Seven-segment decoding table
Caution
1. Number of occupied devices
Low-order 8 bits of are occupied, and high-order 8 bits do not change.
Seven-segment
configuration
Display
data
Hexadeci-
mal num-
ber
b3 b2 b1 b0 B15 ... B8 B7 B6 B5 B4 B3 B2 B1 B0
00000 −−00111111
10001 −−00000110
20010 −−01011011
30011 −−01001111
40100 −−01100110
50101 −−01101101
60110 −−01111101
70111 −−00100111
81000 −−01111111
91001 −−01101111
A1010 −−01110111
B1011 −−01111100
C1100 −−00111001
D1101 −−01011110
E1110 −−01111001
F1111 −−01110001
S D
The head bit device or the least significant bit
of a word device is handled as B0.
D

Mitsubishi FX3U Series Specifications

General

Model	FX3U Series
Program Memory	64k steps
Execution Speed	0.065 μs/basic instruction
Type	PLC (Programmable Logic Controller)
Power Supply	100-240V AC
I/O Points	Up to 384
Communication	USB
Expansion	Supported via expansion modules
High-Speed Counters	Up to 6 channels
Analog Input/Output	Available via expansion modules
Temperature Range	0 to 55°C
Programming Language	Ladder Logic, Structured Text
Built-in Functions	PID control
Humidity	5 to 95% (non-condensing)
