DOOR
BODY
42-10
DOOR
DOOR LOCK
M2420009000091

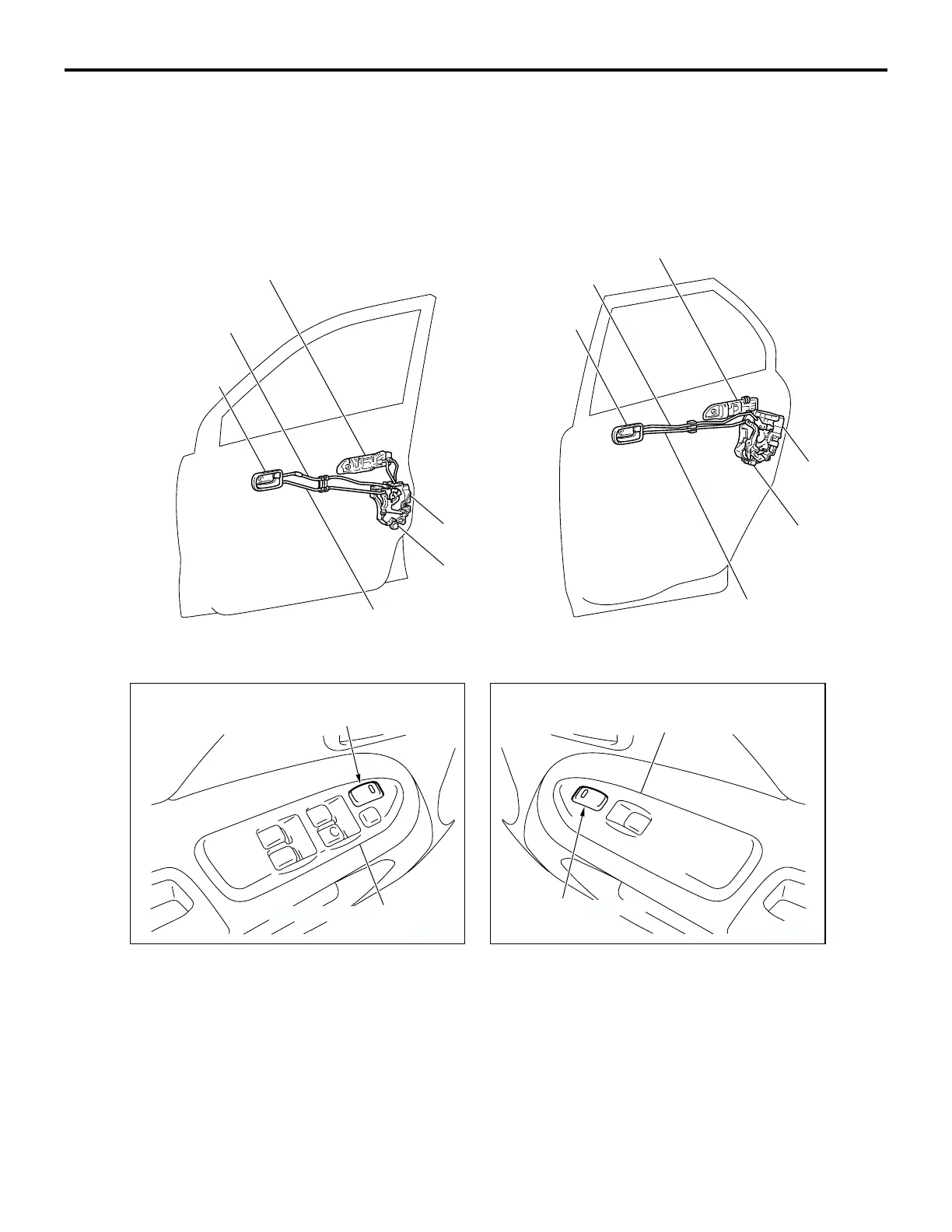

CONSTRUCTION DIAGRAM
• A central door lock to lock/unlock all doors with a
key cylinder at the driver's door is utilized.
• As an added safety measure, the front doors
incorporate an inside lock cable to prevent the
door from locking during an impact.
• The door lock prevention function by ETACS con-
trol when the ignition key is left has been
adopted. (Refer to GROUP 54B, SIMPLIFIED
WIRING SYSTEM P.54B-6.)
AC101136 AC101137
AC211879
AB
<FRONT> <REAR>
DRIVER'S SIDE PASSENGER'S SIDE
DOOR LOCK SWITCH
INSIDE LOCK CABLE
INSIDE HANDLE
OUTSIDE HANDLE
DOOR LATCH
ASSEMBLY
DOOR LOCK
ACTUATOR
OUTSIDE HANDLE
DOOR LATCH
ASSEMBLY
DOOR LOCK
ACTUATOR
INSIDE HANDLE ROD
INSIDE LOCK ROD
INSIDE HANDLE
INSIDE HANDLE ROD
POWER WINDOW SUB SWITCH
POWER WINDOW MAIN SWITCH
DOOR LOCK SWITCH
