REAR WIPER AND WASHER
EXTERIOR
51-7
REAR WIPER AND WASHER
GENERAL INFORMATION
M2510000100570

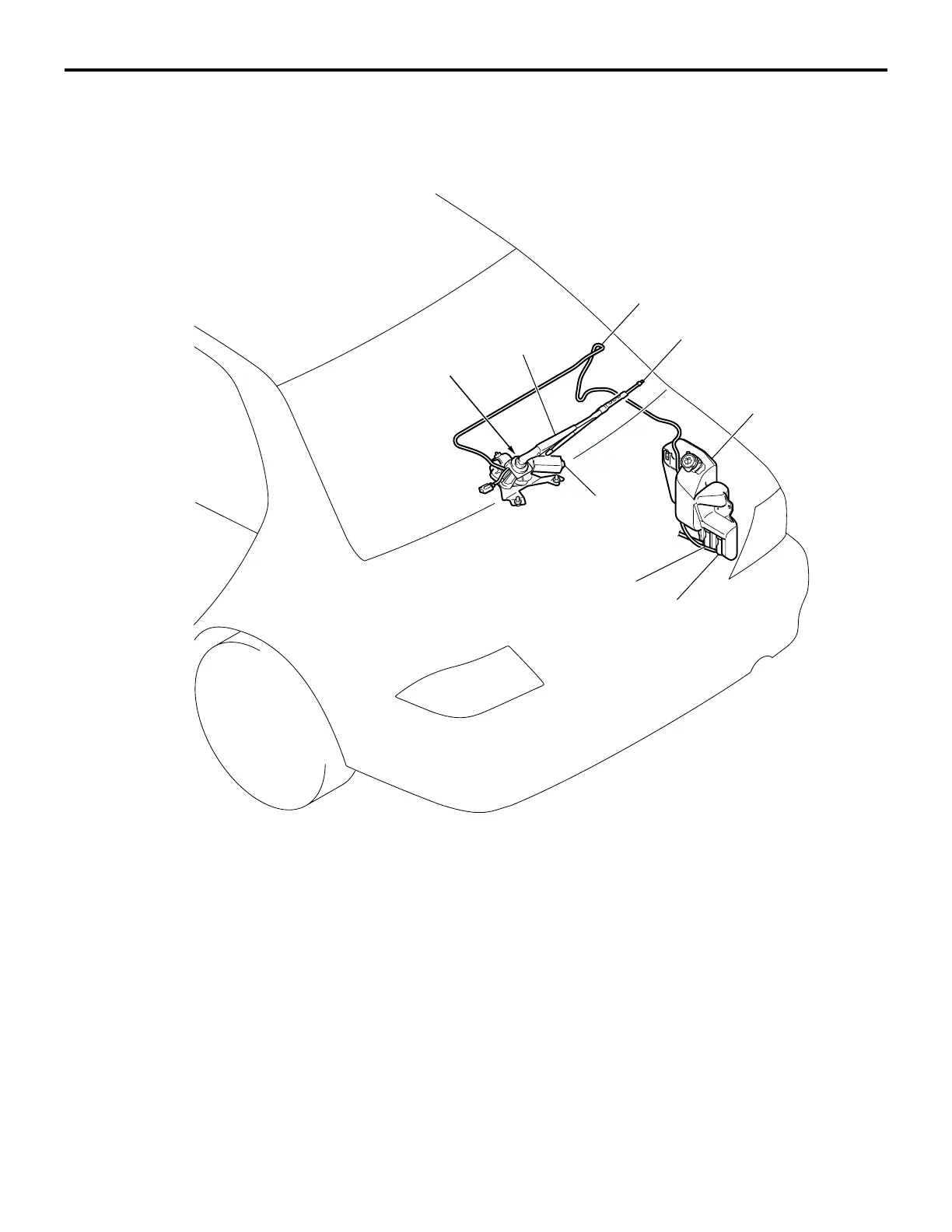

CONSTRUCTION DIAGRAM
• The fixed interval type intermittent wiper has
been adopted.
• The initial continuous operation is; when the rear
wiper switch is turned on, the rear wiper operates
continuously through two or three cycles to wipe
away the rain from the glass and then it changes
to intermittent operation.
• Reverse-gear linked operation: when the selector
lever is moved to the reverse (R) position with the
rear wiper switch at the intermittent position,
there is a delay of approximately one second,
and then the wiper operates two or three times
continuously at low speed, and then it continues
operating in normal intermittent mode.
AC210174
WIPER ARM
WIPER MOTOR
WIPER BLADE
WASHER TANK
AB
WASHER NOZZLE
WASHER HOSE
REAR WASHER
MOTOR
FRONT WASHER
MOTOR
