BATTERY
CHASSIS ELECTRICAL
54A-3

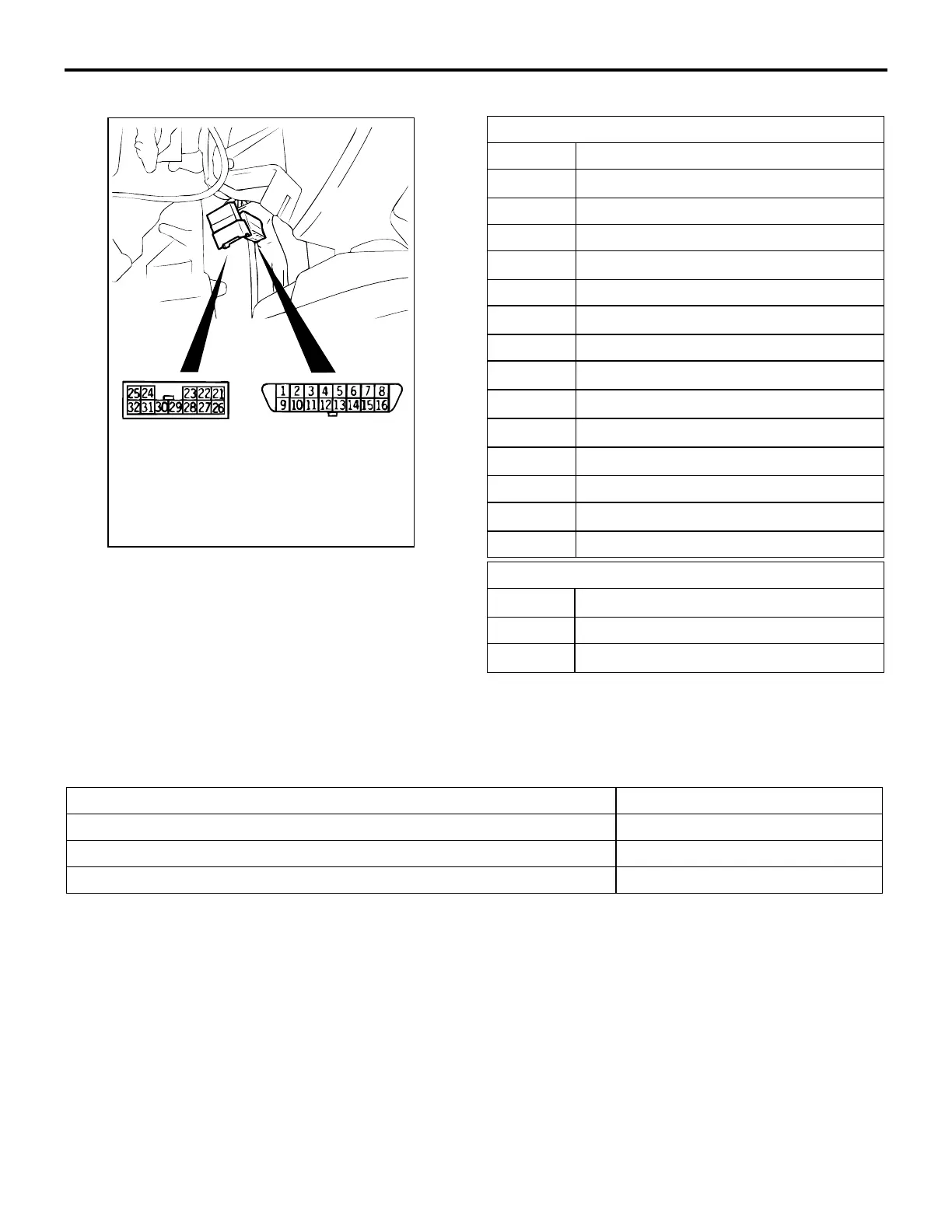

DATA LINK CONNECTOR
BATTERY
M2540002000129
A lightweight and compact battery is provided.
AC005418
AB
12-PIN CONNECTOR
(WHITE)
16-PIN CONNECTOR
(BLACK)
DATA LINK CONNECTOR (BLACK)
1 Diagnosis control
2, 3
−
4 Grounding
5 Grounding
6
−
7 MFI, ABS, SRS
8
−
9 ETACS-ECU
10
−
11
−
12
−
13
−
14 Simulated vehicle speed signal
15
−
16 Battery
DATA LINK CONNECTOR (WHITE)
21 − 25
−
26 MFI
27 − 32
−
ITEM 75D23L
Voltage V 12
Capacity (5 hours average Ah) 53
Specific gravity of battery electrolyte (fully charged at 20 °C) 1.280
