GENERAL DESCRIPTION
POWER PLANT MOUNT
32-2
GENERAL DESCRIPTION
M2320000100113
The inertia axial system based the LANCER system
has been adopted for the engine mount system.
• The liquid-filled mount system is used adopted
for engine mounting and transaxle mounting to
improve ride feeling by optimizing the insulator.
• Installation of roll stopper in the upper area has
reduced engine rolling. Furthermore, enlarge-
ment of insulator diameter has reduced idle vibra-
tion.

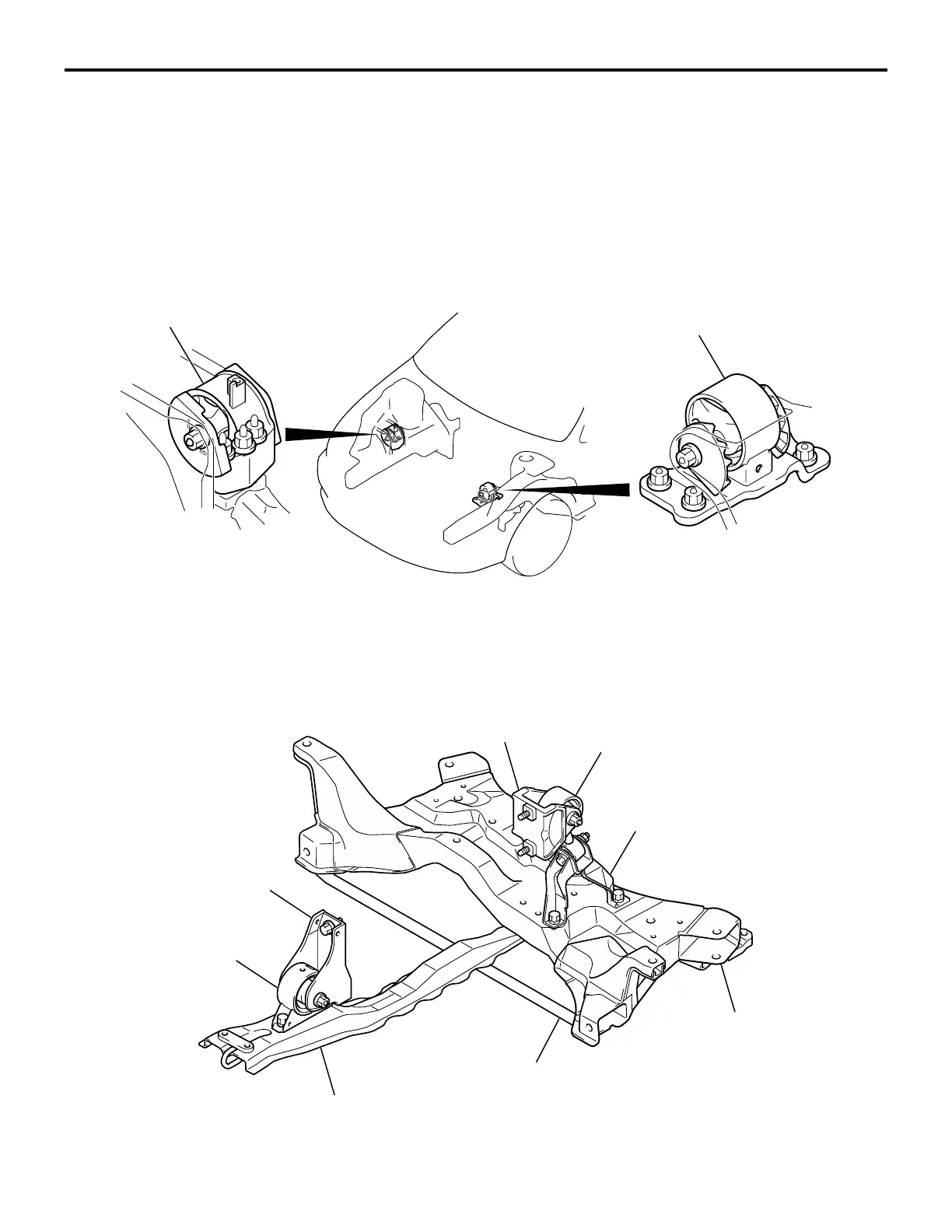

CONSTRUCTION DIAGRAM
AC210281
ENGINE FRONT MOUNTING
BRACKET
TRANSAXLE MOUNTING
BODY SIDE BRACKET
TRANSAXLE CASE FRONT
ROLL STOPPER BRACKET
TRANSAXLE CASE REAR
ROLL STOPPER BRACKET
ENGINE FRONT
ROLL STOPPER
BRACKET
FRONT SUSPENSION
CENTERMEMBER
FRONT AXLE
CROSSMEMBER BAR
FRONT AXLE NO.1
CROSSMEMBER
AB
ENGINE REAR
ROLL STOPPER ROD
BRACKET
ENGINE REAR
ROLL STOPPER ROD
