WINDOW GLASS REGULATOR
M2420011000098

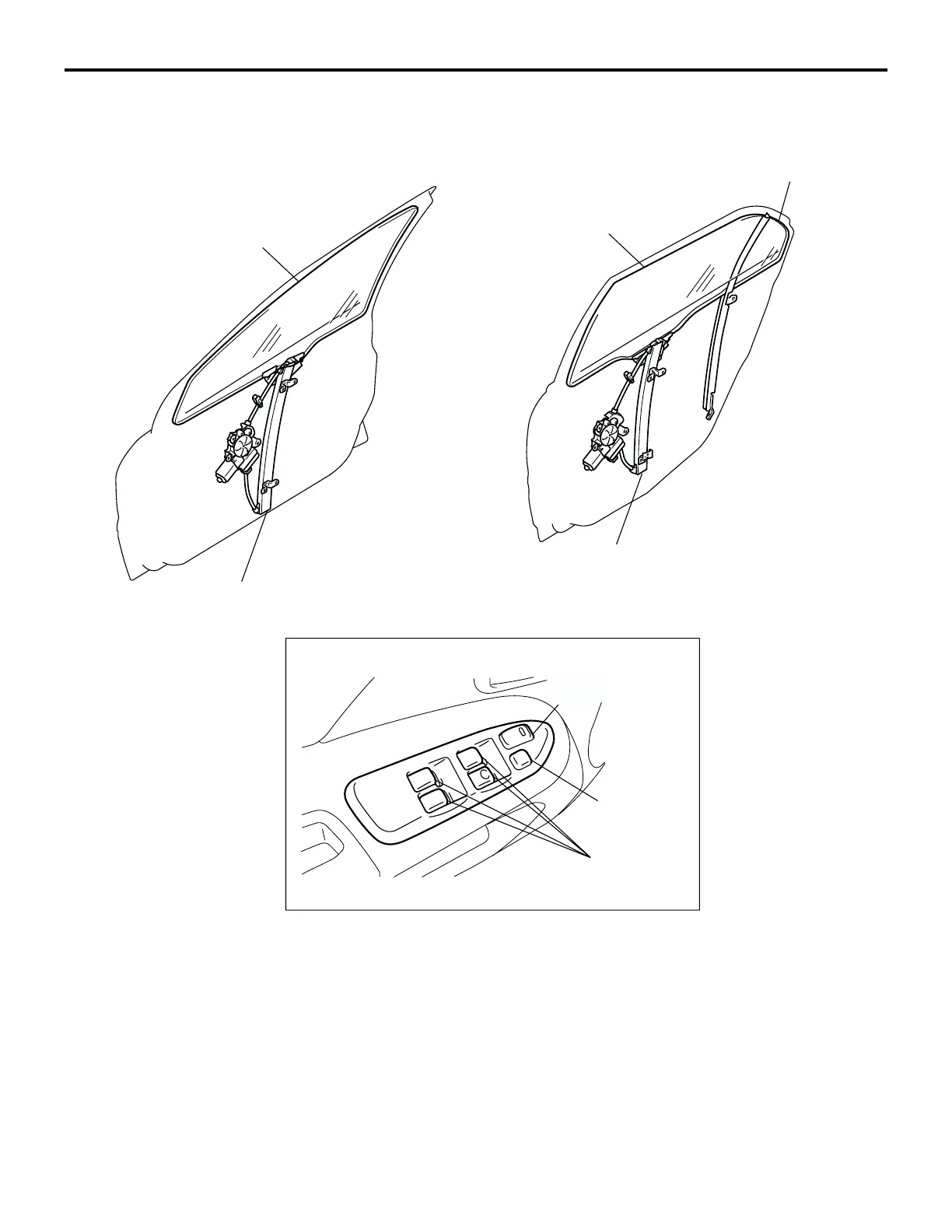

CONSTRUCTION DIAGRAM
• The window regulator is a compact and light-
weight wire winding type.
• The power window system incorporates a one-
touch-down window opening mechanism which
allows driver’s window to open completely by fully
pressing the main switch without need for keep-
ing it pressed.
The driver’s power window control also has a
lock switch which, when in the ON state, prevents
the switches of all other doors from being oper-
ated.
• For the control of the power window timer of the
ETACS-ECU. (Refer to GROUP 54B, SIMPLI-
FIED WIRING SYSTEM P.54B-6.)
• The power window system stays operative for
approximately 30 seconds after the ignition
switch is turned OFF. (Refer to GROUP 54B,
SIMPLIFIED WIRING SYSTEM P.54B-6.)
AC101139
AC210231AB
<FRONT>
<REAR>
POWER WINDOW MAIN SWITCH (DRIVER'S SIDE)
POWER WINDOW
LOCK SWITCH
POWER WINDOW SWITCH
DOOR WINDOW GLASS
DOOR WINDOW GLASS
POWER WINDOW GLASS
REGULATOR ASSEMBLY
POWER WINDOW GLASS
REGULATOR ASSEMBLY
STATIONARY WINDOW GLASS
DOOR LOCK SWITCH
(FOR CENTRAL DOOR
LOCKING SYSTEM)
