MULTI-DISTRIBUTION INPUT/OUTPUT BY CIRCUIT
SIMPLIFIED WIRING SYSTEM (SWS)
54B-3
MULTI-DISTRIBUTION INPUT/OUTPUT BY CIRCUIT
M2541002000144
Multi-distribution is employed by the following cir-
cuits. The relation of the input switches, sensors,
ECUs connected by multi-distribution lines, and out-
puts are also shown below.
TONE ALARM
• Light still ON reminder warning function
WINDSHIELD WIPER AND WASHER
• Windshield mist wiper
• Vehicle speed-dependent variable windshield
intermittent wiper
• Windshield low speed wiper
• Windshield high speed wiper
• Windshield washer

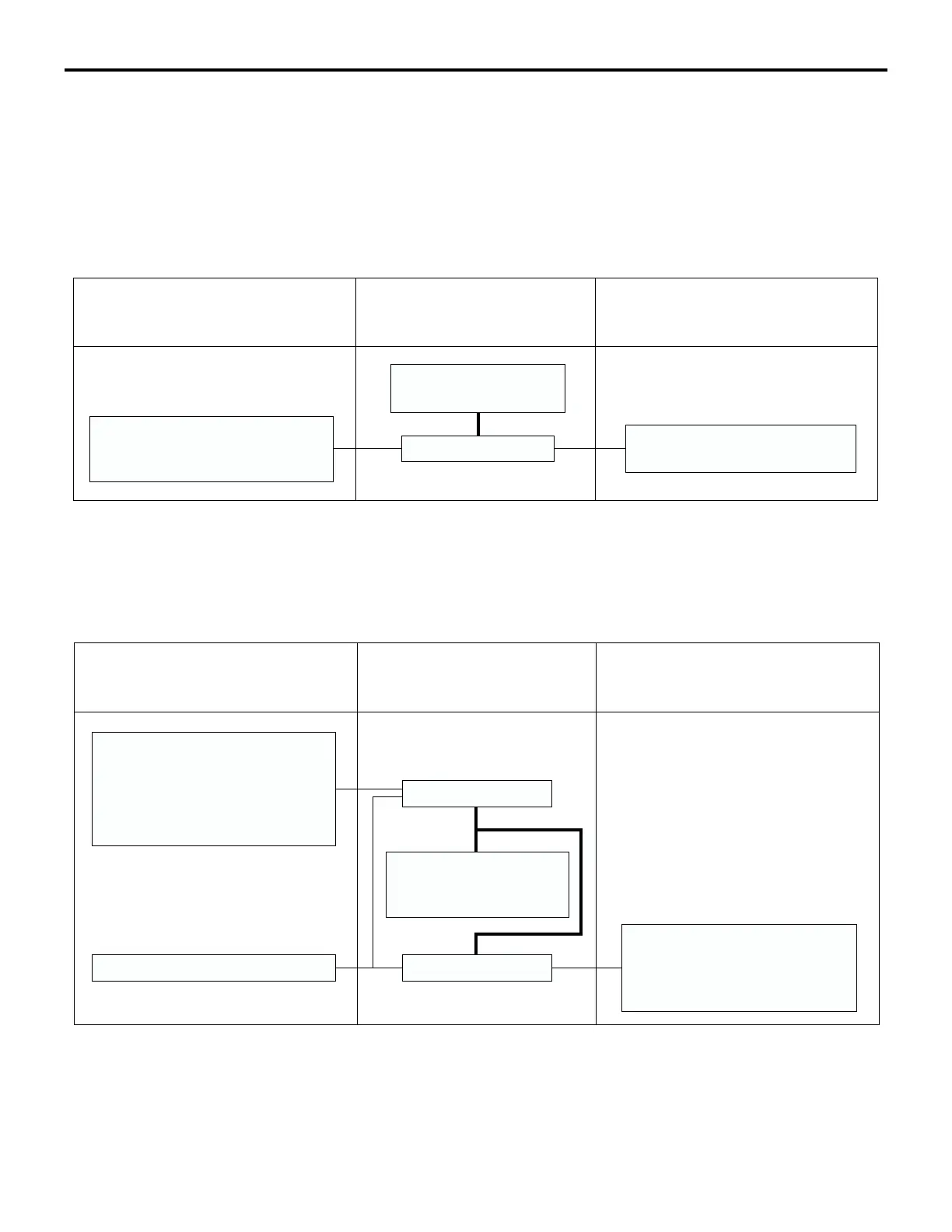

AC210161
INPUT SWITCH
ECU AND SWITCH
CONNECTED BY
MULTI-DISTRIBUTION
OUTPUT SIDE
TONE ALARM
(BUILT-IN ETACS-ECU)
ETACS-ECU
COLUMN SWITCH
(LIGHTING SWITCH)
• IGNITION SWITCH (IG1)
• DOOR SWITCH (FRONT: LH)
• KEY REMINDER SWITCH
AB
AC210162
INPUT SWITCH AND SENSOR
ECUS AND SWITCH
CONNECTED BY
MULTI-DISTRIBUTION
OUTPUT SIDE
AB
ETACS-ECU
• WINDSHIELD WIPER
MOTOR
• WINDSHIELD WASHER
MOTOR
FRONT-ECU
• VEHICLE SPEED SENSOR
• COLUMN SWITCH
(WINDSHIELD
INTERMITTENT WIPER
VOLUME)
IGNITION SWITCH (ACC)
COLUMN SWITCH
(WINDSHIELD WIPER
WASHER SWITCH)
