The SRS includes the following components:
The airbag control unit monitors the readiness
of the electronic parts of the system whenever
the ignition switch or the operation mode is
under the following conditions. These include
all of the items listed above and all related
wiring.
[Except for vehicles equipped with the
F.A.S.T.-key]
The ignition switch is in the “ON” or
“START” position.
[Vehicles equipped with the F.A.S.T.-key]
The operation mode is in ON.
The airbags will operate under the same con-
ditions as the airbag control unit.
When the impact sensors detect a sufficient
front or side impact to deploy the airbag(s),
the appropriate airbag(s) will be deployed.
When the airbag control unit detects rollover
of the vehicle, curtain airbags will be
deployed.
When airbags deploy, some smoke is released
accompanied by a loud noise. The smoke is
not harmful, but do not intentionally inhale
the smoke as it may cause temporary irrita-
tion to people with respiratory problems.
An inflated airbag will deflate quickly, so you
may not even notice that the airbag was
inflated.
Airbag inflation does not prevent the driver
from seeing or being able to steer the vehicle,
and does not prevent people from leaving the
vehicle.
N00418600256
This vehicle is equipped with an event data
recorder (EDR).

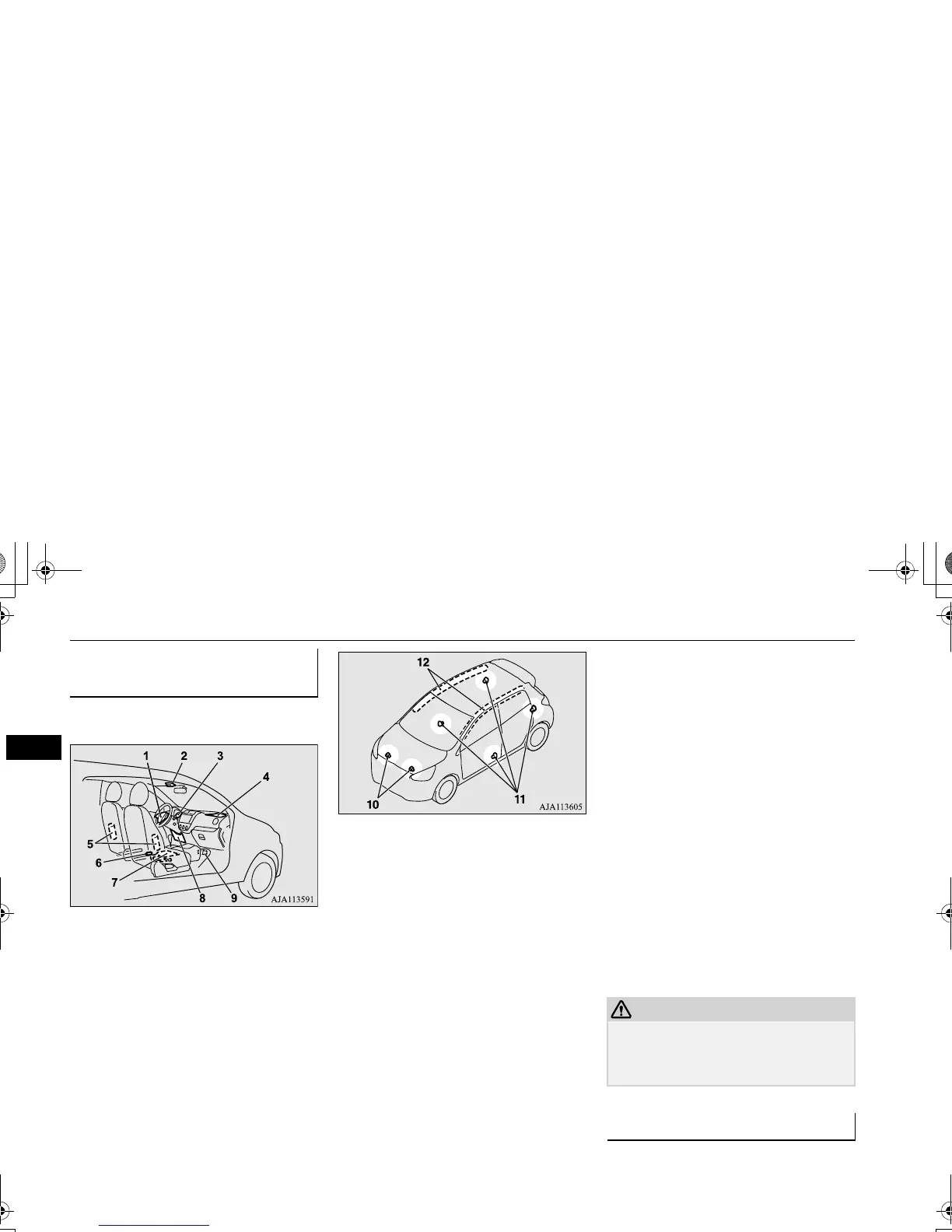

How the Supplemental
Restraint System works
1- Airbag module (Driver)
2- Passenger’s airbag off indicator
3- SRS warning light
4- Airbag module (Passenger)
5- Side airbag modules
6- Driver’s seat position sensor
7- Passenger’s seat occupant classifica-
tion sensor system
8- Airbag module (Driver’s knee)
9- Airbag control unit
10- Front impact sensors
11- Side impact sensors
12- Curtain airbag modules
To Next Page
