THROTTLE BODY
ENGINE OVERHAUL
11B-13
THROTTLE BODY
REMOVAL AND INSTALLATION
M1113009800347
AKC00007AB
4
7
8
4.0 ± 1.0 N·m
1
2
3
11 ± 1 N·m
9
10
5
9.5 ± 2.5 N·m
6
4.0 ± 1.0 N·m

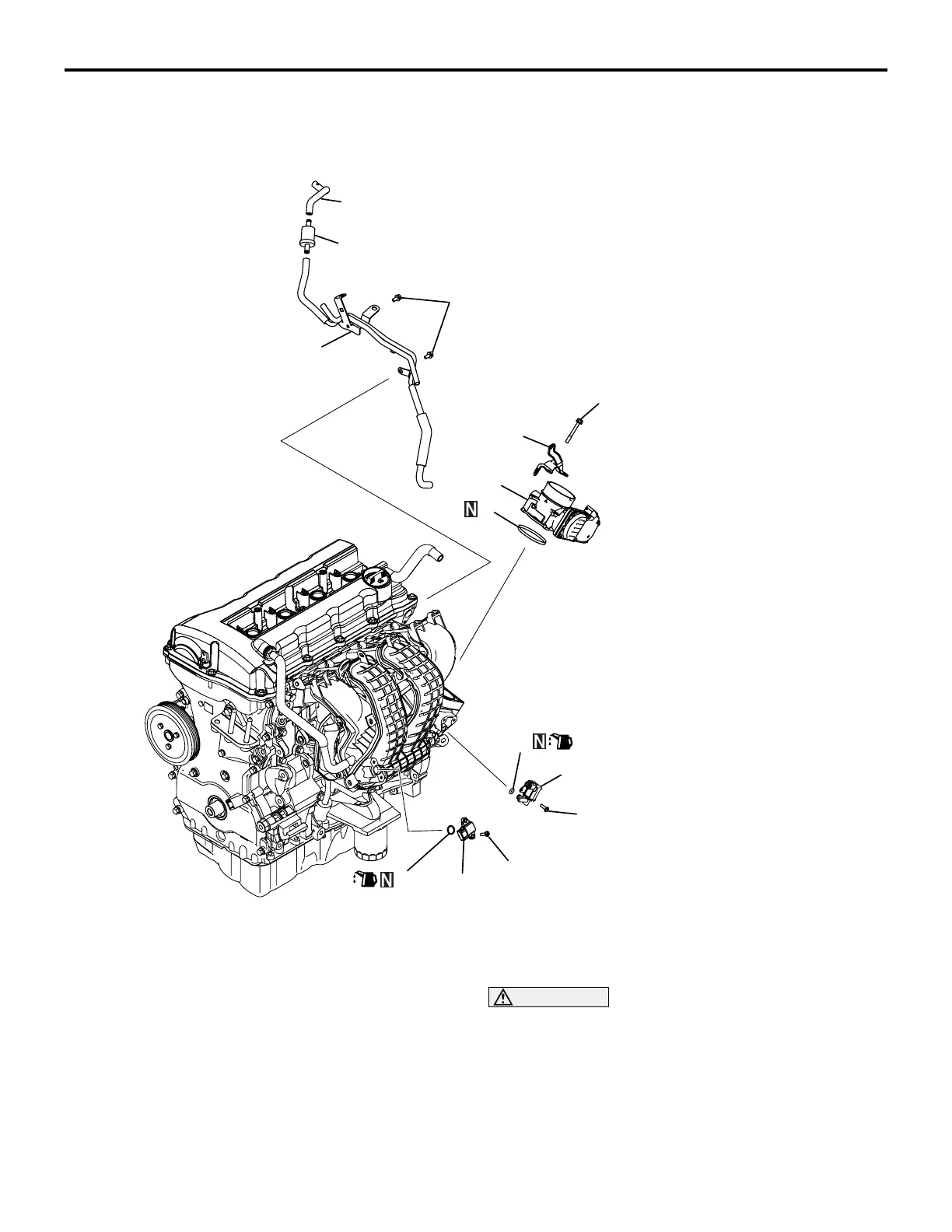

Removal steps
1. Vacuum pipe and hose
2. Purge hose
3. Chamber
4. Throttle body stay
5. Throttle body
6. Throttle body gasket
7. Solenoid valve
8. O-ring
>>A<<
9. Manifold absolute pressure (MAP)
sensor
10. O-ring
INSTALLATION SERVICE POINTS
>>A<< MANIFOLD ABSOLUTE PRES-
SURE (MAP) SENSOR INSTALLATION
CAUTION
• Install the manifold absolute pressure (MAP)
sensor, taking care not to give a shock to it.
• Do not use a manifold absolute pressure
(MAP) sensor that has fallen down.
To Next Page
