CAMSHAFT

ENGINE OVERHAUL

11B-32

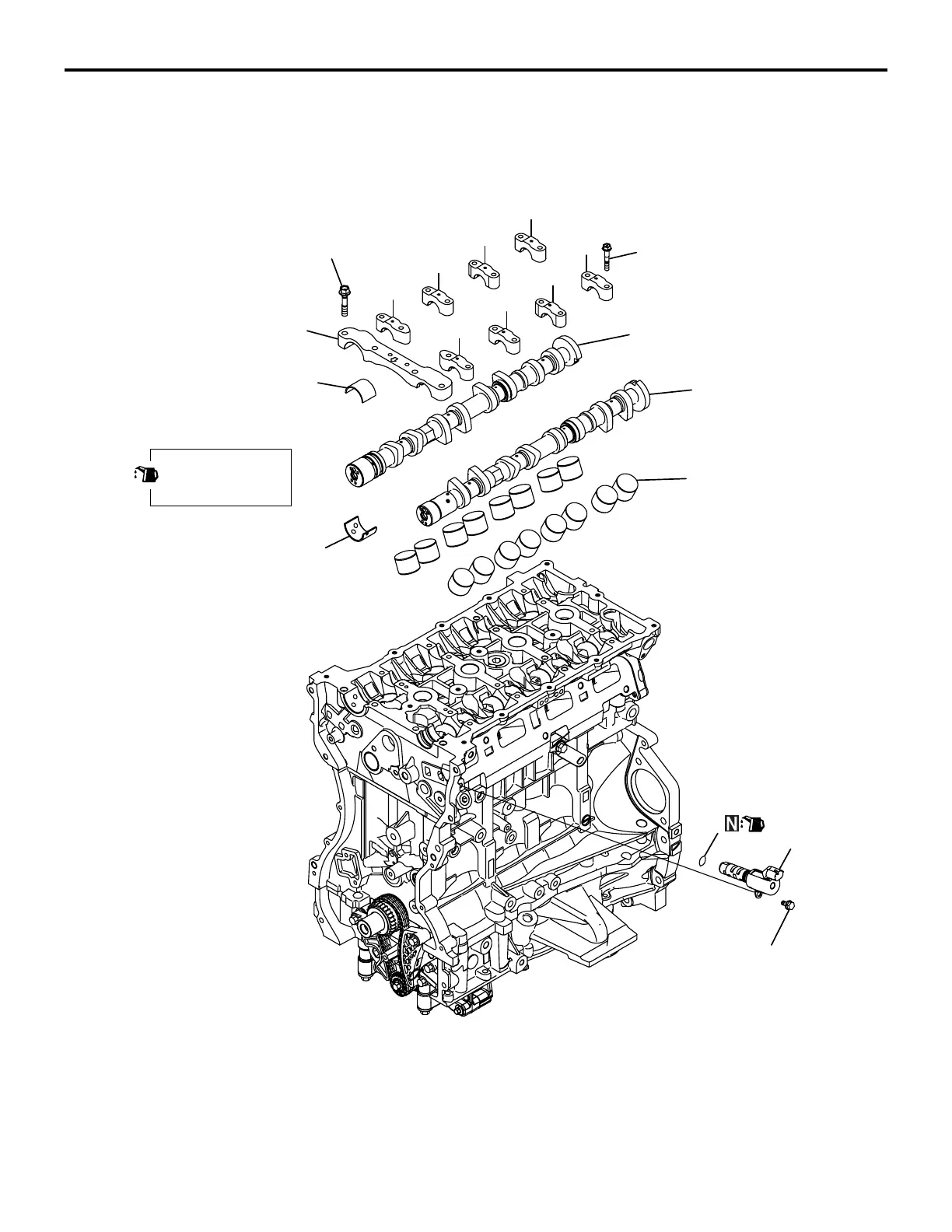

CAMSHAFT

REMOVAL AND INSTALLATION

M1113026900950

AKB00211

10 ± 2 N·m

17 ± 3 N·m

30 ± 2 N·m

12 ± 1 N·m

Apply engine oil to

all moving parts

before installation.

Removal steps

>>C<<

1. Oil feeder control valve (OCV) inlet

>>C<<

2. O-ring

<<A>> >>B<<

3. Front camshaft bearing cap

<<A>> >>B<<

4. Oil feeding camshaft bearing cap

<<A>> >>B<<

5. Camshaft bearing cap

<<A>> >>B<<

6. Thrust camshaft bearing cap

>>B<<

7. Bearing

>>B<<

8. Inlet camshaft

>>B<<

9. Exhaust camshaft

10. Bearing

<<B>> >>A<<

11. Valve tappet

Removal steps (Continued)
