OIL PAN AND TIMING CHAIN CASE
ENGINE OVERHAUL
11B-21

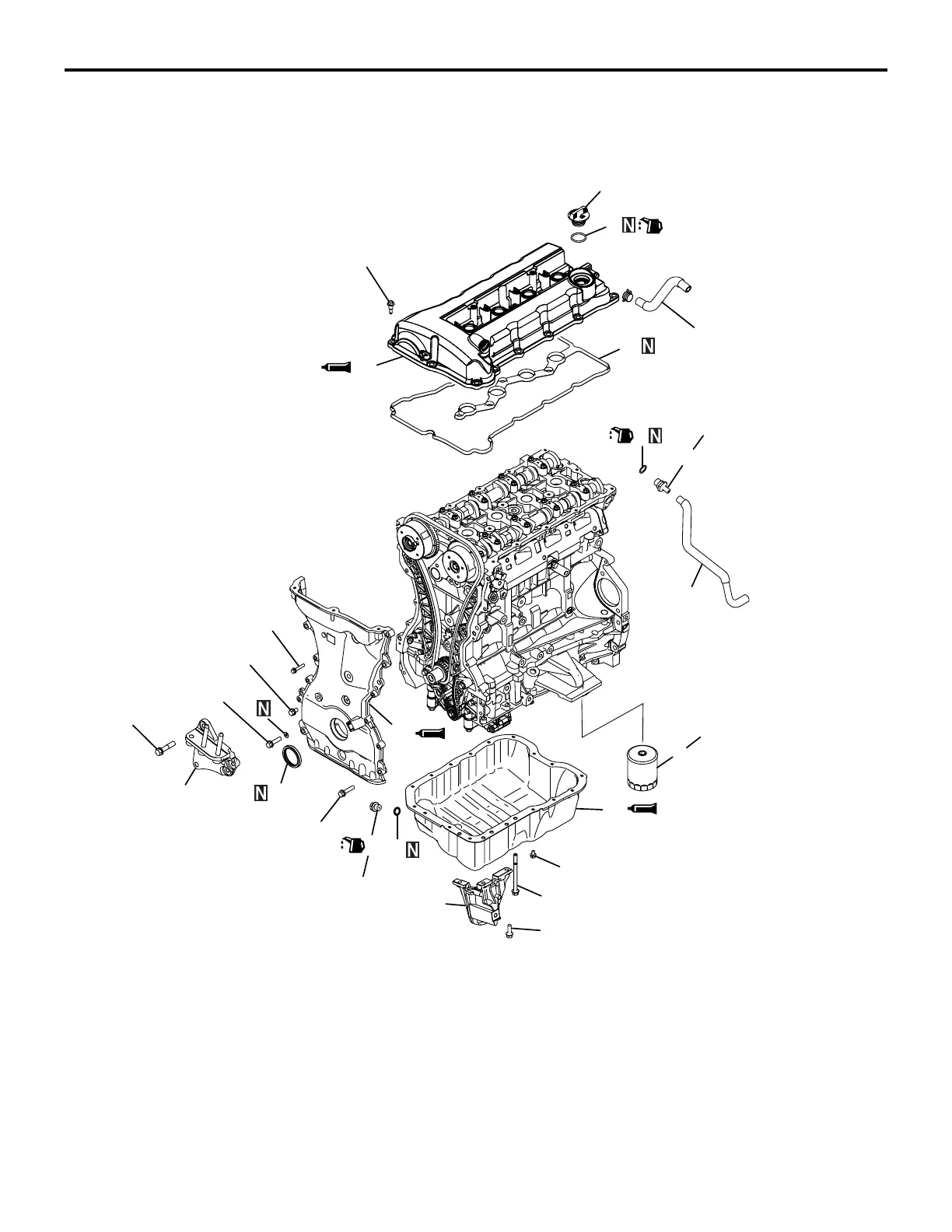

OIL PAN AND TIMING CHAIN CASE
REMOVAL AND INSTALLATION
M1113026301520
AKB00212
1
2
3
4
5
6
2.5 ± 0.4 N·m
11
10
3.0 ± 1.0 N·m 5.5 ± 0.5 N·m
48 ± 6 N·m
15
24 ± 4 N·m
8
7
39 ± 5 N·m
23 ± 6 N·m
12
10 ± 2 N·m
9
14 ± 2 N·m
13
10 ± 2 N·m
13 ± 1 N·m
10 ± 2 N·m
14
16
AC
31 ± 2 N·m
Removal steps
1. Breather hose
2. PCV hose
3. PCV valve
4. O-ring
5. Oil filler cap
6. O-ring
7. Oil drain plug
8. Oil drain plug gasket
<<A>> >>E<<
9. Oil filter
>>D<<
10. Cylinder head cover
11. Cylinder head cover gasket
12. Air compressor bracket
<<B>> >>C<<
13. Oil pan
14. Engine support bracket
>>B<<
15. Front oil seal
<<C>> >>A<<
16. Timing chain case
Removal steps (Continued)
To Next Page
