PISTON AND CONNECTING ROD

ENGINE OVERHAUL

11B-53

PISTON AND CONNECTING ROD

REMOVAL AND INSTALLATION

M1113008403903

AK603501

5.0 N·m

20 N·m +90

Apply engine oil to

all moving parts

before installation.

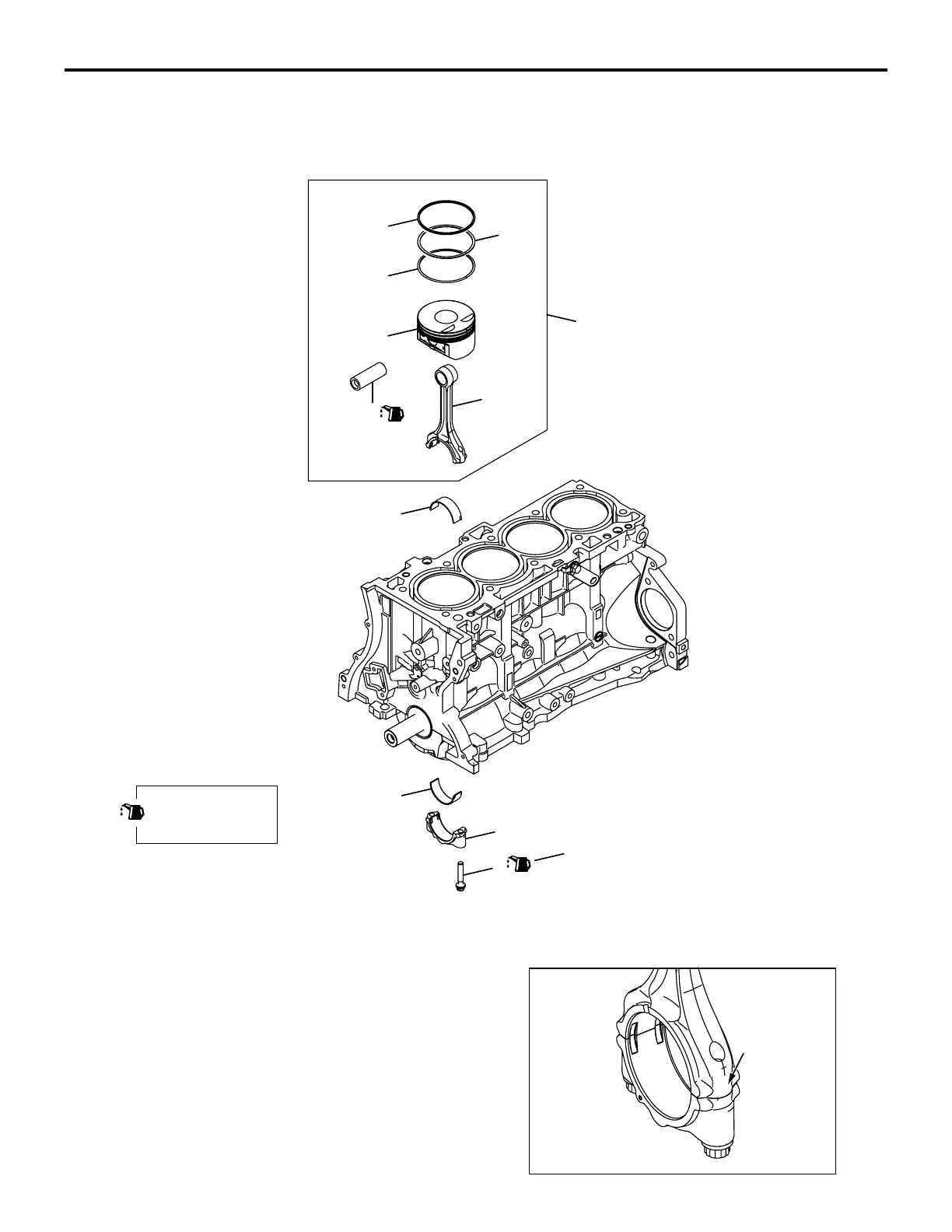

Removal sequence

>>G<<

1. Connecting rod cap bolt

<<A>> >>F<<

2. Connecting rod cap

>>E<<

3. Connecting rod bearing

>>E<<

4. Connecting rod bearing

>>D<<

5. Piston connecting rod assembly

>>C<<

6. Piston ring No. 1

>>C<<

7. Piston ring No. 2

>>B<<

8. Oil ring

<<B>> >>A<<

9. Piston pin

10. Piston

11. Connecting rod

REMOVAL SERVICE POINTS

<<A>> CONNECTING ROD REMOVAL

AK502531AD

Cylinder No.
