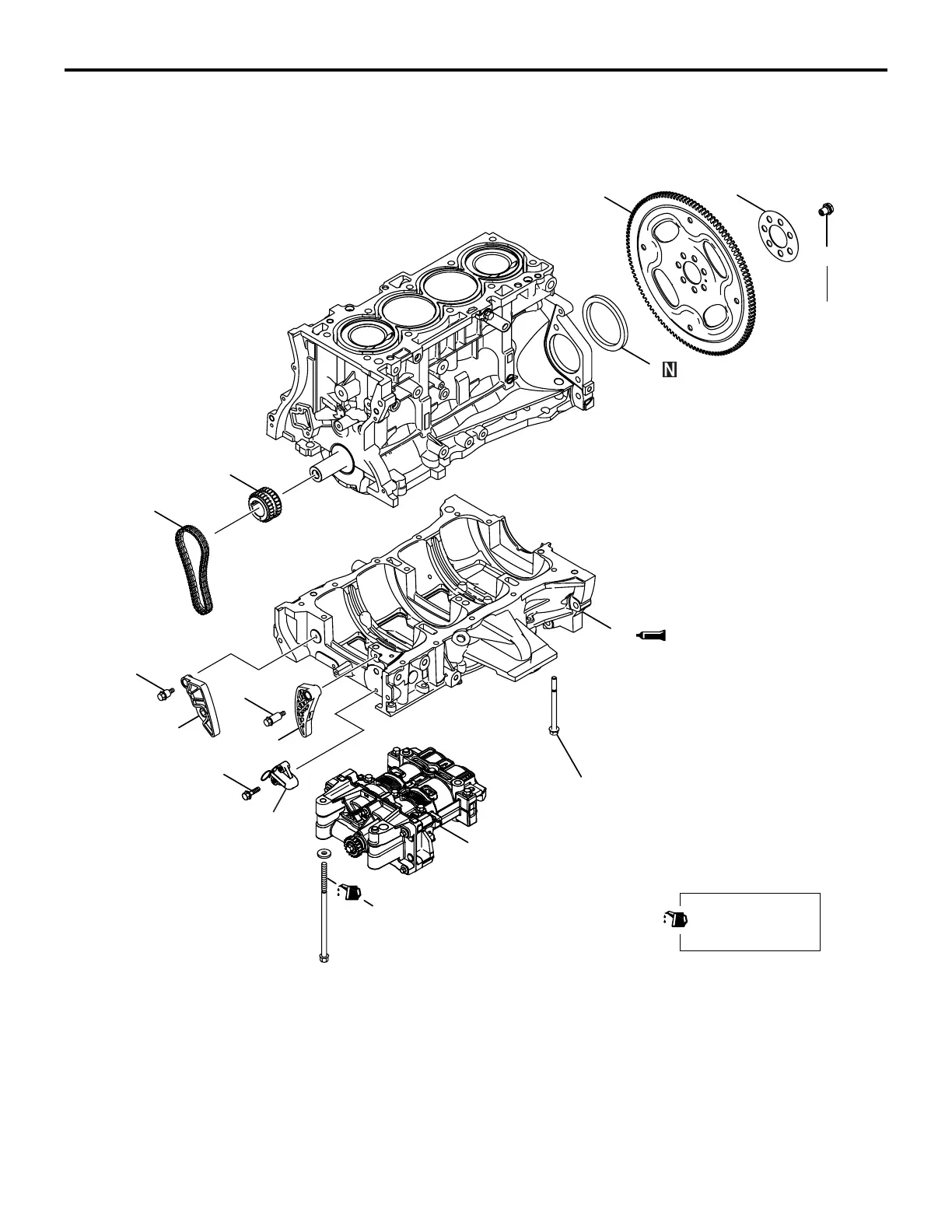

BALANCER CHAIN <4B12>
ENGINE OVERHAUL
11B-47
BALANCER CHAIN <4B12>
REMOVAL AND INSTALLATION
M1113032200358
AK603009
1
2
3
5
6
8
7
4
24 ± 2 N·m
9
10
11
10 ± 2 N·m
10 ± 2 N·m
10 ± 2 N·m
20 N·m 44 N·m 0 N·m 20 N·m +135˚
40 N·m
130 N·m
Apply engine oil to
all moving parts
before installation.
AI
Removal steps
<<A>> >>E<<
1. Drive plate bolt
2. Adapter plate
3. Drive plate
>>D<<
4. Rear oil seal
<<B>> >>C<<
5. Balancer shaft chain tensioner
6. Balancer shaft tensioner lever
7. Balancer shaft chain guide
<<B>> >>B<<
8. Balancer shaft module
<<B>> >>B<<
9. Balancer chain
<<B>> >>B<<
10.Crankshaft sprocket
<<C>> >>A<<
11. Ladder frame
Removal steps (Continued)
