Mitsubishi OUTLANDER Service Manual

INLET MANIFOLD AND FUEL SYSTEM
ENGINE OVERHAUL
11B-14
INLET MANIFOLD AND FUEL SYSTEM
REMOVAL AND INSTALLATION
M1113032501169
AKB00727
3
4
6
8
9
10
11
5
7
1
2
19
20
21
20 ± 2 N·m
22
10 ± 2 N·m
10 ± 2 N·m
12
16
17
18
AB
20 ± 2 N·m
3.5 ± 1.5
20 ± 2 N·m
13
14
20 ± 2 N·m
20 ± 2 N·m
3.5 ± 1.5
20 ± 2 N·m
3.5 ± 1.5
20 ± 2 N·m
3.5 ± 1.5
20 ± 2 N·m
3.5 ± 1.5
20 ± 2 N·m
15

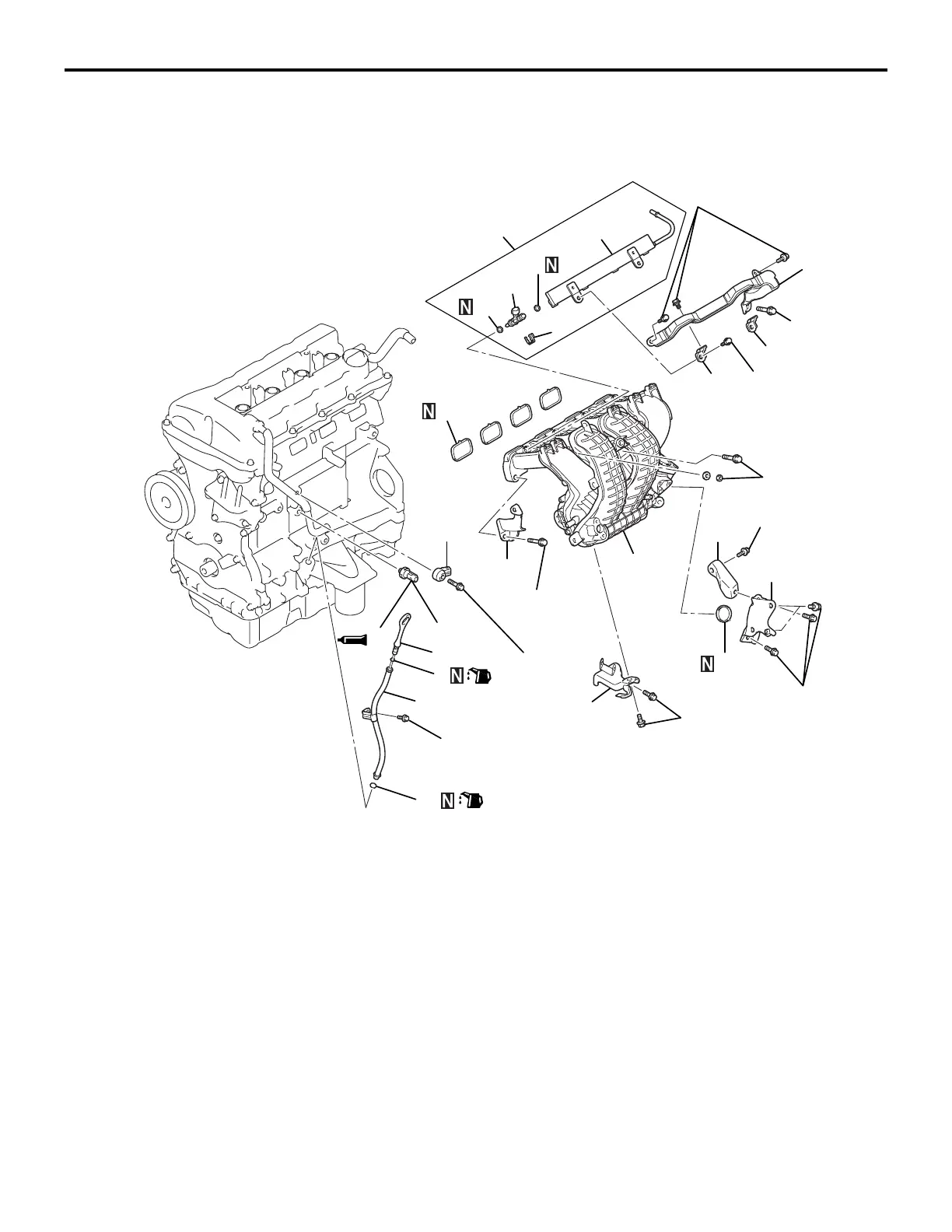

Removal sequence
1. Oil level gauge rod
2. O-ring
>>G<<
3. Injector protector rear
>>G<<
4. Bracket
>>G<<
5. Bracket
>>G<<
6. Delivery pipe assembly
>>F<<
7. Injection support
8. O-ring
>>F<<
9. Injector
>>E<<
10. O-ring
11. Delivery pipe
>>D<<
12. Inlet manifold stay
13. Inlet manifold stay B
14. Inlet manifold stay C
15. EGR gasket
16. Injector protector front
>>C<<
17. Inlet manifold
18. Inlet manifold gasket
19. Oil level gauge guide
20. O-ring
>>B<<
21. Detonation sensor
>>A<<
22. Oil pressure switch
Removal sequence (Continued)
