Trailer towing
E00610000518
In order to tow a trailer with your vehicle, when hav-
ing a trailer towing device mounted that meets all
relevant regulations in your area, consult a
MITSUBISHI MOTORS Authorized Service Point.
The regulations concerning the towing of a trailer
may differ from country to country. You are ad-
vised to obey the regulations in each area.
CAUTION
l
Danger of Accident!
A towing bar should be fitted according
to MITSUBISHI MOTORS guidelines.
Maximum towable weight with brake
and maximum trailer-nose weight
Never exceed the maximum towable weight with
brake and the maximum trailer-nose weight as lis-
ted in the specifications.
(Refer to page 9-08.)
If you tow a trailer at an altitude of more than
1,000 m above sea-level, reduce your weight by
10 % of the gross combination weight for every in-
crease of 1,000 m above sea-level, as the engine out-
put is lowered owing to decrease in atmospheric
pressure.

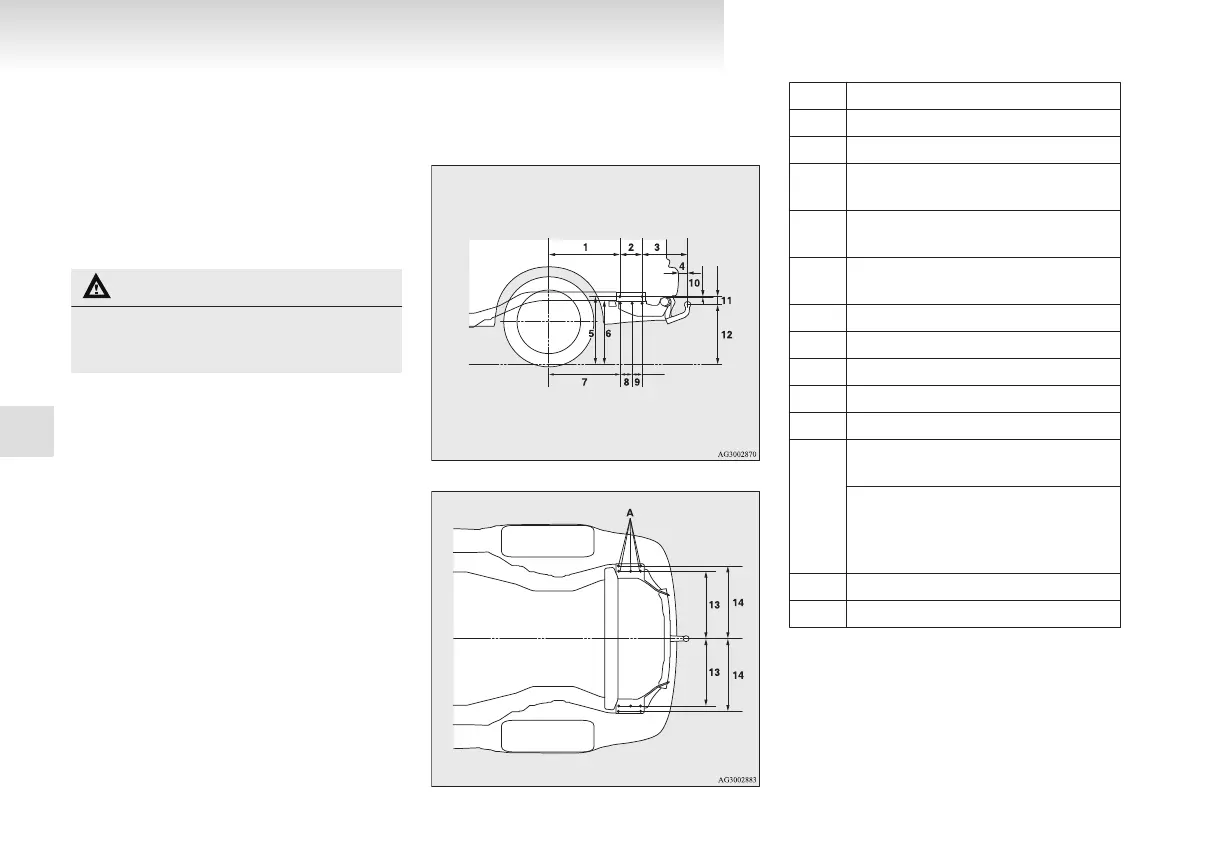

Towing bar mounting specifications
See the following table for fixing points (A) for the
towing bar.
1 553 mm
2 171 mm
3 356 mm
4
68 mm
*1
,
*2
, 70 mm
*3
(at laden condition)
5
540 mm
*3
,
*1
, 562 mm
*2
(at kerb weight condition)
6
504 mm
*3
,
*1
, 525 mm
*2
(at kerb weight condition)
7 555 mm
8 92 mm
9 77 mm
10 2 mm
11 62 mm
12
482 mm
*3
,
*1
, 507 mm
*2
(at kerb weight condition)
387 mm to 405 mm
*3
,
361 mm to 389 mm
*1
,
363 mm to 382 mm
*2
(at laden condition)
13 528 mm
14 560 mm
*1
: Vehicles equipped with heavy duty suspension
*2
: Vehicles equipped with high ground suspension
*3
: Vehicles equipped with normal suspension
