Fusible links
E01002900564
The fusible links will melt to prevent a fire if a
large current attempts to flow through certain elec-
trical systems.
In case of a melted fusible link, we recommend
you to have your vehicle inspected.
For the fusible links, please refer to “Fuse load ca-
pacity” on page 8-20.
WARNING
l
Fusible links must not be replaced by any
other device. Failing to fit the correct fusi-
ble link may result in fire in the vehicle,
property destruction and serious or fatal
injuries at any time.
Fuses
E01003002090
Fuse block location
To prevent damage to the electrical system due to
shortcircuiting or overloading, each individual cir-
cuit is provided with a fuse.
There are fuse blocks in the passenger compart-
ment and in the engine compartment.

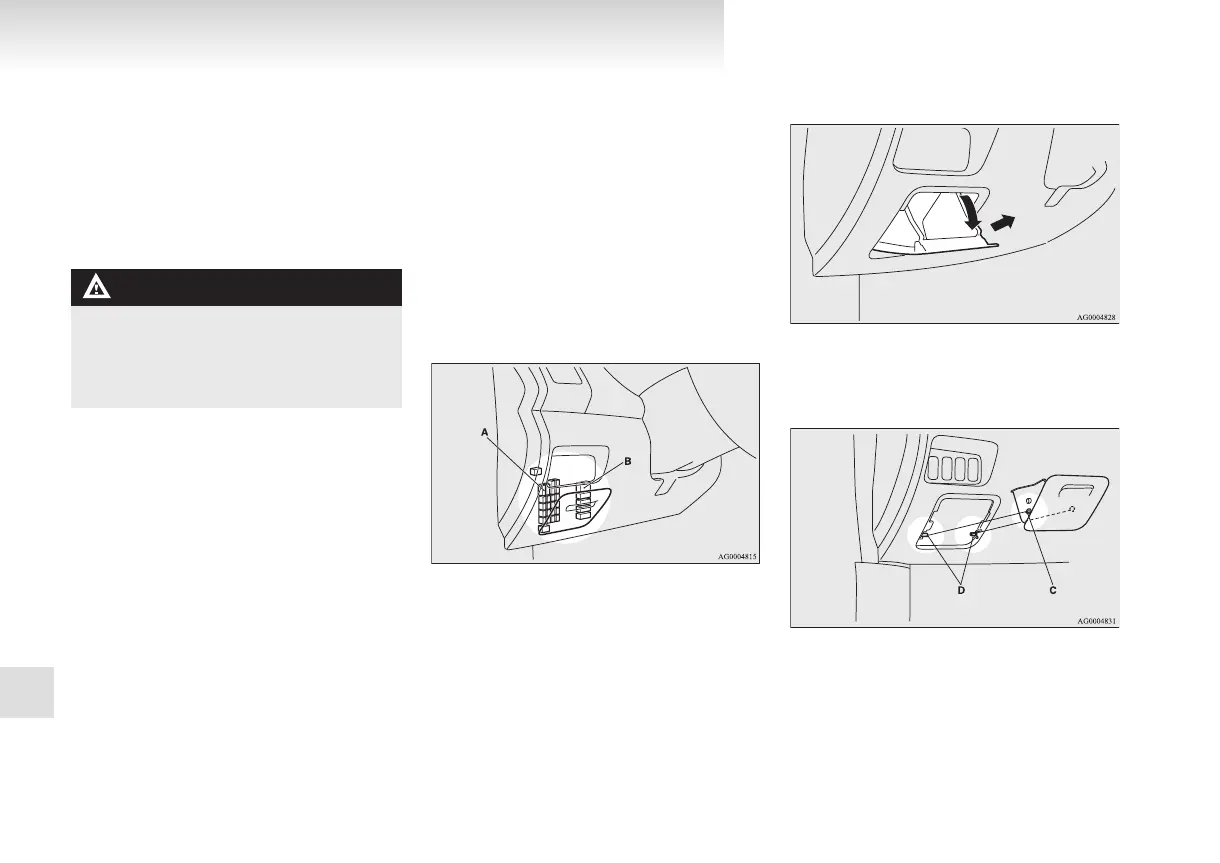

Passenger compartment (LHD vehicles)
The fuse blocks in the passenger compartment are
located behind the personal box in front of the driv-
er’s seat at the position shown in the illustration.
A- Main fuse block
B- Sub fuse block
1. Open the personal box and pull to remove it.
2. To put back the personal box, line up the per-
sonal box hook (C) with the clamp (D) on
the instrument panel and push the box back in.
Maintenance
8-18
8
