6
FUNCTIONS
6.11 Monitor Function
6.11.1 Monitor condition setting
6 - 47
1
Overview
2
Performance
Specification
3
Sequence Program
Configuration and
Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files
Handled by CPU Module
6
Functions
7
Communication using
built-in Ethernet ports of
CPU module
8
Communication with
Intelligent Function
Module
6.11.1 Monitor condition settingNote10
Set the monitor condition when executing monitor under the specified condition.
Note6.10
(1) Monitor execution condition setting for ladder monitor
Choose [Online] [Monitor] [Monitor condition setup] to open the Monitor
Condition dialog box. The following shows an example in which to start a monitoring
operation at the leading edge of Y70.
Note10

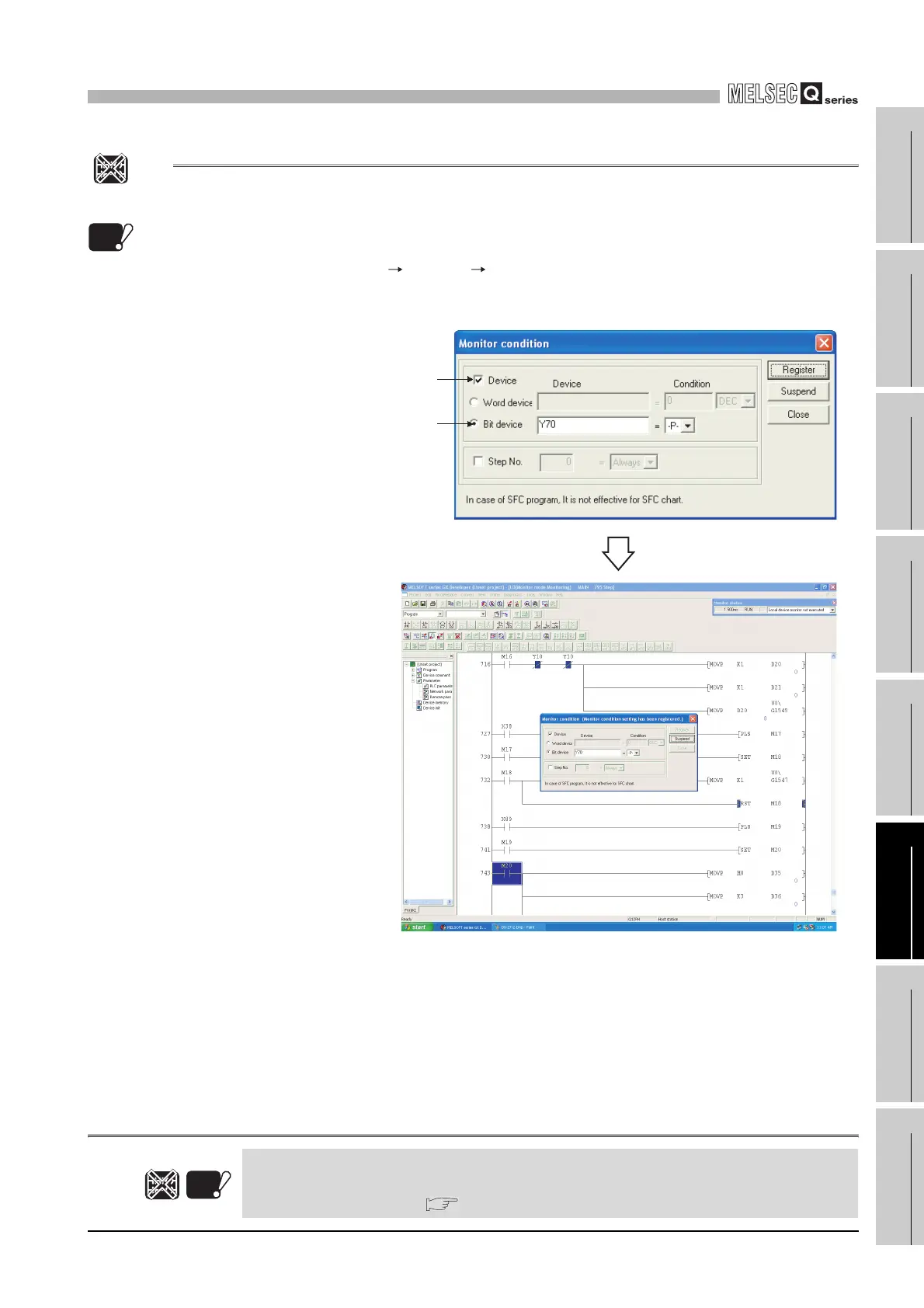

Figure 6.28 Monitor condition screen
The Basic model QCPU cannot execute monitor with monitor condition setting.
When setting the monitor condition in the Universal model QCPU, check the versions of CPU
module and GX Developer.( Appendix 4.5)
Basic
Universal
UD
Note6.10
Note6.10
Basic
Universal
UD
Note6.10
Note6.10
Select when monitoring
by setting the contents
of the device
Select when monitoring
by setting Step No.
When condition is
enabled, monitor
is executed
(operation status
when condition is
enabled is
displayed).
To Next Page
