10.11 Interrupt pointer (I)
10 - 98
9
Parameters
10
Device Explanation
11
CPU Module Processing
Time
12
Procedure for Writing
Program to CPU ModuleAppendicesIndex
10.11 Interrupt pointer (I)
(1) Definition
Interrupt pointers are used as labels at the beginning of interrupt programs.
The interrupt pointers can be used in all running programs.
(2) Number of available interrupt pointer points
Table10.20 indicates the number of available interrupt pointer points.

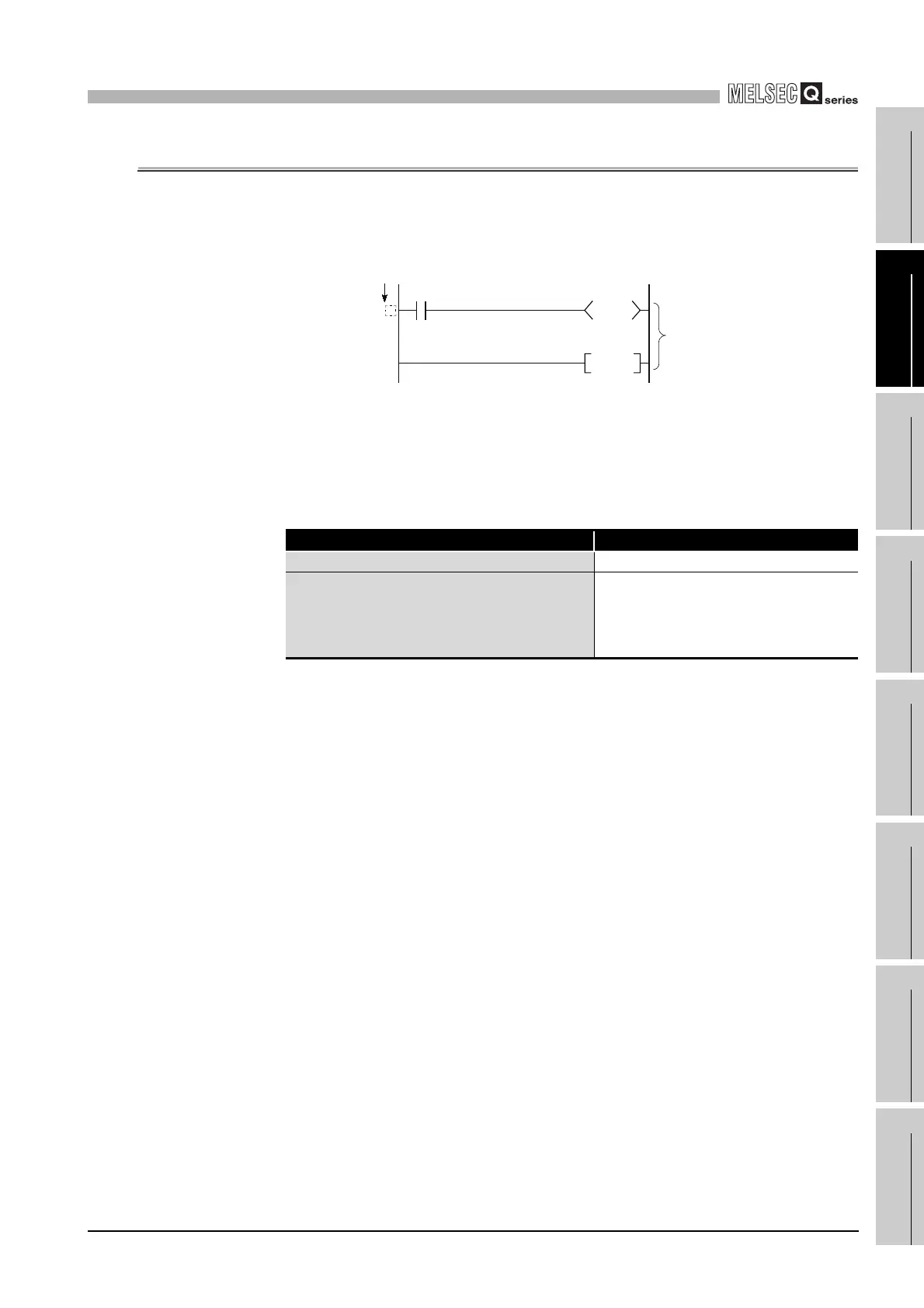

Figure 10.90 Interrupt pointer
Table10.20 Number of available interrupt pointer points of each CPU module
CPU module Number of points
Basic model QCPU 128 points (I0 to 127)
High Performance model QCPU
Process CPU
Redundant CPU
Universal model QCPU
256 points (I0 to 255)
Interrupt pointer (interrupt program label)
Interrupt program
IRET
I
