Appendix 5 Method of replacing High Performance model QCPU with Universal model QCPU
App - 162
9
Parameters
10
Device Explanation
11
CPU Module Processing Time
12
Procedure for Writing Program to CPU ModuleAppendicesIndex

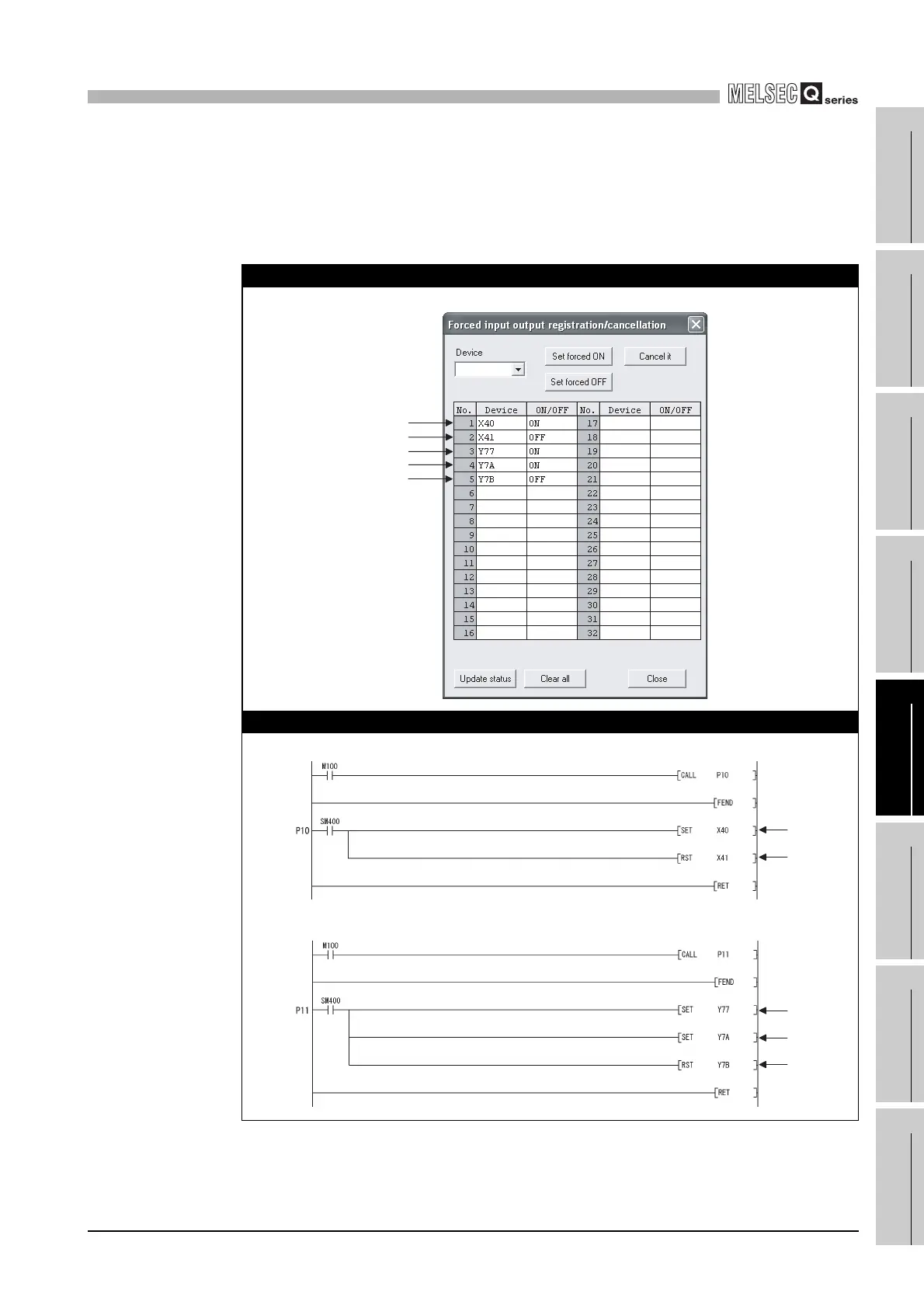

Example) Forcibly turning X40, X77, and X7A ON, and X41 and Y7B OFF
The programs, "SETX" and "SETY", turns ON or OFF the X and Y devices, which
have been registered for forced ON/OFF using the forced ON/OFF function of
external I/O, at each scan using the SET and RST instructions.
High Performance model QCPU
Universal model QCPU
• Program example of “SETX”
• Program example of “SETY”
(1)
(2)
(3)
(4)
(5)
(1)
(2)
(3)
(4)
(5)
