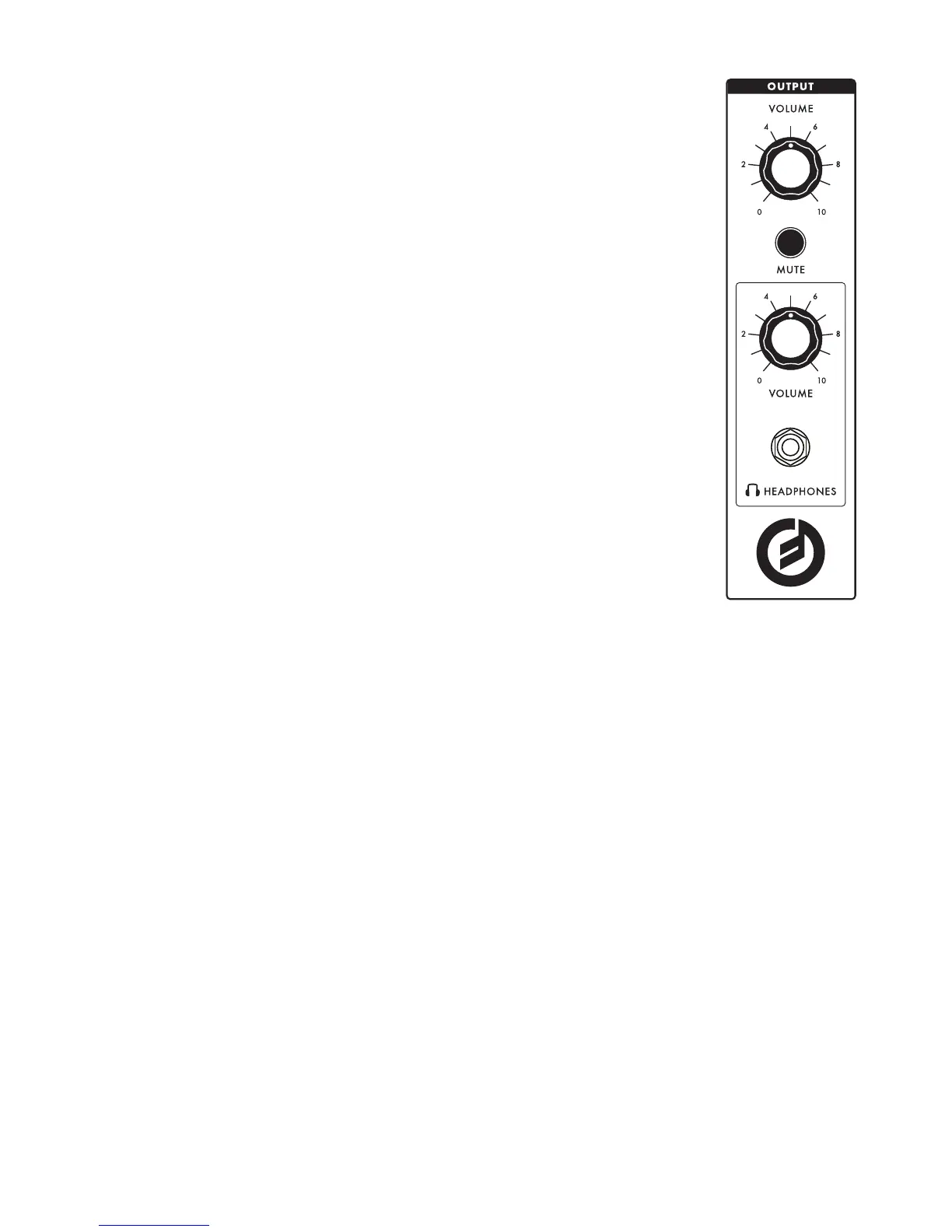

OUTPUT SECTION
VOLUME
This knob is the main volume control for the AUDIO OUT jack on the left side of
the Sub 37. Rotating the control fully clockwise produces the maximum output.
Rotating the control fully counterclockwise silences the Sub 37. A volume setting
can be stored with each preset. The PRESET VOLUME parameter is located in
the PRESET EDIT menu. Learn more about this on page 42. If it is set to OFF the
volume remains at whatever value the knob is left at regardless of which preset
is selected.
NOTE: The PRESET VOLUME parameter is independent of the MASTER VOLUME knob.
MUTE
This button controls the audio that appears at the AUDIO OUT jack. This switch
has no effect on the HEADPHONES jack. This arrangement allows you to monitor
and adjust the sound of the Sub 37 using headphones, while silencing the signal
at the AUDIO OUT jack. You can also use the MUTE button to turn off the output
if you are using the Sub 37 as a controller and wish to control external gear
without hearing the Sub 37. The output is muted when this button is illuminated.
HEADPHONES VOLUME
This control balances the level of the headphones jack with the main VOLUME
setting. If you change the level of the main VOLUME knob, you will hear a similar
change in the headphones volume.
HEADPHONES
The HEADPHONE jack is a 1/4” TRS headphone output for use with standard headphones. Although it
will drive both sides of the headphones it is still a monaural signal as it is identical on both sides.
