UHF Band 1 Theory of Operation: Synthesizer 4-5
The Frequency Generation Circuitry is composed of two main ICs:
Fractional-N synthesizer (U201)
VCO/Buffer IC (U241)
Designed in conjunction to maximize compatibility, the two ICs provide many of the functions that
normally would require additional circuitry. The synthesizer block diagram illustrates the interconnect
and support circuitry used in the region. Refer to the relevant schematics for the reference
designators.
The synthesizer is powered by regulated 5 V and 3.3 V which come from U247 and U248
respectively. The synthesizer in turn generates a super-filtered 4.5 V which powers U241.
In addition to the VCO, the synthesizer must interface with the logic and ASFIC circuitry.
Programming for the synthesizer is accomplished through the data, clock and chip select lines from
the microprocessor. A 3.3 V dc signal from the synthesizer lock detect line indicates to the
microprocessor that the synthesizer is locked.
Transmit modulation from the ASFIC is supplied to pin 10 of U201. Internally the audio is digitized by
the Fractional-N and applied to the loop divider to provide the low-port modulation. The audio runs
through an internal attenuator for modulation balancing purposes before going out to the VCO.
4.4 Synthesizer
(Refer to UHF Synthesizer Schematic Diagram on page 9-86.)

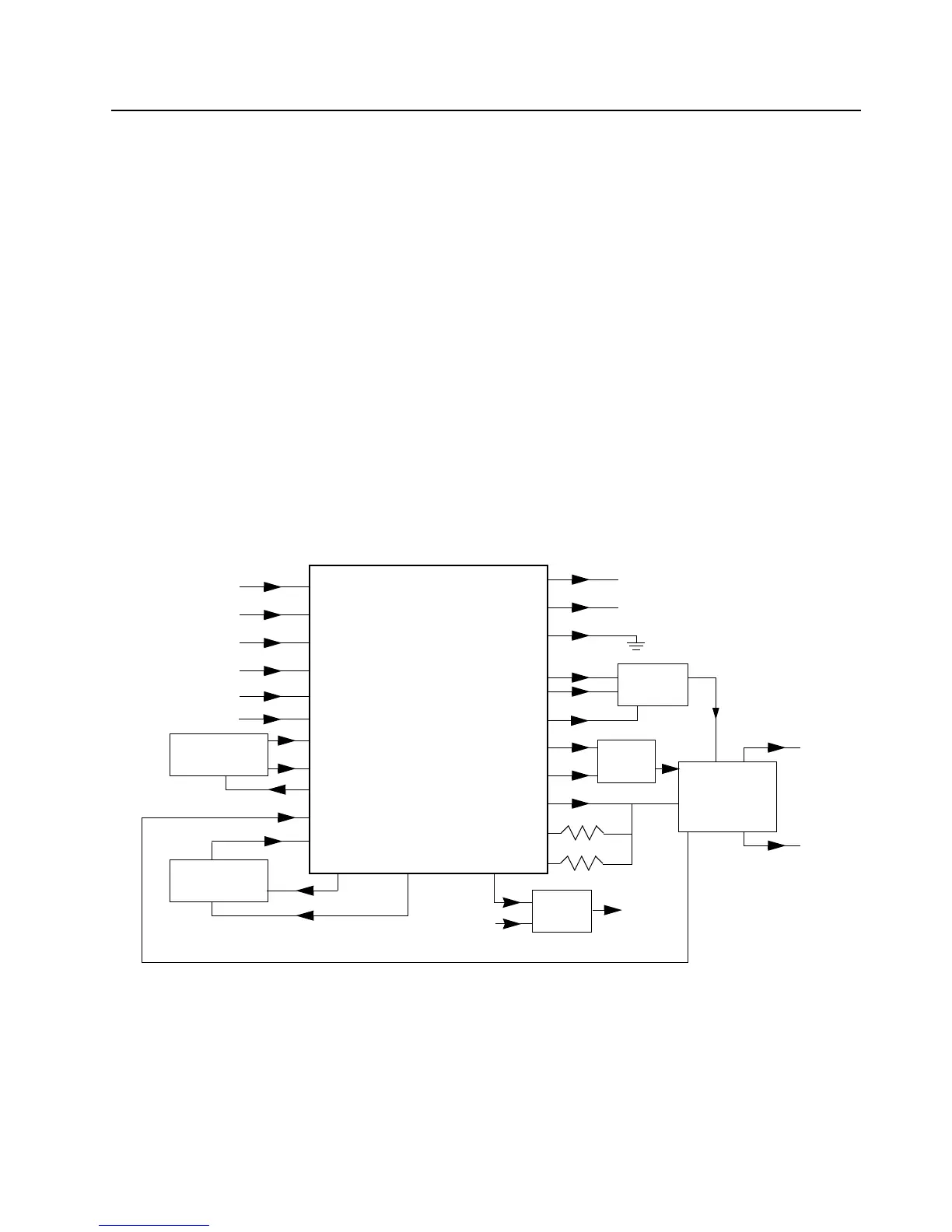

Figure 4-4. Synthesizer Block Diagram
The Fractional-N Synthesizer uses a 16.8MHz crystal (FL201) to provide a reference for the system.
The LVFractN IC (U201) further divides this to 2.1 MHz, 2.225 MHz, and 2.4 MHz as reference
frequencies. Together with C206, C207, C208, R204 and CR203, they build up the reference
oscillator which is capable of 2.5ppm stability over temperatures of -30 to 85°C. It also provides 16.8
MHz at pin 19 of U201 to be used by the ASFIC.
DATA
CLK
CEX
MODIN
V
CC
, DC5V
XTAL1
XTAL2
WARP
PREIN
VCP
REFERENCE
OSCILLATOR
VOLTAGE
MULTIPLIER
VOLTAGE
CONTROLLED
OSCILLATOR
2-POLE
LOOP
FILTER
DATA (U409 PIN 100)
CLOCK (U409 PIN 1)
CSX (U409 PIN 2)
M
OD IN (U404 PIN 40)
+5V (U247 PIN 4)
7
8
9
10
13, 30
23
24
25
32
47
VMULT2 VMULT1
BIAS1
SFOUT
AUX3
AUX4
IADAPT
IOUT
GND
FREFOUT
LOCK
4
19
6, 22, 23, 24
43
45
3
2
28
14
15
40
FILTERED 5V
STEERING
LINE
LOCK (U409 PIN 56)
PRESCALER IN
LO RF INJECTION
TX RF INJECTION
(1ST STAGE OF P
A
FREF (U201 PIN 21 & U404 PIN 34)
39
BIAS2
41
DUAL
TRANSIS
DUAL
TRANSIS-
48
5V
R5
5, 20, 34, 36
(U248 PIN 5)
AUX1
V
DD
, 3.3V
MODOUT
U251
LOW VOLTAGE
FRACTIONAL-N
SYNTHESIZER
TORS
TORS
