MS-7176 ATX Mainboard
6-10

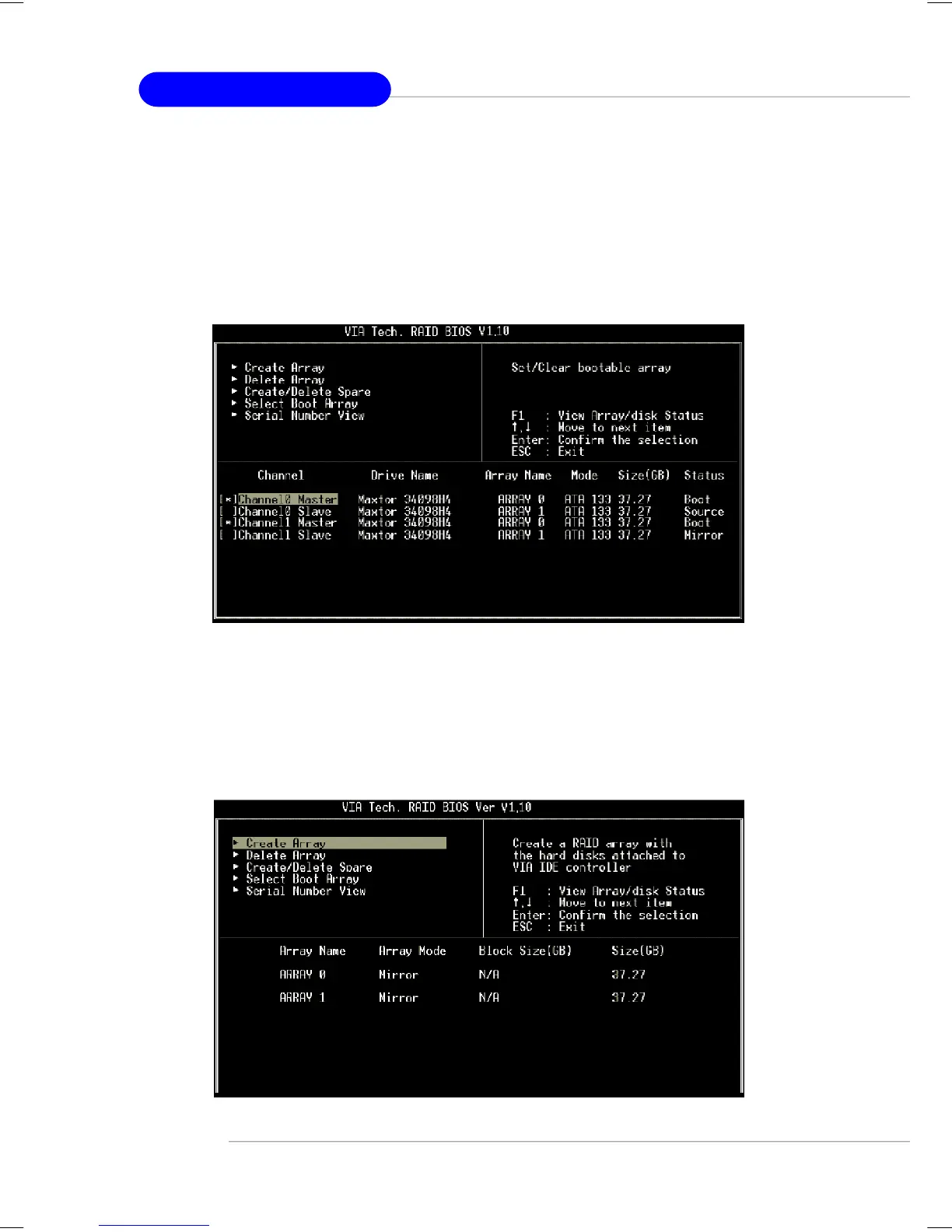

View Serial Number of Hard Drive
Highlight Serial Number View and press <Enter>. Use arrow key to select
a drive, the selected drive’s serial number can be viewed in the last column. The
serial number is assigned by the disk drive manufacturer.
Press the F1 key to show the array status on the lower screen. If there are
no disk arrays then nothing will be displayed on the screen.
Select Boot Array
User can select a disk array as boot device if user wants to boot operating
system from an array. Boot disk array cannot be selected if the operating system
does not boot from the disk array. Highlight the Select Boot Array item; press
<Enter> and the channel column will be activated. Then highlight the target disk array
and press <Enter>. If user selects a disk array that has a boot mark and press
<Enter>, its boot setting will be canceled.
