MS-7176 ATX Mainboard
H/W Monitor

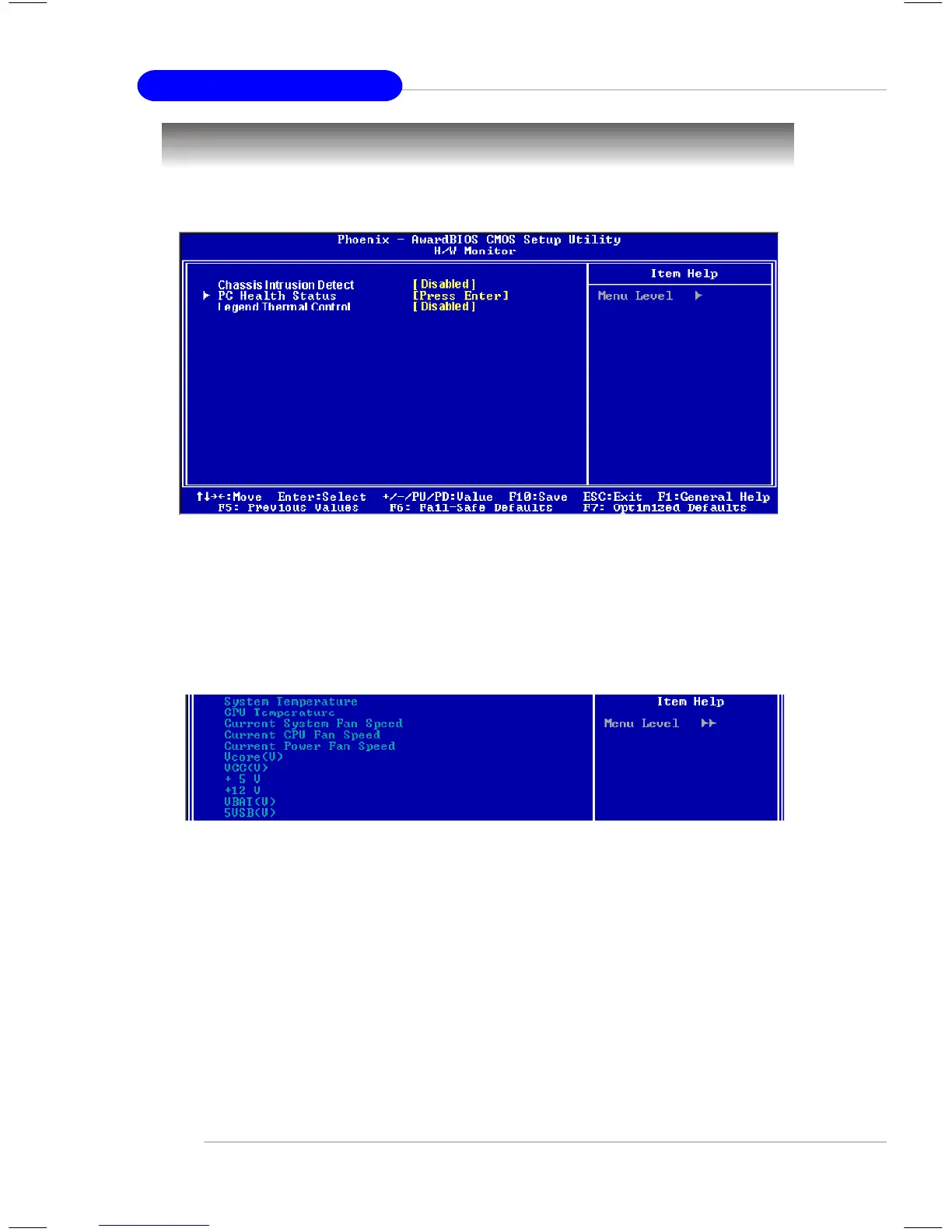

This section shows the status of your CPU, fan, overall system status, etc. Monitor
function is available only if there is hardware monitoring mechanism onboard.
Chassis Intrusion Detect
The field enables or disables the feature of recording the chassis intrusion status and
issuing a warning message if the chassis is once opened. To clear the warning
message, set the field to [Reset]. The setting of the field will automatically return to
[Enabled] later. Setting options: [Enabled], [Reset], [Disabled].
PC Health Status
Press <Enter> and the following sub-menu appears.
System/ CPU Temperature, Current System/CPU/Power Fan Speed, Vcore
(V), +5 V, +12 V, VBAT(V), 5VSB (V).
These items display the current status of all of the monitored hardware devices/
components such as CPU voltages, temperatures and all fans’ speeds.
Chassis Intrusion Detect
This field can control the fan speed automatically depending on the current tempera-
ture to keep it with in a specific range.
