MSI A320M PRO-VD PLUS User Manual

12
󶳧󱝾󴘭󸵅

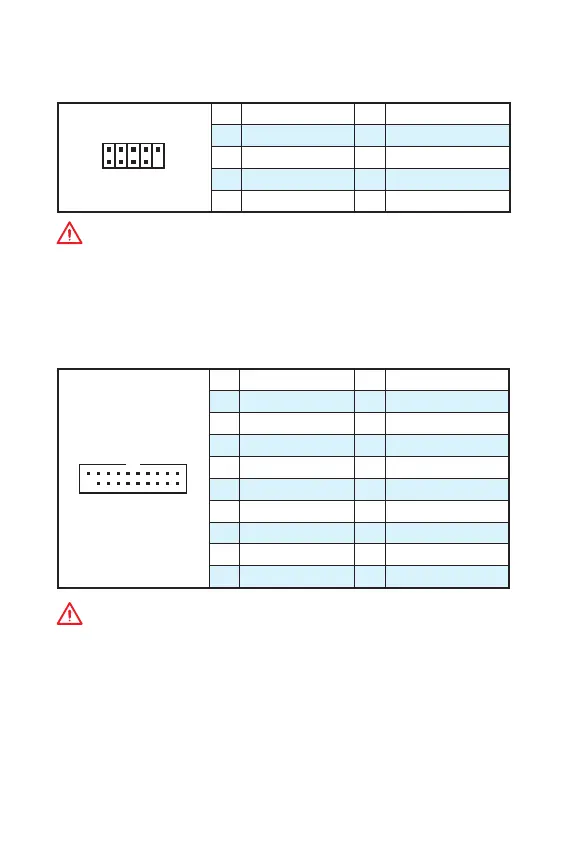

JUSB3: USB 3.1 Gen1 󳰛󱿂
󴦝󳰚󱿂󱭩󸚞󳜁󸴗󳰚󱴙󶷉󹪸󴋄󱘔󵵙 USB 3.1 Gen1 󶔏󱿂
1 10
1120
1 Power 11 USB2.0+
2 USB3_RX_DN 12 USB2.0-
3 USB3_RX_DP 13 Ground
4 Ground 14 USB3_TX_C_DP
5 USB3_TX_C_DN 15 USB3_TX_C_DN
6 USB3_TX_C_DP 16 Ground
7 Ground 17 USB3_RX_DP
8 USB2.0- 18 USB3_RX_DN
9 USB2.0+ 19 Power
10 NC 20 No Pin
󴱅󳞲
󸛝󴱅󳞲󽘜󵫰󴻣󲃅󳰚󲔲󹙰󷄤󳖔󹲃󴦜󶁢󸴗󳰚󱝥󸺺󱭾󱿔󷃫󵵙󳮡󲕢
JUSB1~2: USB 2.0 󳰛󱿂
󸴐󱛩󳰚󱿂󱭩󸚞󳜁󸴗󳰚󱴙󶷉󹪸󴋄󱘔󵵙 USB 2.0 󶔏󱿂
1
2 10
9
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC
󴱅󳞲
y 󸛝󴱅󳞲󽘜VCC 󲃅 󳰚󲔲󹙰󷄤󳖔󹲃󴦜󶁢󸴗󳰚󱝥󸺺󱭾󱿔󷃫󵵙󳮡󲕢
y 󱙚󱛌󲺽󳜁󵵙 iPad󽘜iPhone 󲃅 iPod 󸶲󸳣 USB 󶔏󱿂󸴔󸀅󱭯󵫰󽘜󸛝󲶾󸃔 MSI
®
SUPER
CHARGER 󲷫󵫞󶌱󳍙

MSI A320M PRO-VD PLUS Specifications

General

Form Factor	Micro ATX
Chipset	AMD A320
CPU Socket	AM4
Memory Slots	2 x DIMM
Maximum Memory	32GB
Storage Interface	4 x SATA 6Gb/s
LAN	Realtek 8111H Gigabit LAN
Memory Speed	DDR4 3200+(OC) MHz
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
USB Ports	6 x USB 2.0 (2 rear, 4 front)
Audio	Realtek ALC887, 7.1-Channel High Definition Audio
Video Outputs	1 x VGA
