MSI A320M PRO-VD PLUS User Manual

11
󴘭󸉕 󴘭󸉕
ATX_PWR1CPU_PWR1: 󹧖󴻢
ATX󹧖󴻢󳰙󶪓
24
131
12

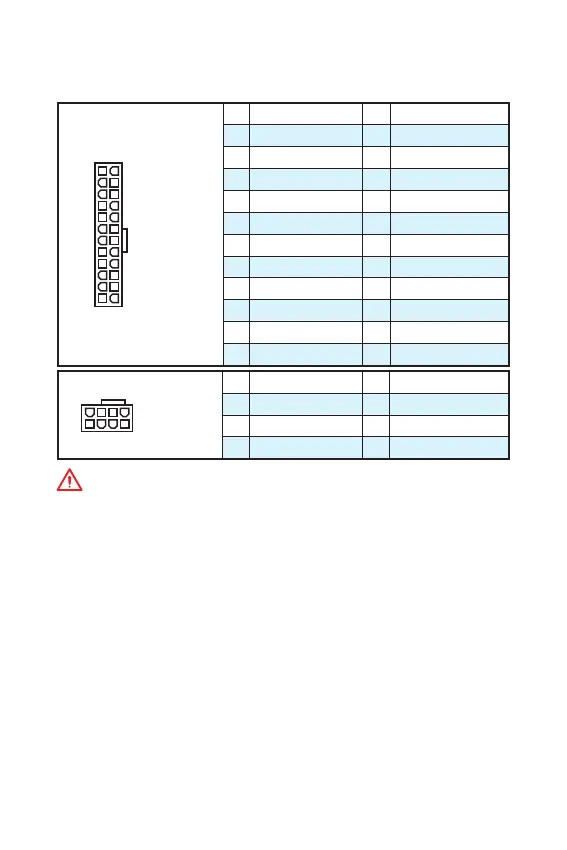

ATX_PWR1
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS-ON#
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWR OK 20 Res
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
5
4
1
8
CPU_PWR1
1 Ground 5 +12V
2 Ground 6 +12V
3 Ground 7 +12V
4 Ground 8 +12V
󴱄󳞱
󲶿󲷢󱷼󱠓󶃘󲷭󾇄󹧗󴻣󸺁󱲸ATX󹧗󴻣
󳰛󶪔󶃘󸑃󱘕

MSI A320M PRO-VD PLUS Specifications

General

Form Factor	Micro ATX
Chipset	AMD A320
CPU Socket	AM4
Memory Slots	2 x DIMM
Maximum Memory	32GB
Storage Interface	4 x SATA 6Gb/s
LAN	Realtek 8111H Gigabit LAN
Memory Speed	DDR4 3200+(OC) MHz
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
USB Ports	6 x USB 2.0 (2 rear, 4 front)
Audio	Realtek ALC887, 7.1-Channel High Definition Audio
Video Outputs	1 x VGA
