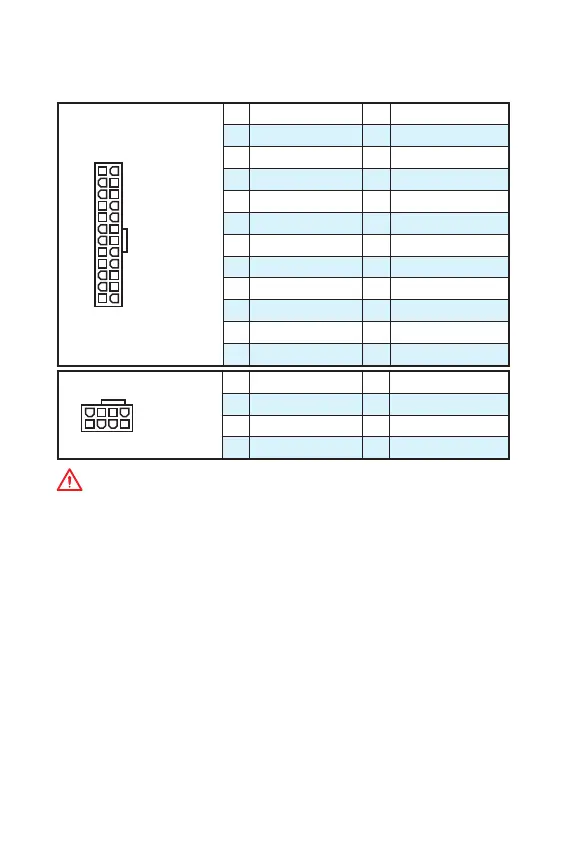

ATX_PWR1, CPU_PWR1: 󼕳󼐿 󼱓󺺔󼺟
󼓣 󼱓󺺔󼺟󻛫 󻸛󼐘󽋇󼍛 ATX 󼕳󼐿 󺩤󺭸 󼔔󼯇󻛫 󼍟󺨟󽋏 󻾇 󼓷󼀤󻀷󻁓.
24
131
12
ATX_PWR1
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 Ground 15 Ground
4 +5V 16 PS-ON#
5 Ground 17 Ground
6 +5V 18 Ground
7 Ground 19 Ground
8 PWR OK 20 Res
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 Ground
5
4
1
8
CPU_PWR1
1 Ground 5 +12V
2 Ground 6 +12V
3 Ground 7 +12V
4 Ground 8 +12V
󼚀󼐃󻸛󽋜
󻠗󻉏 󼕳󼐿 󼱯󼓣󻮃󼓣 ATX 󼕳󼐿 󺩤󺭸 󼔔󼯇󼌿 󼎛󻦃󻛣󺧻 󼍟󺨟󻆇󼌣 󻟃󼓧󻩣󻉋󺥯 󼊷󼖄󼕰󼒫󻗋
󼔀󻅈󽋇󻀃󼜯 󽏄󼓧󽋇󻺧󼐃.

MSI A320M PRO-VD PLUS Specifications

General

Form Factor	Micro ATX
Chipset	AMD A320
CPU Socket	AM4
Memory Slots	2 x DIMM
Maximum Memory	32GB
Storage Interface	4 x SATA 6Gb/s
LAN	Realtek 8111H Gigabit LAN
Memory Speed	DDR4 3200+(OC) MHz
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
USB Ports	6 x USB 2.0 (2 rear, 4 front)
Audio	Realtek ALC887, 7.1-Channel High Definition Audio
Video Outputs	1 x VGA
