MSI A320M PRO-VD PLUS User Manual

15

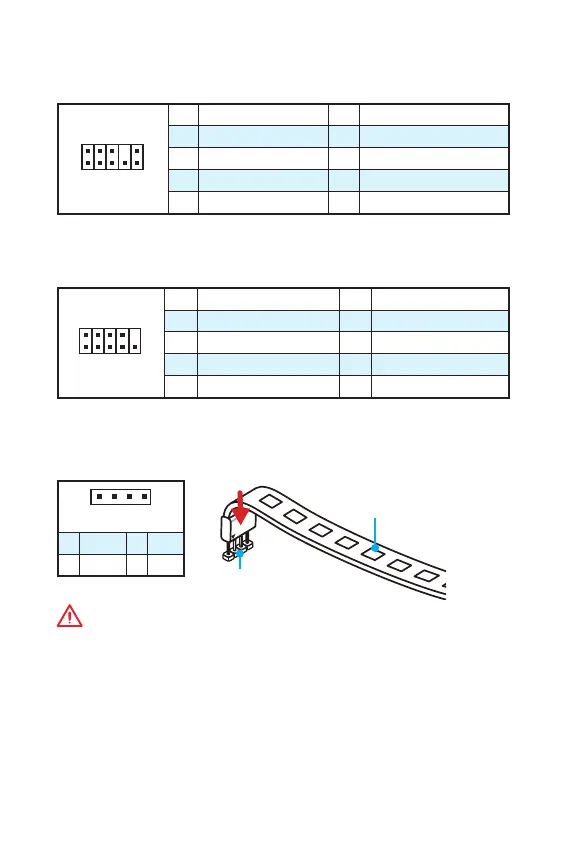

Overview of Components Overview of Components
JAUD1: Front Audio Connector
This connector allow you to connect audio jacks on the front panel.
1
2 10
9
1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE_SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection
JCOM1~2: Serial Port Connectors
These connectors allow you to connect the optional serial port with bracket.
1
2 10
9
1 DCD 2 SIN
3 SOUT 4 DTR
5 Ground 6 DSR
7 RTS 8 CTS
9 RI 10 No Pin
JLED1: LED strip connector
This connector allows you to connect the single color LED strip.
Important
y This connector supports 5050 single-color LED strips with the maximum power
rating of 3A (12V). Please keeping the LED strip shorter than 2 meters to prevent
dimming.
y Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the LED strip.
y Please use MYSTIC LIGHT to control the extended LED strip.
1
1 +12V 2 NC
3 Signal 4 NC
1
JLED1
5050 LED strip

MSI A320M PRO-VD PLUS Specifications

General

Form Factor	Micro ATX
Chipset	AMD A320
CPU Socket	AM4
Memory Slots	2 x DIMM
Maximum Memory	32GB
Storage Interface	4 x SATA 6Gb/s
LAN	Realtek 8111H Gigabit LAN
Memory Speed	DDR4 3200+(OC) MHz
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
USB Ports	6 x USB 2.0 (2 rear, 4 front)
Audio	Realtek ALC887, 7.1-Channel High Definition Audio
Video Outputs	1 x VGA
