Realtek ALC883 Audio
A-19
Hardware Setup
Connecting the Speakers
When you have set the Multi-Channel Audio Function mode properly in the software
utility, connect your speakers to the correct phone jacks in accordance with the
setting in software utility.
n 2-Channel Mode for Stereo-Speaker Output

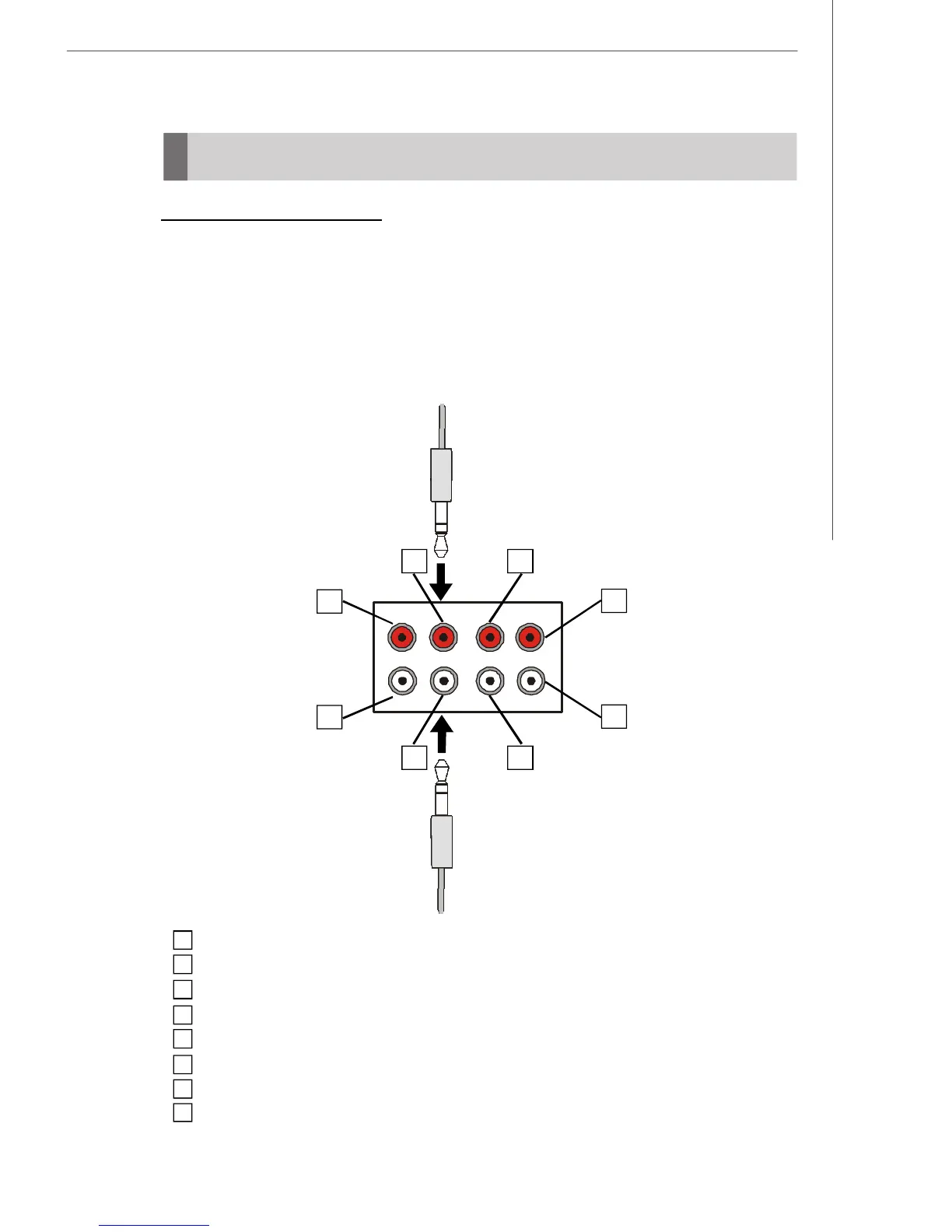

Refer to the following diagram and caption for the function of each phone jack on the
back panel when 2-Channel Mode is selected.
3
4
5
6
7
8
1
2
1 Line Out (Side surround channels) Right.
2 Line Out (Side surround channels) Left.
3 Line Out (Front channels) Right.
4 Line Out (Front channels) Left.
5 Line Out (Rear surround channels) Right.
6 Line Out (Rear surround channels) Left.
7 Line Out (Center channel)
8 Line Out (Subwoofer channel)
