MSI Media Live User Manual

MS-6421 Media Center
2-6

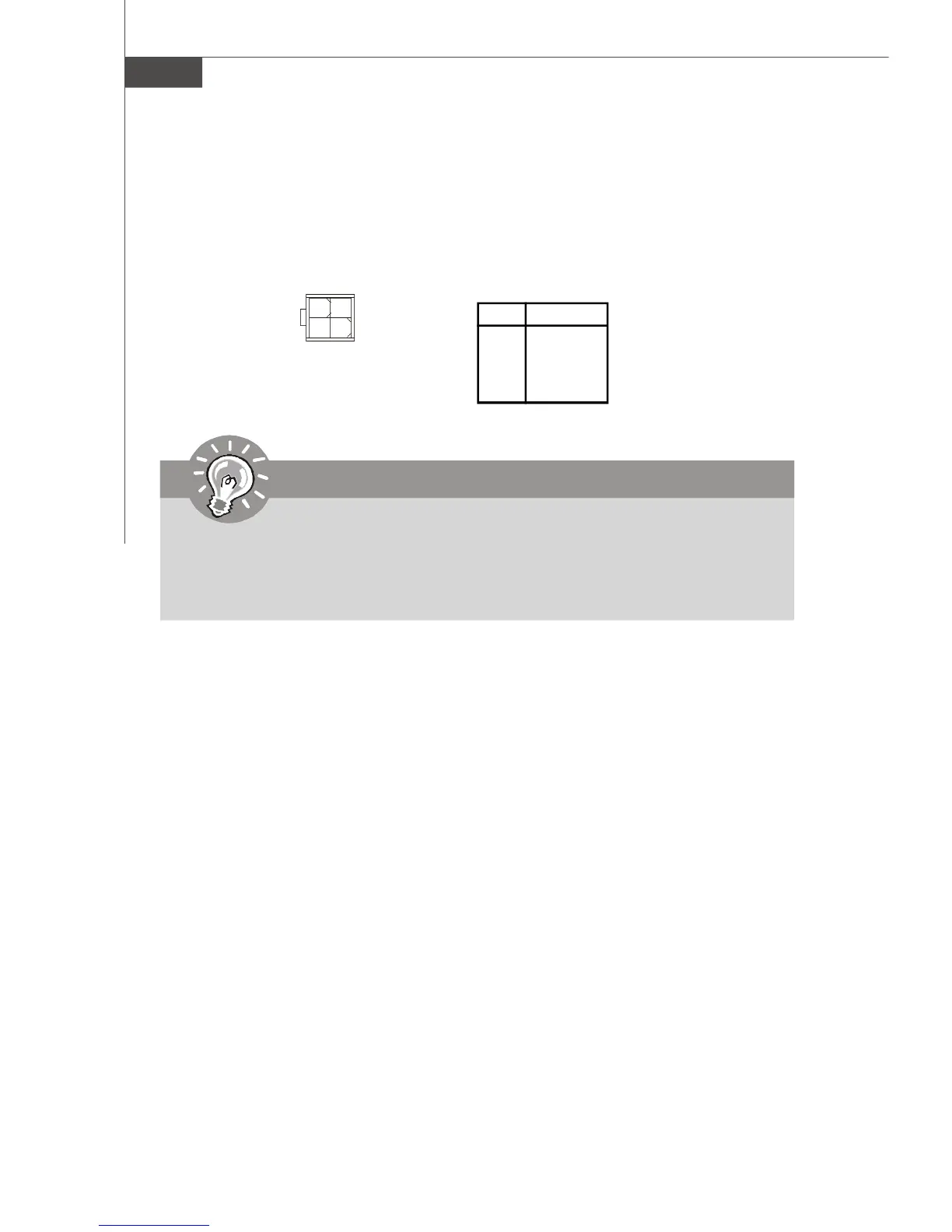

ATX 12V Power Connector: JPW1
This 12V power connector JPW1 is used to provide power to the CPU.
PIN SIGNAL
1 GND
2 GND
3 12V
4 12V
Pin Definition
4 2
3 1
JPW1
1. Make sure that all the connectors are connected to proper ATX power
supplies to ensure stable operation of the mainboard.
2. Power supply of 350 watts (and above) is highly recommended for system
stability.
