MSI Media Live User Manual

Hardaware Setup
2-17

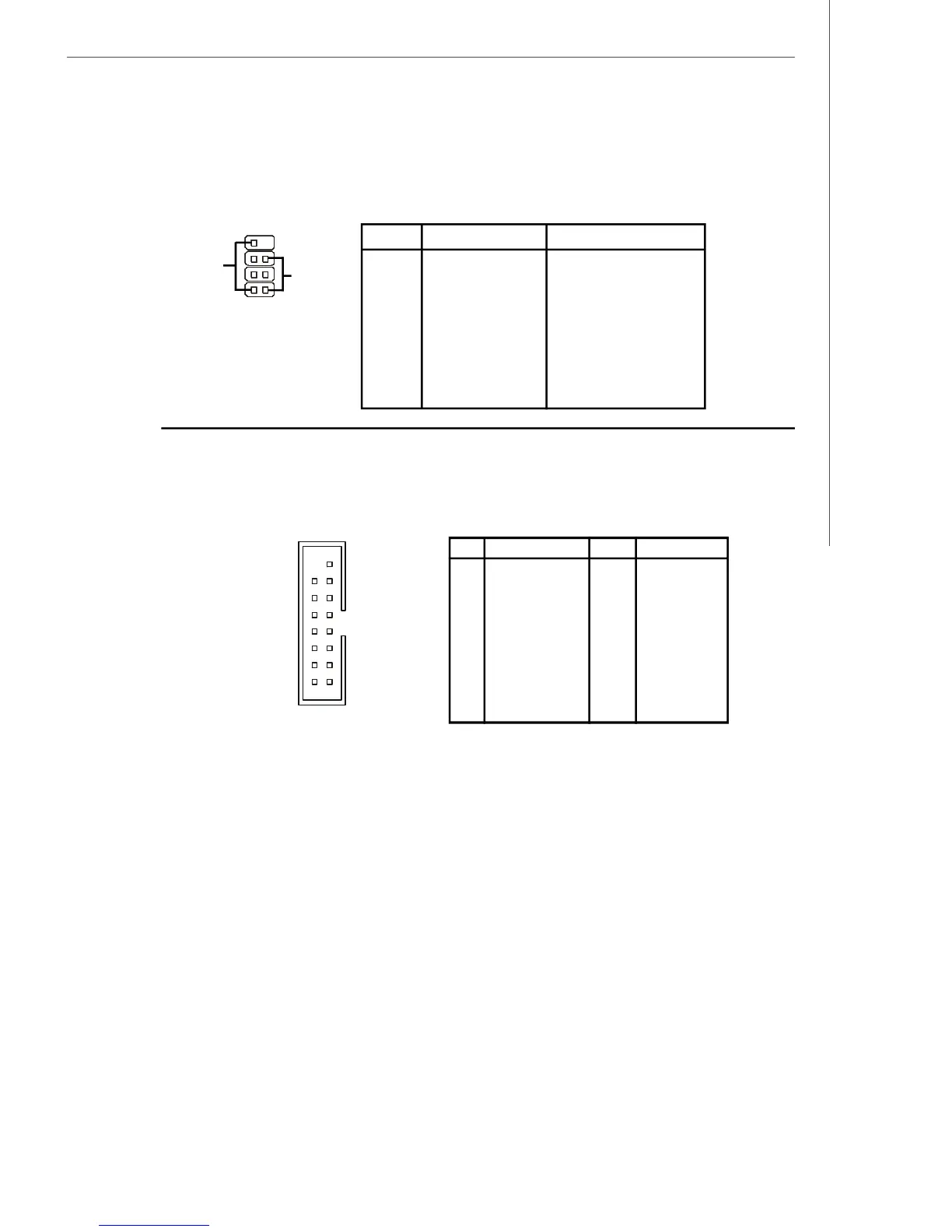

VGA Connector: JVGA2
The connector is provided for VGA monitors.
PIN SIGNAL DESCRIPTION
1 GND Ground
2 SPK- Speaker-
3 SLED Suspend LED
4 BUZ+ Buzzer+
5 PLED Power LED
6 BUZ- Buzzer-
7 NC No connection
8 SPK+ Speaker+
Pin Definition
JFP2
Power
LED
Speaker
2 1
+
-
-
+
8 7
PIN SIGNAL PIN SIGNAL
1 VGA_R 2 GND
3 GND 4 NC
5 DDC_DATA 6 VGA_G
7 VGA_B 8 GND
9 VCC 10 HSYNC
11 VSYNC 12 NC
13 DDC_CLK 14 GND
15 GND 16 NC
Pin Definition
JVGA2
15
12
