MSI Z170A GAMING M7 User Manual

40

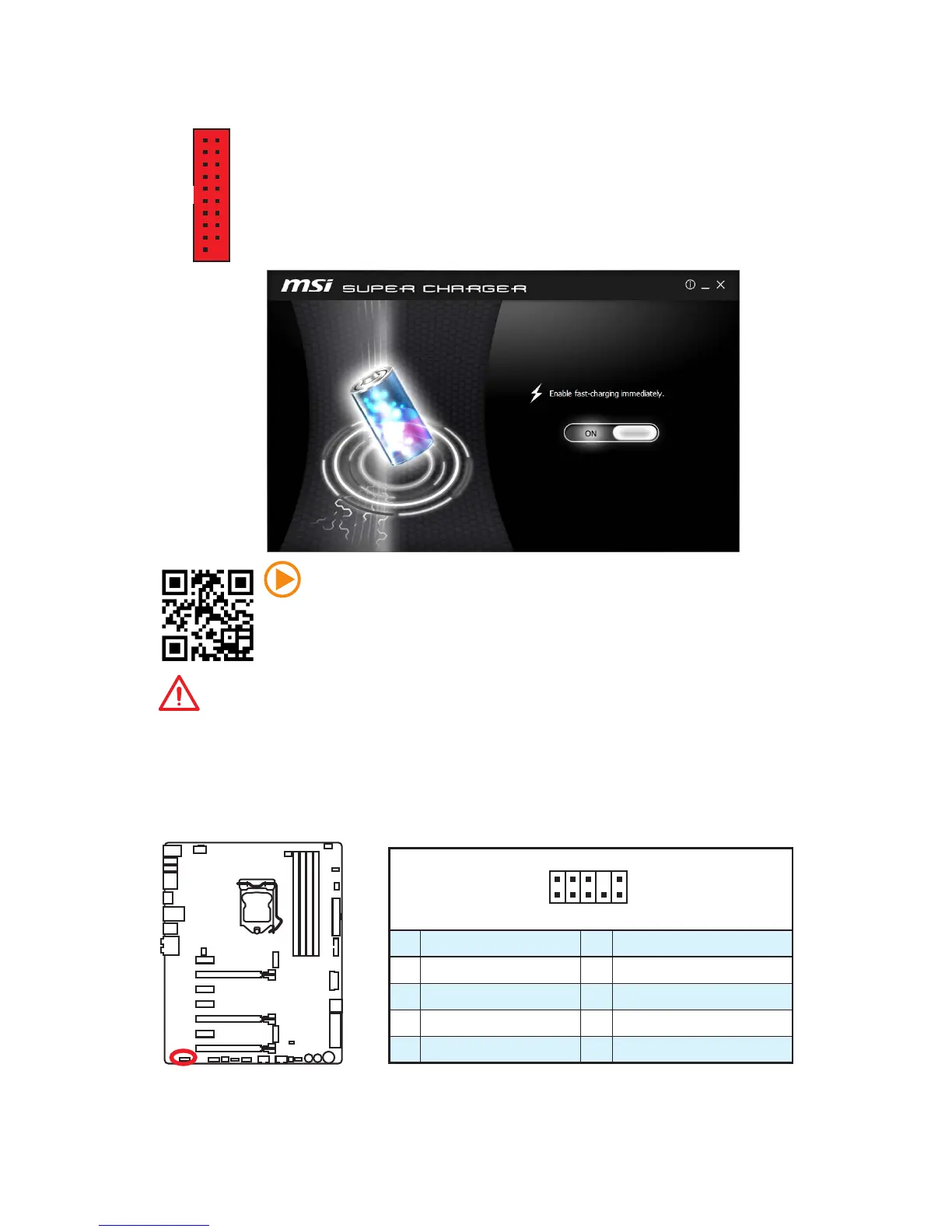

Overview of Components
JAUD1: Front Audio Connector
This connector allows you to connect audio jacks on the front panel.
1
2 10
9
1 MIC L 2 Ground
3 MIC R 4 NC
5 Head Phone R 6 MIC Detection
7 SENSE_SEND 8 No Pin
9 Head Phone L 10 Head Phone Detection
Charger Port
The JUSB4 (red mark) connector is a charger port which can increase
USB power output for fast charging your smartphone or USB-powered
devices. The Charger Port is hardware controlled by motherboard
chip, it can still charge your device in suspend, hibernate state or
even shutdown states. However, when you boot the computer into
Windows
®
, you will need to install the MSI
®
SUPER CHARGER
application to turn ON/OFF the Charging mode.
Video Demonstration
Watch the video to learn how to charge the smartphone with Super-
Charge.
http://youtu.be/FCyvjr5NbOw
Important
When the Charging mode is enabled, the Charge Port data syncing will be disabled.
JUSB4

MSI Z170A GAMING M7 Specifications

General

Chipset	Intel Z170
CPU Socket	LGA 1151
Memory Slots	4 x DIMM
Maximum Memory	64GB
Form Factor	ATX
Audio	Realtek ALC1150
M.2 Slots	1
USB 3.1 Gen1 Ports	8
PCI Express x16 Slots	3
PCI Express x1 Slots	4
RAID Support	RAID 0, 1, 5, 10
Multi-GPU Support	AMD 3-Way CrossFire, NVIDIA 2-Way SLI
Storage Interface	6 x SATA 6Gb/s
USB Ports	8 x USB 3.1 Gen1
LAN	Killer E2400 Gigabit LAN Controller
