MSI Z170A GAMING M7 User Manual

45
Overview of Components

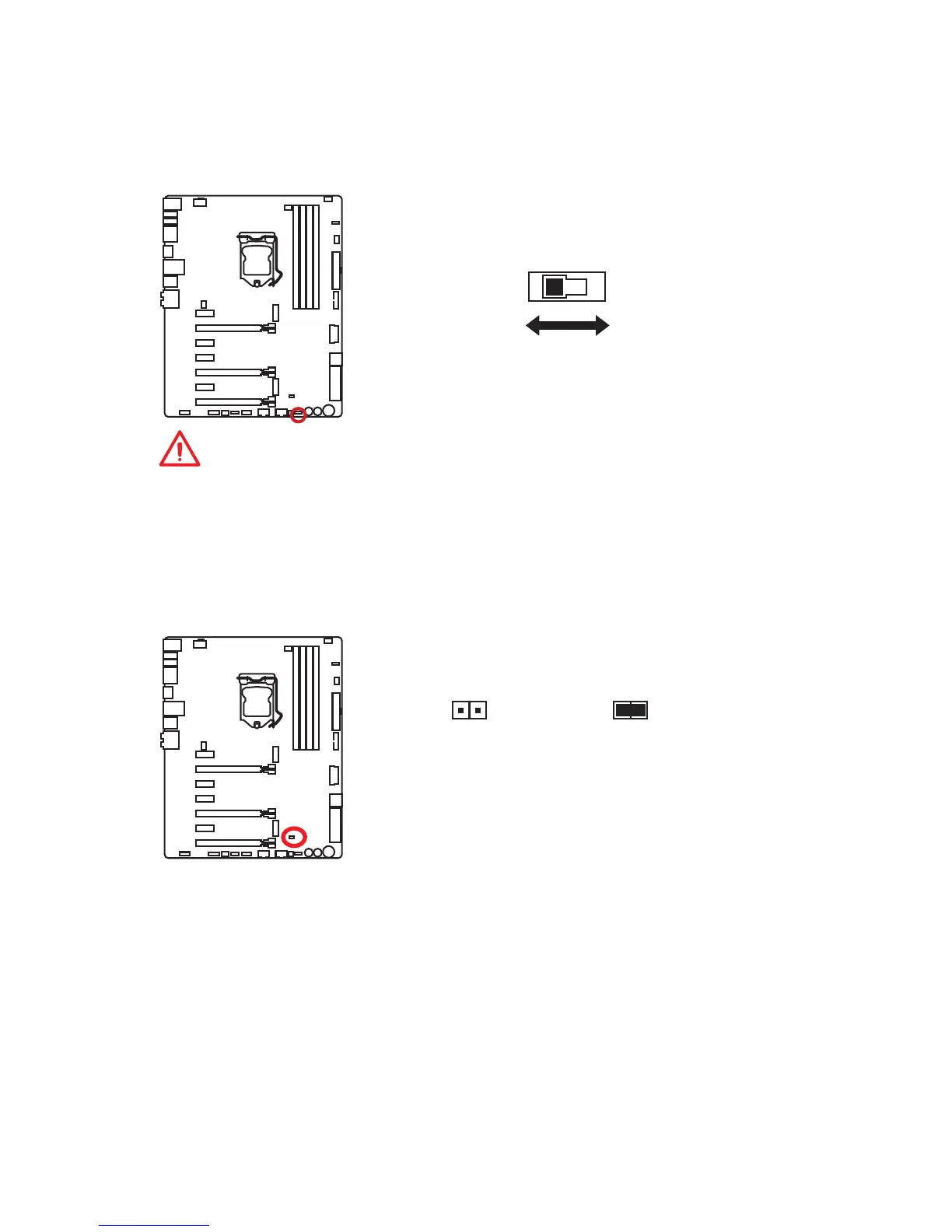

SLOW_1: Slow Mode Booting Switch
This switch is used for LN2 cooling solution, that provides the extreme overclocking
conditions, to boot at a stable processor frequency and to prevent the system from
crashing.
Normal
(Default)
Enabled
Important
Users will try extreme low temperature overclocking at their own risks. The
overclocking results will vary according to the CPU version.
JBAT1: Clear CMOS (Reset BIOS) Jumper
There is CMOS memory onboard that is external powered from a battery located on
the motherboard to save system configuration data. If you want to clear the system
configuration, set the jumpers to clear the CMOS memory.
Keep Data
(default)
Clear CMOS/
Reset BIOS
Resetting BIOS to default values
1. Power off the computer and unplug the power cord
2. Use a jumper cap to short JBAT1 for about 5-10 seconds.
3. Remove the jumper cap from JBAT1.
4. Plug the power cord and power on the computer.

MSI Z170A GAMING M7 Specifications

General

Chipset	Intel Z170
CPU Socket	LGA 1151
Memory Slots	4 x DIMM
Maximum Memory	64GB
Form Factor	ATX
Audio	Realtek ALC1150
M.2 Slots	1
USB 3.1 Gen1 Ports	8
PCI Express x16 Slots	3
PCI Express x1 Slots	4
RAID Support	RAID 0, 1, 5, 10
Multi-GPU Support	AMD 3-Way CrossFire, NVIDIA 2-Way SLI
Storage Interface	6 x SATA 6Gb/s
USB Ports	8 x USB 3.1 Gen1
LAN	Killer E2400 Gigabit LAN Controller
