MSI Z170A GAMING M7 User Manual

42

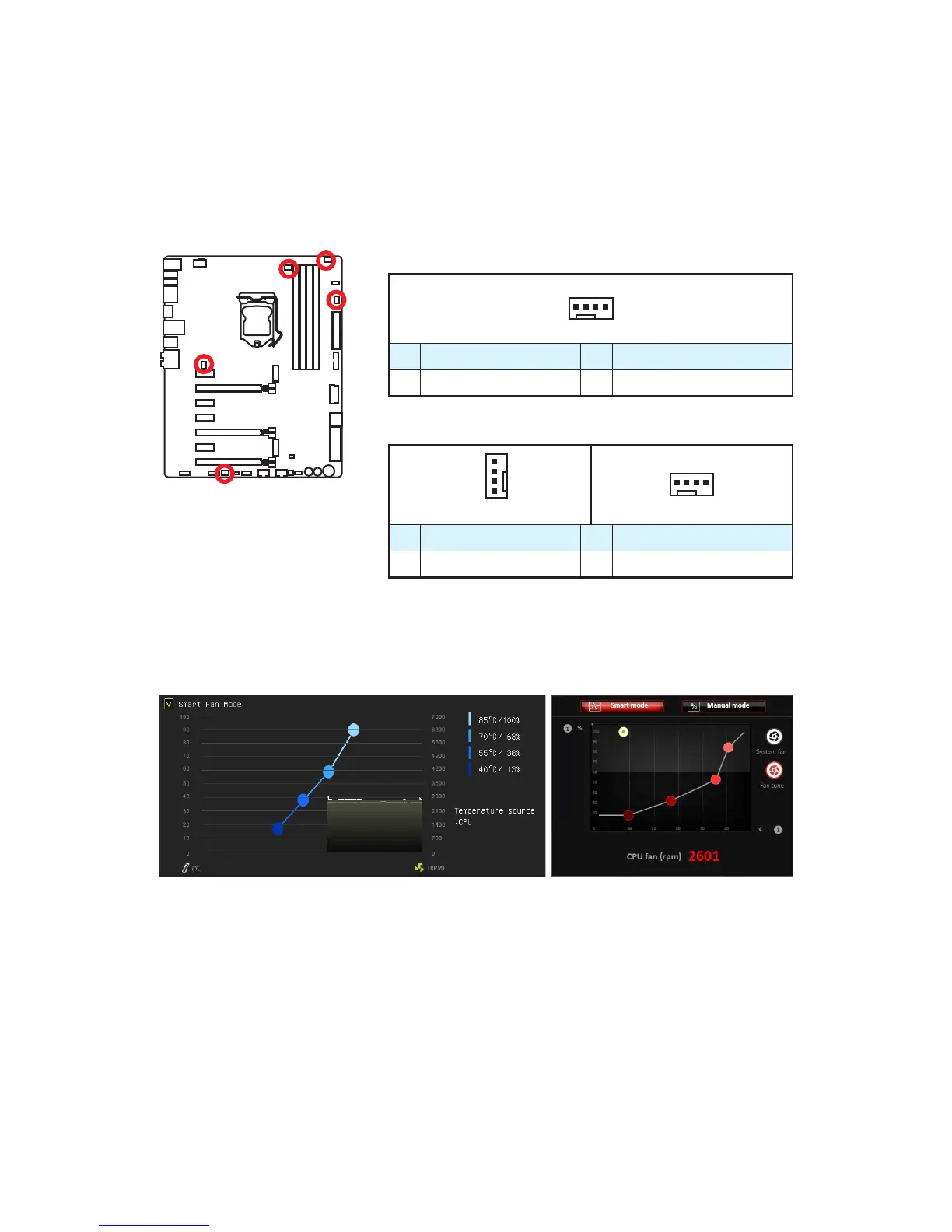

Overview of Components
CPUFAN1~2, SYSFAN1~3: Fan Connectors
Fan connectors can be classified as PWM (Pulse Width Modulation) Mode and
Voltage Mode. PWM Mode fan connectors provide constant 12V output and adjust fan
speed with speed control signal. Voltage Mode fan connectors control fan speed by
changing voltage. Therefore, when you plug a 3-pin (Non-PWM) fan to a PWM Mode
fan connector, the fan speed will be always maintained at 100%, and that could be
noisy.
1
CPUFAN1/ CPUFAN2
1 Ground 2 +12V
3 Sense 4 Speed Control Signal
1
SYSFAN1/ SYSFAN3
1
SYSFAN2
1 Ground 2 Voltage Control
3 Sense 4 NC
PWM Mode fan connector
Voltage Mode fan connector
Controlling the fan speed
There are two ways to manage fan speed. One is to go to BIOS > HARDWARE
MONITOR. The other is to use COMMAND CENTER application.
BIOS > HARDWARE MONITOR COMMAND CENTER
Both methods offer gradient points of the fan speed that allow you to adjust fan speed
in relation to CPU temperature.

MSI Z170A GAMING M7 Specifications

General

Chipset	Intel Z170
CPU Socket	LGA 1151
Memory Slots	4 x DIMM
Maximum Memory	64GB
Form Factor	ATX
Audio	Realtek ALC1150
M.2 Slots	1
USB 3.1 Gen1 Ports	8
PCI Express x16 Slots	3
PCI Express x1 Slots	4
RAID Support	RAID 0, 1, 5, 10
Multi-GPU Support	AMD 3-Way CrossFire, NVIDIA 2-Way SLI
Storage Interface	6 x SATA 6Gb/s
USB Ports	8 x USB 3.1 Gen1
LAN	Killer E2400 Gigabit LAN Controller
