6
Quick Start

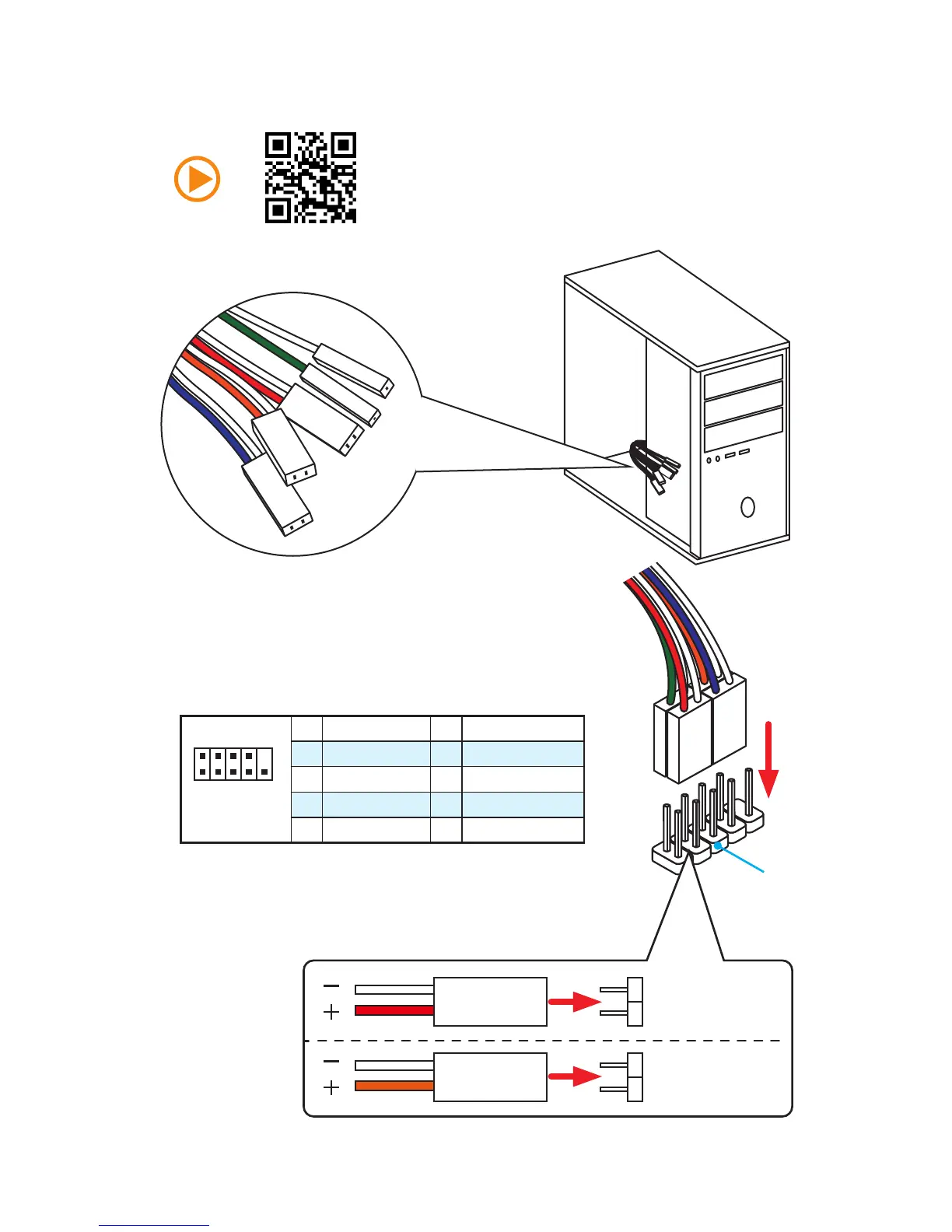

Connecting the Front Panel Header
http://youtu.be/DPELIdVNZUI
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
RESET SW
POWER SW
POWER LED+
POWER LED-
HDD LED
HDD LED
RESET SW
JFP1
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED

Table of Contents

Other manuals for MSI Z170A GAMING M7

Preview: Manual
Manual204 pages
Preview: Quick Start Quide
Quick Start Quide246 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the MSI Z170A GAMING M7 and is the answer not in the manual?

MSI Z170A GAMING M7 Specifications

General IconGeneral
ChipsetIntel Z170
CPU SocketLGA 1151
Memory Slots4 x DIMM
Maximum Memory64GB
Form FactorATX
AudioRealtek ALC1150
M.2 Slots1
USB 3.1 Gen1 Ports8
PCI Express x16 Slots3
PCI Express x1 Slots4
RAID SupportRAID 0, 1, 5, 10
Multi-GPU SupportAMD 3-Way CrossFire, NVIDIA 2-Way SLI
Storage Interface6 x SATA 6Gb/s
USB Ports8 x USB 3.1 Gen1
LANKiller E2400 Gigabit LAN Controller
