14 – English

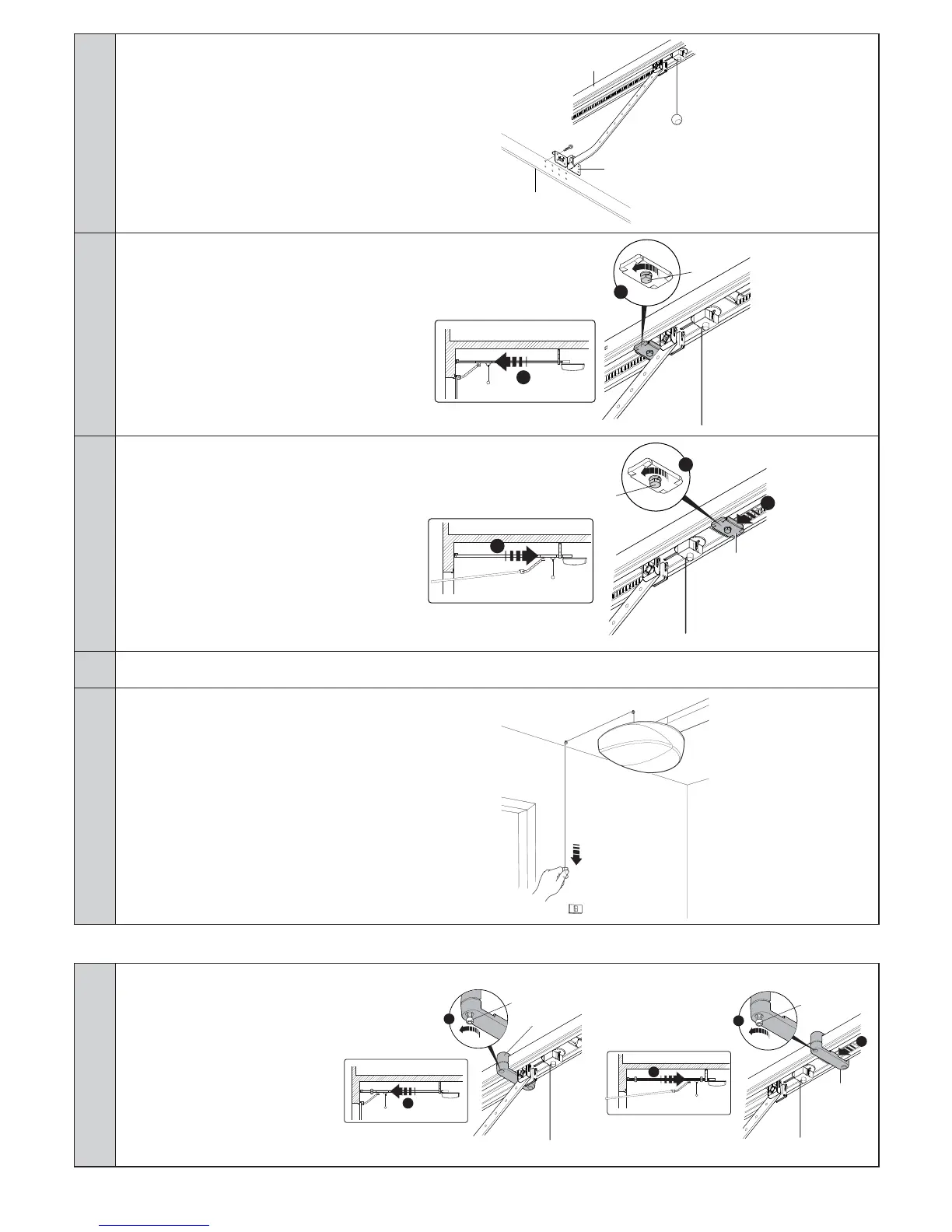

08. Slide the carriage until the leaf
connecting bracket N on the
upper edge of the door is perfectly
perpendicular to the guide M. Then
secure the leaf connecting bracket
N with rivets or screws. Use
screws or rivets suited to the leaf
material, and ensure that they are
able to withstand the maximum
force required for leaf opening and
closing.
M
N
09. Loosen the screws of the two
mechanical stops, then move the
front mechanical stop O in front of
the carriage.
Push the carriage in the closing
direction and, on reaching the
position, tighten the screw P fully
down.
1
2
P
10. Manually open the door to the
required opening position, move the
rear mechanical stop Q, next to the
carriage and tighten the screw R
fully down.
1
3
Q
2
R
11. Try to move the door manually. Ensure that the carriage slides easily without friction on the guide and that manual movement does not
require excessive force.
12. Position the control cord at the
required point of the room; if
necessary route across the ceiling
by means of plugs with eyebolts.
3.7.1 - Stops for the SNA30C guide
01.
Loosen the screws of the two
mechanical stops, then move the
front mechanical stop O in front
of the motor carriage. Push the
carriage in the closing direction and,
on reaching the position, tighten the
two screws P fully down.
Manually open the door to the
required opening position, move the
rear mechanical stop Q next to the
carriage, and tighten the two screws
R fully down.
1
2
P
O
1
3
Q
R
2
7RLQVWDOOWKHVSHFLƄHGDFFHVVRULHVUHIHUWRWKHUHVSHFWLYHLQVWUXFWLRQPDQXDOV
