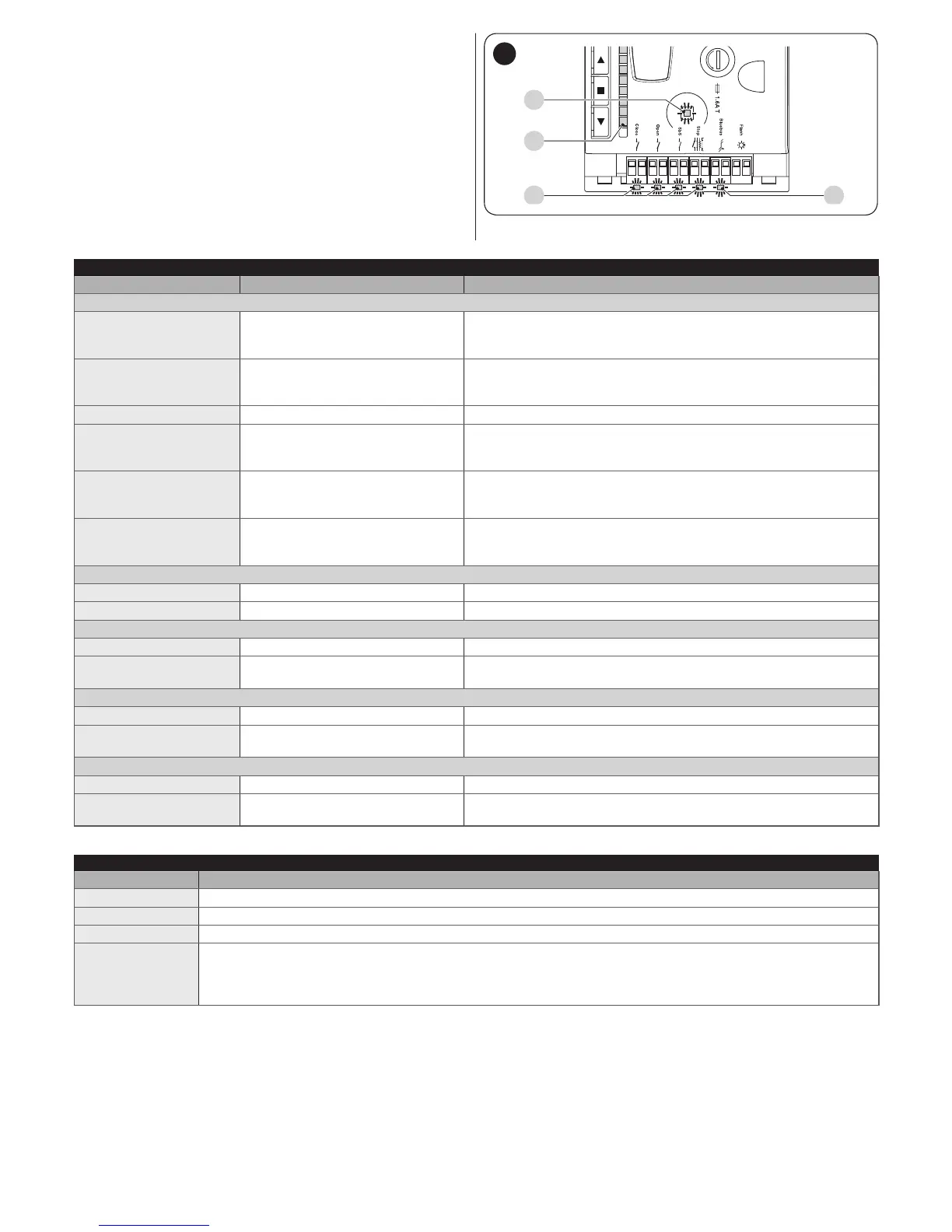

8.4 SIGNALS ON THE CONTROL UNIT
The control unit has a series of LEDs, each of which can emit
special signals both during regular operation and when an
anomaly occurs.
A BlueBus LED
B Close, Open, Sbs, Stop LEDs
C “L1 ... L8” programming LEDs
D Courtesy light
FUSE
L1L2L3L4L5L6L7L8
Flash Bluebus StopSbsOpenClose
LED
FUSE
AB
C
D
29
Table 14
TERMINAL LEDS ON THE CONTROL UNIT
Status Meaning Possible solution
BlueBus LED
OFF
Anomaly
Check for the presence of power; check that the fuses are not blown;
if necessary, identify the cause of the fault then replace them with
fuses having the same specications.
On
Serious anomaly
There is a serious anomaly; try switching off the control unit for a few
seconds; if the condition persists, it means that there is a fault and
the electronic circuit board must be replaced.
1 green ash per second
Everything normal Normal control unit operation.
2 quick green ashes
The status of the inputs has
changed
This is normal when there is a change in one of the inputs: SBS,
STOP, OPEN, CLOSE, the photocells intervene or the radio
transmitter is used.
A series of ashes
separated by a 1-second
pause
Various
Refer to that shown in “Table 13”.
A series of quick and
extended red ashes
Short circuit on the BlueBUS
terminal clamp
Disconnect the terminal and verify the cause of the short-circuit on
the BlueBUS connections. If the short-circuit is resolved, the LED will
start ashing normally after about ten seconds.
STOP LED
OFF
Intervention of the STOP input Check the devices connected to the STOP input.
On
Everything normal STOP input active.
Sbs LED
OFF
Everything normal Sbs input not active.
On
Intervention of the Sbs input
This is normal if the device connected to the Sbs input is actually
active.
OPEN LED
OFF
Everything normal OPEN input not active.
On
Intervention of the OPEN input
This is normal if the device connected to the OPEN input is actually
active
CLOSE LED
OFF
Everything normal CLOSE input not active.
On
Intervention of the CLOSE input
This is normal if the device connected to the CLOSE input is actually
active.
Table 15
CONTROL UNIT COURTESY LIGHT
Status Description
OFF
Automation Stopped
Steady Lit
Manoeuvre in progress
On 3 sec
Automation Lock Command Executed
Flashes
The control unit must run the automatic force search procedure (refer to the “Learning of the door opening and
closing positions” paragraph). If the courtesy light ashes also during the manoeuvre, it means that a procedure
is under way to detect the critical points of the manoeuvre.
If it ashes synchronously with the warning light, there is an anomaly (refer to “Table 13”).
