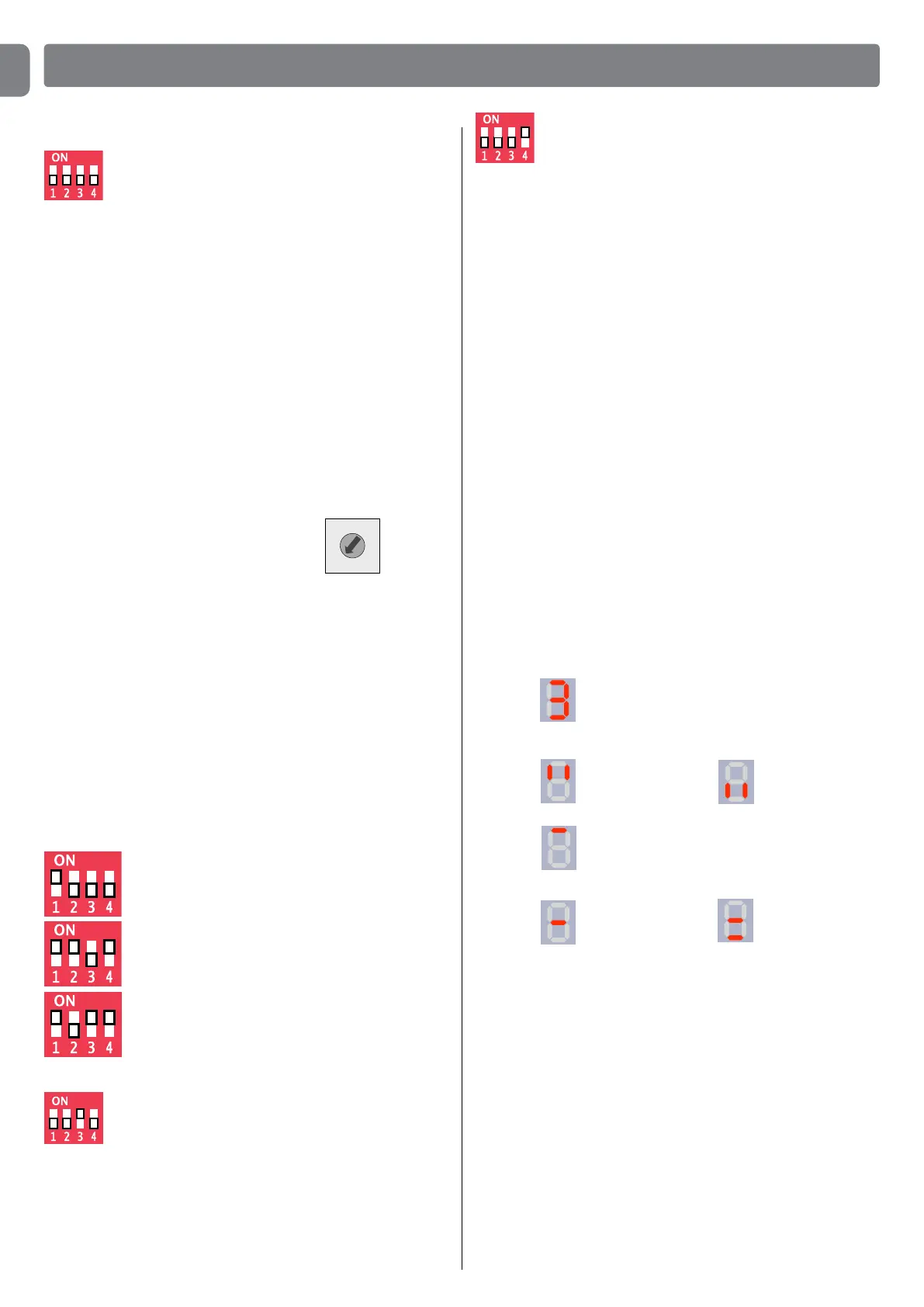

SETTINGS OF THE AUTOMATIC FUNCTIONS
Automatic closing
Automatic closing is set on the S2 selector.
The closing times can be set on a value between 0 and 240 seconds.
Special function:
if there is a photoelectric barrier, the time
is reduced by 5 seconds after passage.
Time setting
0 Automatic closing disabled
1 5 seconds
2 10 seconds
3 20 seconds
4 30 seconds
5 45 seconds
6 60 seconds
7 90 seconds
8 120 seconds
9 240 seconds
5
4
6
3
7
2
8
1
9
0
S2 wobble switch
Reversing function
DIP 4 = ON
The door blocks and reverses its direction for
about 50cm if the sensitive edge is enabled
during the downward movement.
DIP 4 = OFF
The door blocks and reaches the upper nal
position if the sensitive edge is enabled during the
downward movement.
Automatic adaptation to the ground
DIP 2 = ON
This function can be used if there is an SBA
sensor.
Advance notice trafc lights
DIP 3 = ON
With this function the red trafc lights
(terminals 1+2) begin to ash 3 seconds
before closing of the door.
Meaning of display messages
Upper segment:
ashing --> upper nal position setting in progress
ON --> upper nal position setting completed
Lower segment:
ashing --> lower nal position setting in progress
ON --> lower nal position setting completed
movement UP,
movement DOWN,
upper nal
position,
preliminary limit
lower nal
switch,
position.
Error 3
sensitive edge tripped, for
example
In normal operating conditions, the
status of the door and/or the number
of the error present are shown on the
display.
Operation functions
In normal operating conditions, the
door status and/or the error present are
shown on the display.
Put all of the DIP switches on "OFF".
Fault display (represented with ashing):
1 Safety circuit
2 Lower sensitive edge fault
3 Lower sensitive edge tripped
4 Lower nal position not reached (time limit)
5 Upper nal position not reached (time limit)
6 Incorrect direction of rotation of gearmotor
7 Power during lifting deactivation
8 Door in the safety limit switch sector
9 The door is not in one of the nal positions
correction of the nal position is impossible
0 Digital limit switch error
DIP switch functions on main board:
DIP 1 “ON“ and 2, 3, 4 “OFF“
Setting of the nal positions
DIP 1, 2, 4 “ON“ and 3 “OFF“
Precision setting of the nal position
(increase)
DIP 1, 3, 4 “ON“ and 2 “OFF“
Precision setting of the nal position
(decrease)
WARNING:
It is possible to lengthen the duration of the waiting time of a factor
by choice (with selector in position 6 to 9) using the K5 module. The
parameter to be used is P28.
