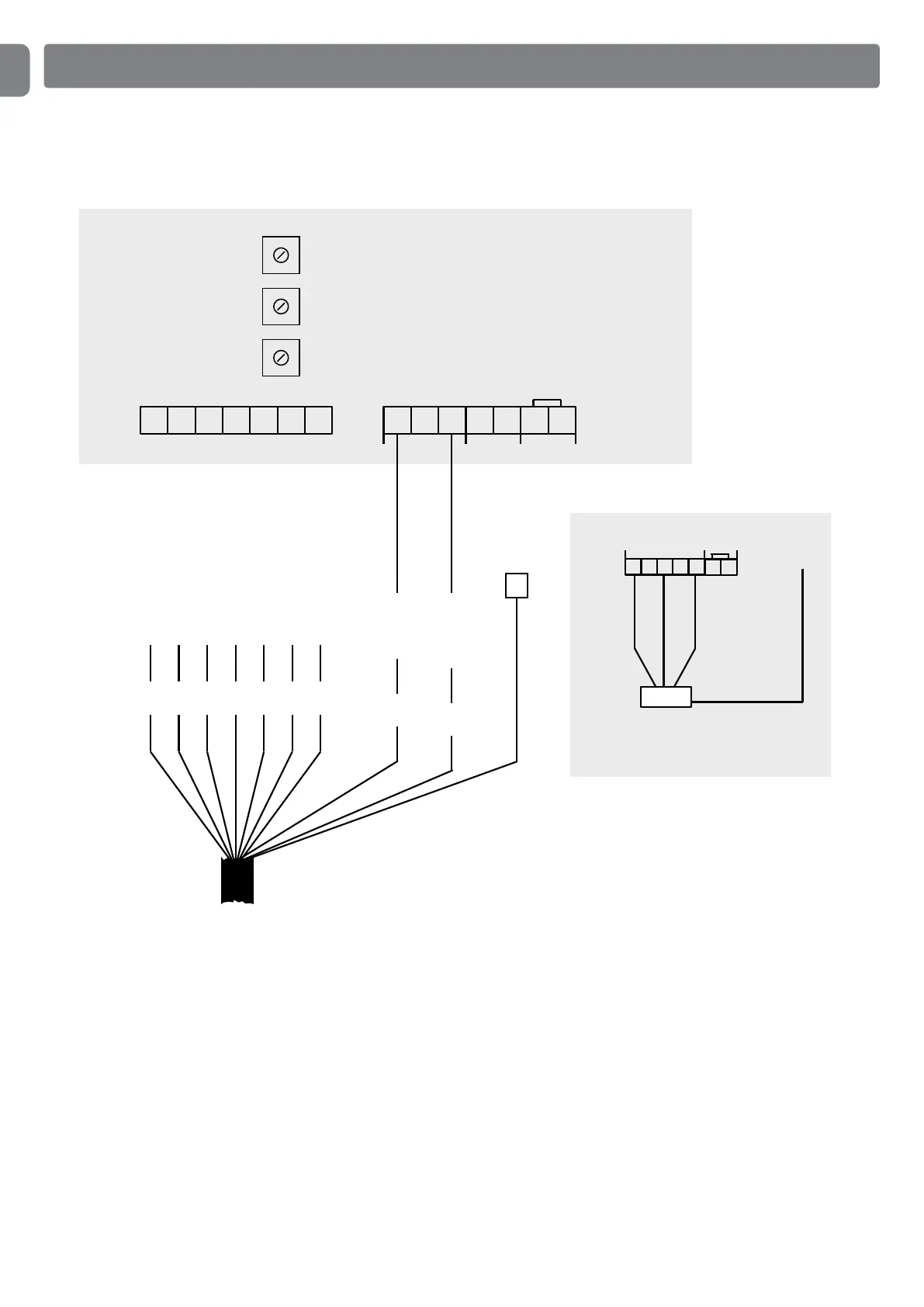

SETTING THE SPEED
UST1 FU
POTENTIOMETER 2
POTENTIOMETER 3
POTENTIOMETER 1
Com
E1
E2
E3
9
7
8
X11
+12V -
terminal
20
INV.
K2/N
K2/L1
UP
-
E1
DOWN
-
E2
STOP
-
E3
+10V
-
9
AIN
-
8
COM
-
7
1
PE
3
10
9 8 7 6 5 4
B2
U
X2
B1
V
J11
J10
INVERTER
Single-phase INVERTER
connection
PE
U
V
W
L1
L3
L2
J11
INVERTER
Three-phase
INVERTER connection
B2B1
J10
terminal terminal terminal
terminal
terminal
terminal
INV.
INV.
INV.
INV.
INV.
INV.
INV.
There are 3 potentiometers on the UST1-FU control unit.
You can set slow movement in both directions with potentiometer 1. You can separately set the lifting and
lowering speeds with potentiometers 2 and 3, respectively.

Nice UST1-FU Specifications

General

Brand	Nice
Model	UST1-FU
Category	Control Unit
Language	English
