2
s
Take a few moments to familiarize yourself with camera controls
and displays. You may find it helpful to bookmark this section
and refer to it as you read through the rest of the manual.
The Camera Body

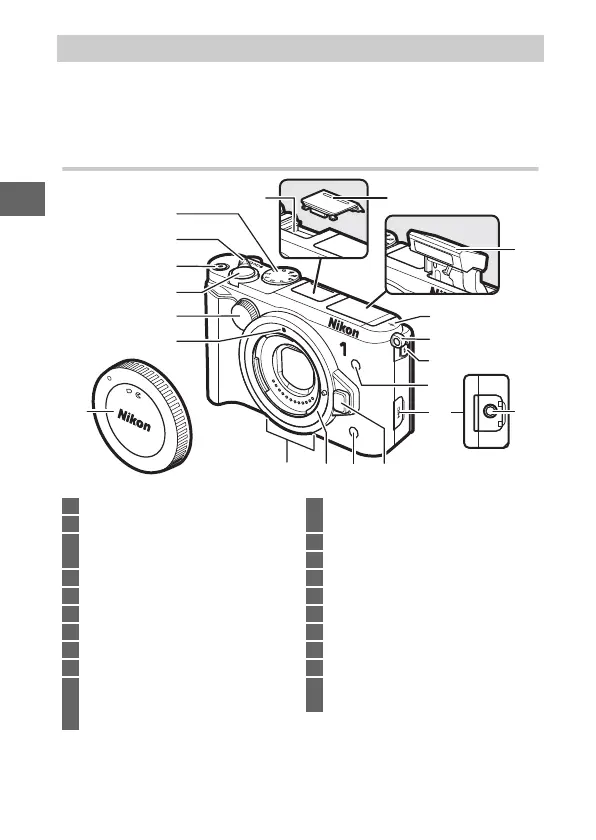

Parts of the Camera
10
1
2
3
16
19
18
17
9
7
8
14 13
1215
20
11
5
6
4
1 Mounting mark ...................................22
2 Sub-command dial...................... 58, 59
3 Shutter-release
button .................33, 52, 63, 66, 68, 72
4 Movie-record button ................. 48, 49
5 Power switch........................................24
6 Mode dial ................................................ 7
7 Focal plane mark (E)
8 Eyelet for camera strap......................20
9 Flash pop-up button ..........................81
10 AF-assist illuminator ....................... 100
Self-timer lamp....................................78
Red-eye reduction lamp ...................82
11 External microphone connector
cover
12 Lens release button
13 Infrared receiver.........................79, 119
14 Lens mount ..........................................22
15 Microphone........................................101
16 Body cap .............................................110
17 Multi accessory port
18 Multi accessory port cover
19 Built-in flash .........................................81
20 Connector for external
microphone ......................................110
