VBA10201-R.3577.A
- Ａ31 ･ -
〔Inspection and adjustment items〕
① Inspection and adjustment for the AF accuracy（whole item shall be adjusted）
② YAW, PITCH
③ LARK adjustment
〔Tools in use〕
１．For adjustment of whole item:
The tool(s) used for the AE-oriented adjustment shall be utilized.
２．For check of the AF accuracy
① Z adjustment lens（J18266)for F5, F100
② AF adjustment stand（J15259）
③ Z lens holder（J15280）or position conversion adapter（J15271）for tripod socket
④ AF chart（J18344） for D100
⑤ Lighting box（J15264）for high frequency
３．For adjustment of YAW, and PITCH
① The whole tool used for the check of AF accuracy just as mentioned above
② Adjustment tool for YAW, and PITCH（J18230）
４．For adjustment of LARK
The whole tool used for the check of AF accuracy just as mentioned above
５．For adjustment of CCD output
AF50/1.4D lens

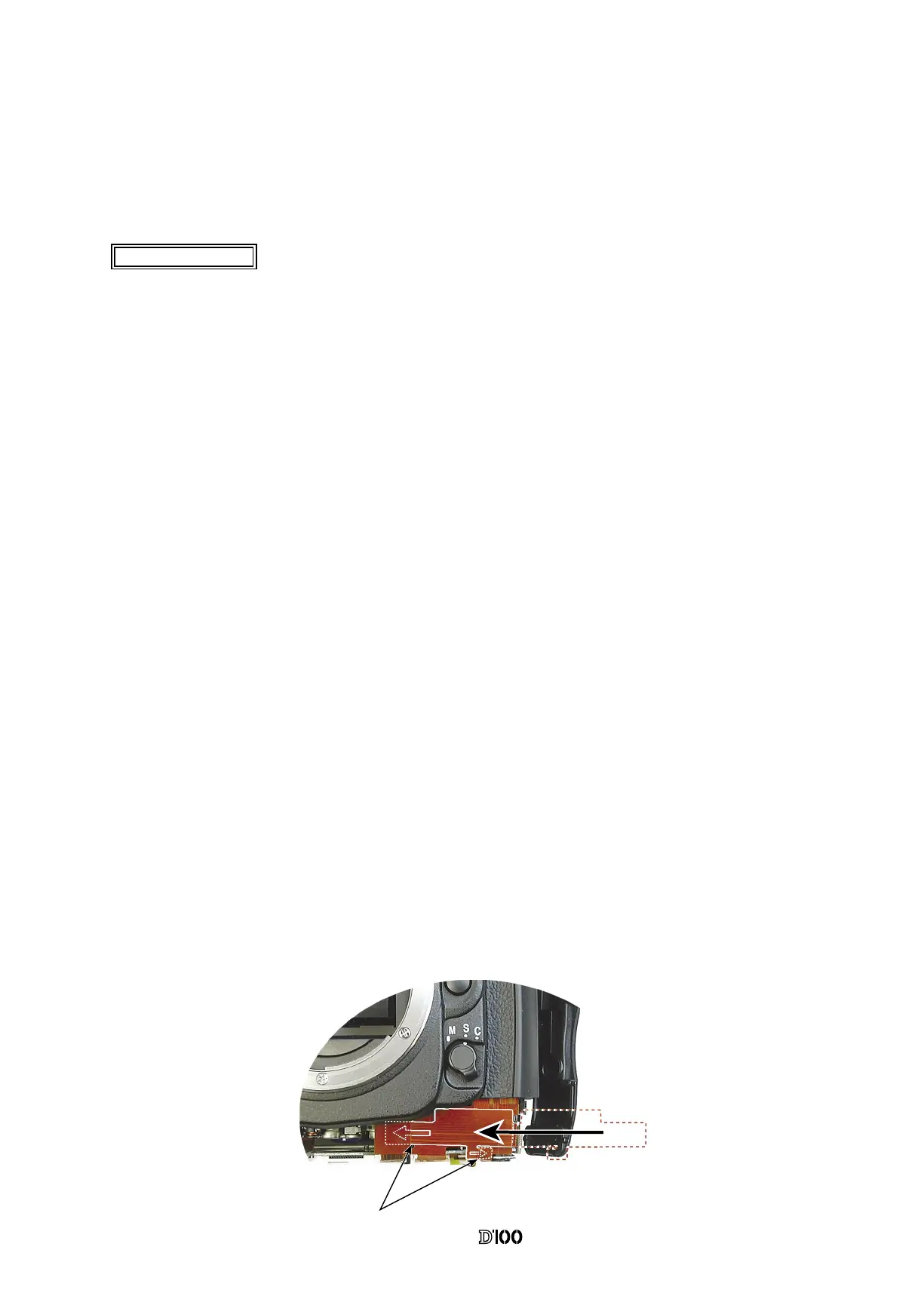

● After the adjustment, insert the FPC used for communication into the 2 holes.
AF ADJUSTMENT
Conduct each adjustment in accordance with the adjustment software instructions on PC screen.
１．Adjustment for temperature detection voltage
２．AE adjustment
３．Aperture adjustment
４．M1/ 4000 adjustment
５．TTL adjustment
2 holes
Note: When using this adjustment software for the rst time, prepare 5 units of D100 cameras to measure and
obtain the average value of them at the AF accuracy inspection.
Then input the average value of these measured 5 units in "WRITING OF AF ADJ. LENS OFFSET
VALE" in the main menu.
*If there is lens data for adjustment of F65, it is possible to make a le for D100 from the le for F65 at
"WRITING OF AF ADJ. LENS OFFSET VALUE" in the menu of adjustment software.
To Next Page
