5 Assembly
1 Assembling the Basic Set
E-35
4

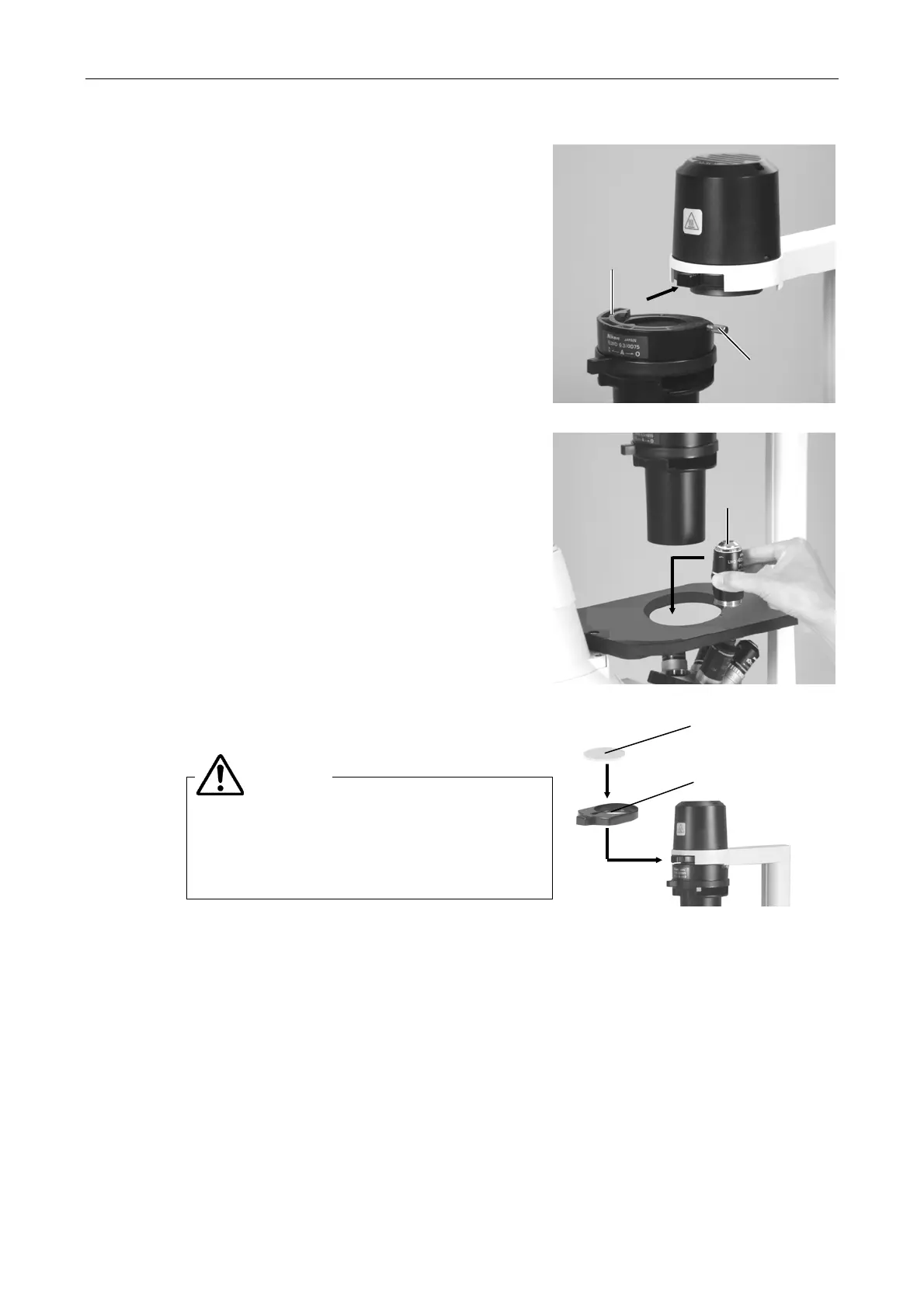

Attaching a condenser
Slide on the condenser to the illumination pillar and
secure it by a clamp screw.
5
Attaching objectives
Objectives are screwed into the revolving
nosepiece from the top of the stage. Attach
objectives so that the magnification increases as
the revolving nosepiece is turned clockwise as
viewed from above.
6
Attaching eyepieces
Remove the caps from the binocular tube and
insert eyepieces. Be sure to attach eyepieces with
the same magnification.
7
Attaching a diffuser
(for TS100LED MV/TS100LED-F
MV only)
Insert the diffuser into the filter holder and bring it
into the optical path. The pearskin finish (rough
side) surface of the diffuser should face upwards
when attaching it to the filter holder.
8
Connecting the power cord
Be sure to use the provided or specified
power cord which matches the power
supply voltage in your local area.
Use of other power cords may result in
malfunction or fire.
■
For TS100/TS100-F
(1) Turn off the power of the microscope (press the power switch to the “○” position).
(2) Check the input voltage indication on the rear of the microscope and connect the correct
power cord.
Make sure that the power cord is securely connected.
• If the nameplate reads “100/110/120 V ~”:
Connect the socket of the provided power cord to the AC inlet on the rear of the
microscope and connect the plug to an AC electrical outlet.
• If the nameplate reads “220/230/240 V ~”:
Connect the socket of the specified power cord to the AC inlet on the rear of the
microscope and connect the plug to an AC electrical outlet.
Condenser
Clamp screw
Objective
WARNING
Diffuser
Filter holder
To Next Page
