5 Assembly
2 Assembling Components Not Included in the Basic Set
E-37
3

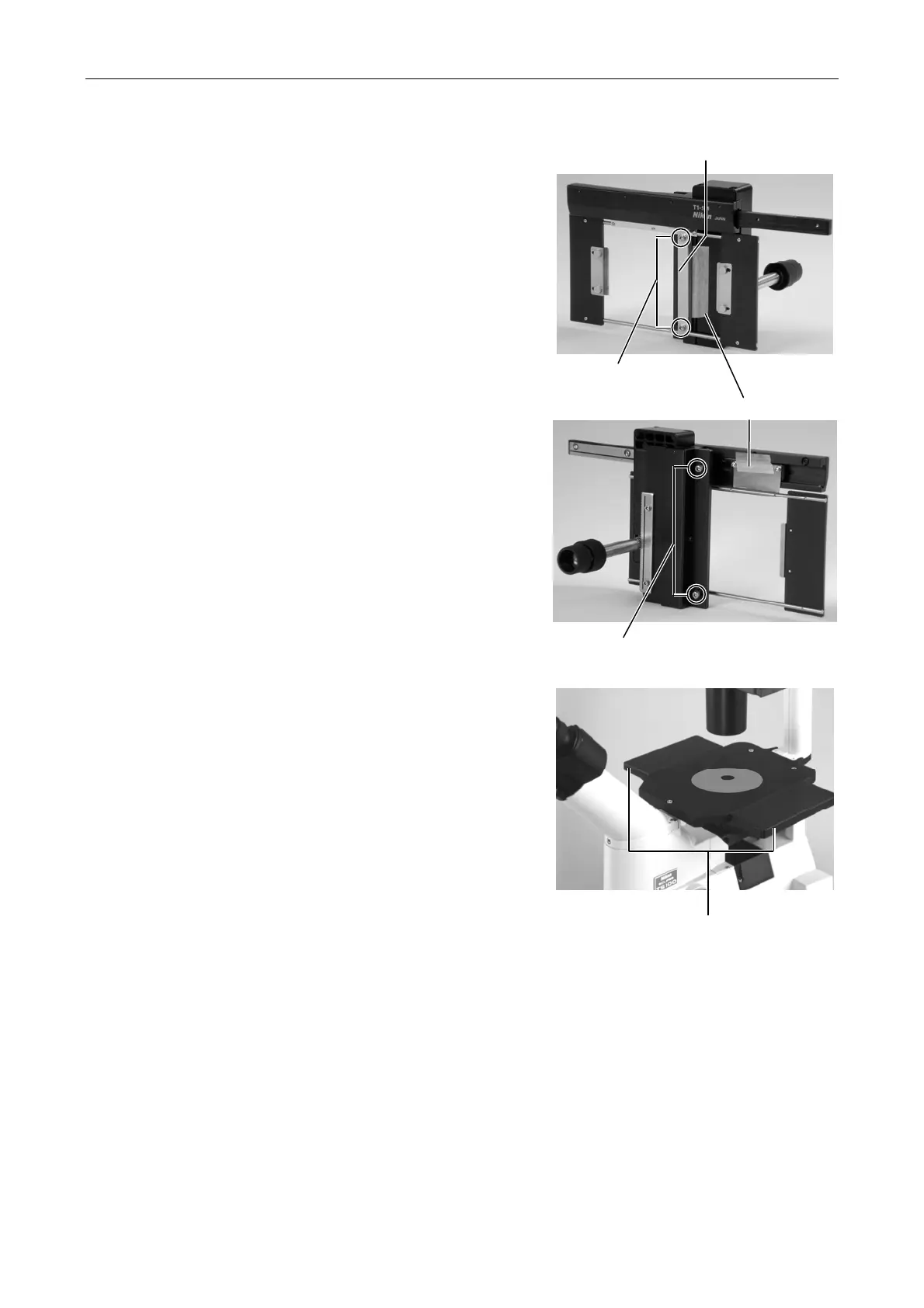

Mechanical stage
(1) Remove the round-holed or long-holed ring
from the stage if any is attached.
(2) Peal off the securing tapes for transportation
(at two locations).
(3) Loosen the bolts fixing the shipping clamp for
three turns.
(4) Place the mechanical stage on top of the
microscope stage and secure from the bottom
of the stage using two hexagonal socket head
bolts.
(5) Remove the shipping clamp from the
mechanical stage.
4
Sub-stages
Sub-stages are secured to the microscope's stage
using the screw holes for attaching a mechanical
stage.
Shipping clamp
Bolts fixing the
shipping clamp
Securing tapes
Use these bolts to secure the
stage from underside.
Sub-stages
To Next Page
