LUBRICATING THE MACHINE
Once a month, pump a small amount of grease into each grease
tting on the machine until grease seeps out around the bearings.
See Figure 4-2.
Grease tting locations (or apply grease to) (AA):
• Squeegee Caster Wheel Axle and Pivot
• Steering Chain
• Squeegee mount angle adjustment knob threads
Once a month, apply light machine oil or synthetic lubricant
spray to lubricate (AB):
• Side Blade Down Stop Adjustment Threads
ELECTROMAGNETIC BRAKE
CAUTION!
To avoid uncontrolled machine movement, block the
wheels and ensure machine is on a level surface
before disengaging the electromagnetic brake.
See Figure 4-3. The Drive Wheel Assembly (4) has a
built in electromagnetic brake that is engaged whenever
the machine power is OFF or the Drive Pedal (3) is not
being pressed. This brake can be manually overridden
if necessary by inserting a medium to large screwdriver
behind the Yoke (AC) as shown. This should only be
done in the event you need to push or pull the unit a short
distance.
CAUTION!
Only push or pull the machine with batteries
connected. If the machine is pushed or pulled with
batteries disconnected - the drive motor can generate
a charge that can damage the electrical system.

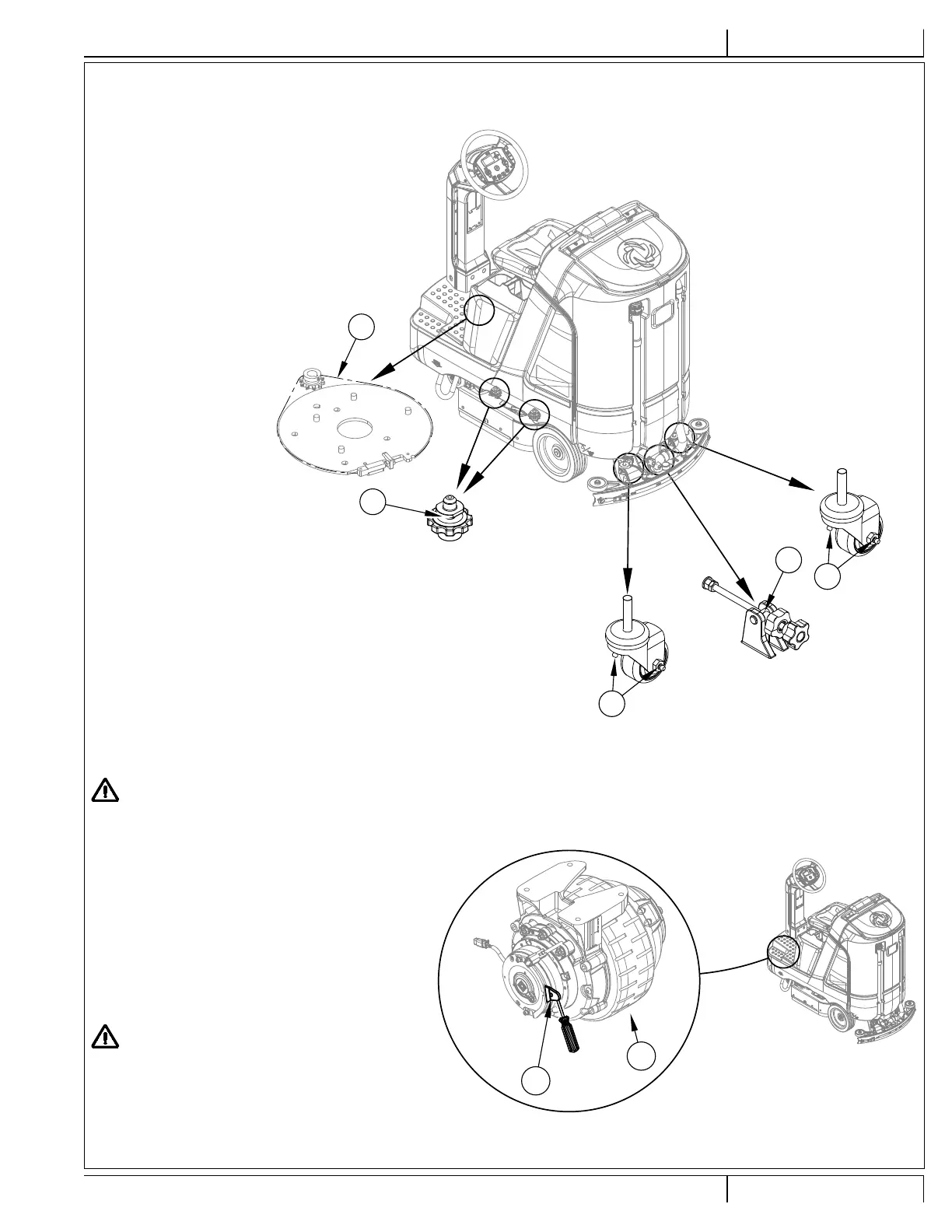

FIGURE 4-2
