Nokia 7368 ISAM ONT E-240G-B User Manual

E-240G-B unit data sheet
50
7368 ISAM ONT E-240G-B Product Guide
3FE-46261-AAAA-TCZZA Issue: 01

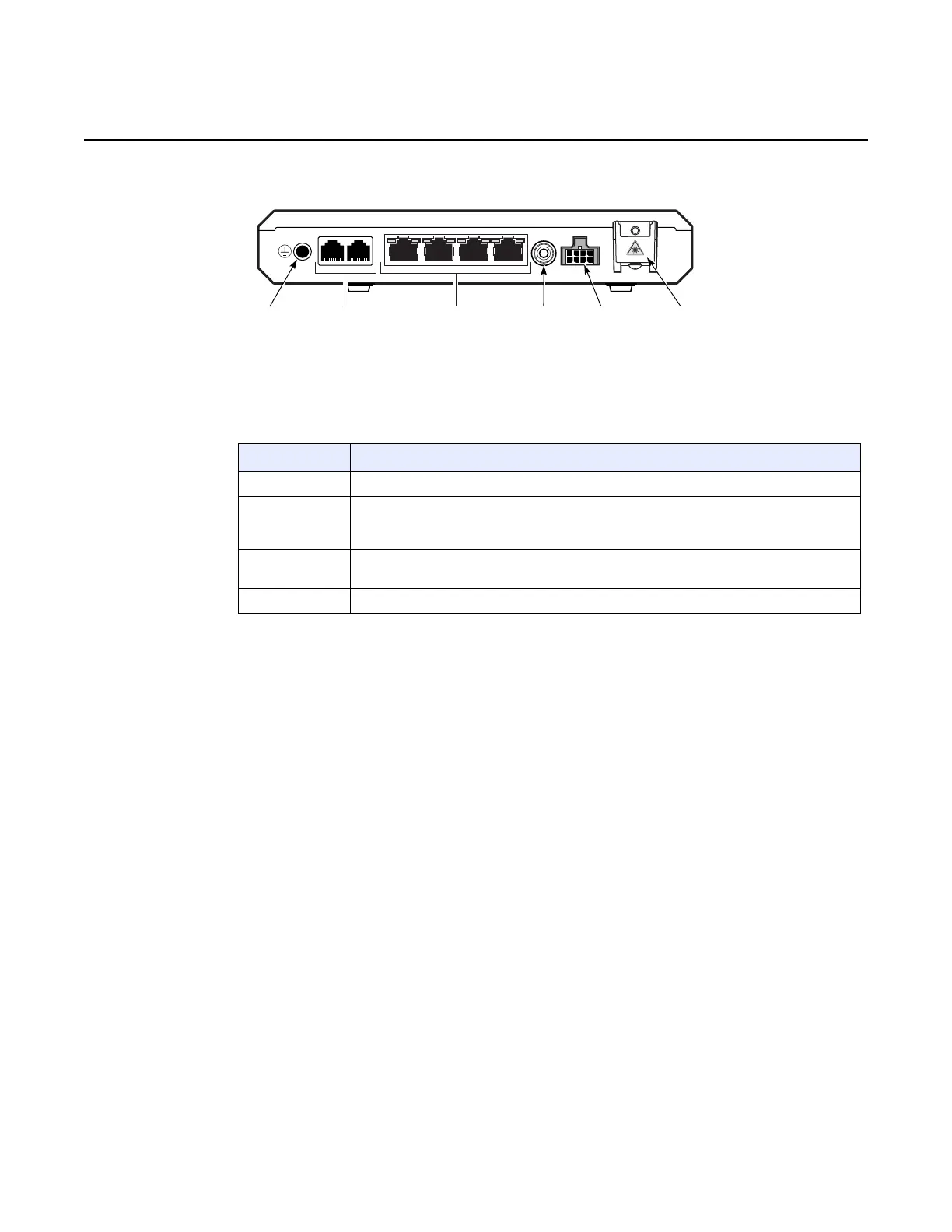

Figure 15 E-240G-B ONU connections
Table 7 describes the E-240G-B ONU physical connections.
Table 7 E-240G-B ONU physical connections
5.7 E-240G-B LEDs
Figure 16 shows the E-240G-B ONU LEDs.
DATA 1 DATA 2 DATA 3 DATA 4
ON/OFF
POWER
POTS 1 POTS 2
POTS ports
(RJ-14)
Gigabit Ethernet
ports (RJ-45)
On/off
button
Power
connector
SC/APC
connector
Ground lug
24108
Connection Description
POTS This connection is provided through RJ-14 ports.
Ethernet ports This connection is provided through Ethernet RJ-45 cables. Four Ethernet connections are
supported.The Ethernet ports can support both data and in-band video services on all four
interfaces.
Power This connection is provided through a power cable with a Molex connector to the power
connector.
Fiber optic This connection is provided through a SC/APC fiber optic cable and connector.
Release 06.01.01 | June 2019 | Edition 09
