Nokia 7368 ISAM ONT E-240G-B User Manual

Install an E-240G-B ONU
64
7368 ISAM ONT E-240G-B Product Guide
3FE-46261-AAAA-TCZZA Issue: 01

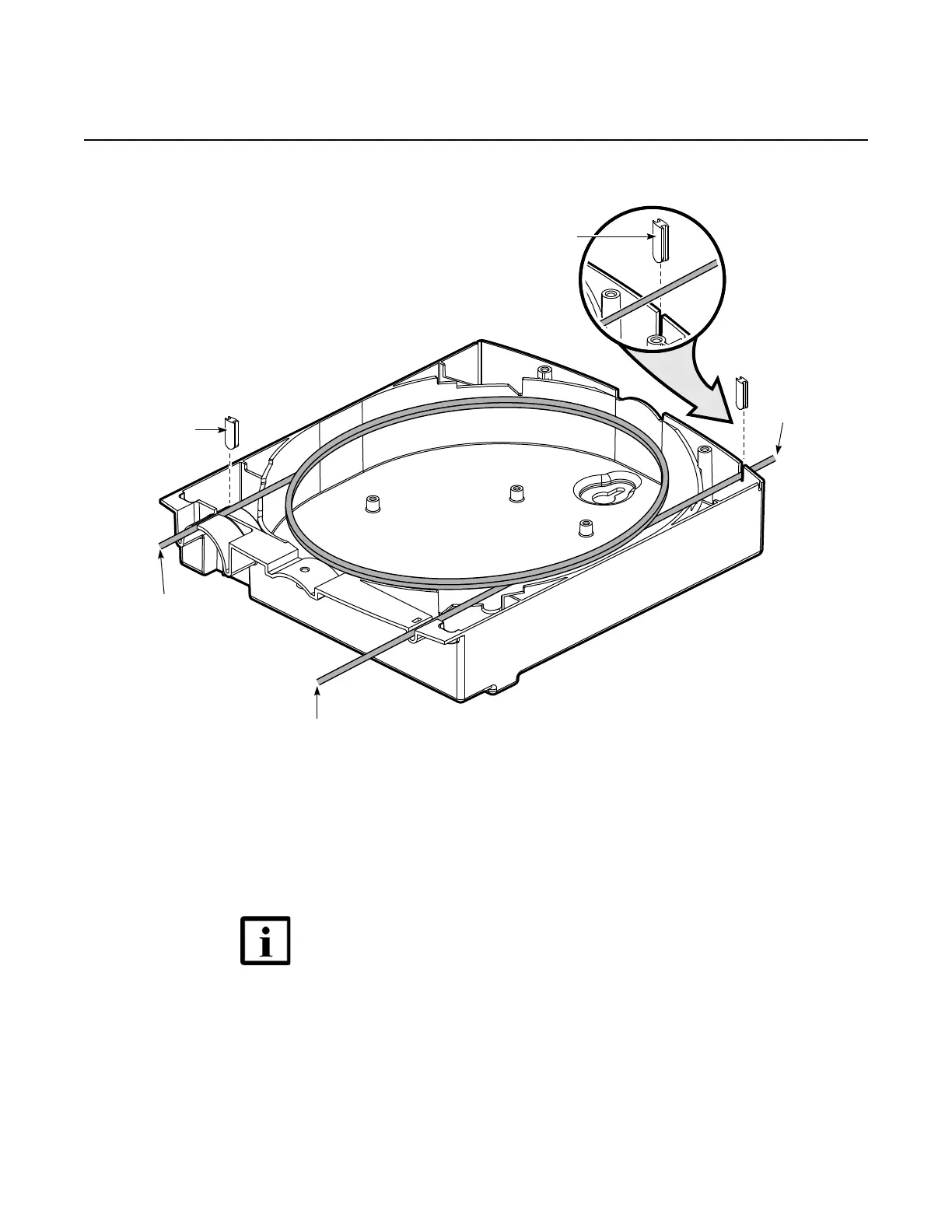

Figure 23 Coiled cable routing (open view)
iii Cut the width of the cable off of the end of the grommet.
iv Reinstall the grommet into the slot over the cable.
v Coil the excess cable in a clockwise direction, allowing enough cable to exit the
lower right cable exit port; see Figure 23.
vi Secure the fiber optic cable with the coil retention clamp; see Figure 23.
Coil retention clip
Cable feeds to ONT
(actual length varies, but a minimum of approximately 18 in.)
Buried cable
entry point
Grommet
Grommet
Aerial cable
entry point
(optional)
18812
Note 1 — There must be adequate length for the fiber optic cable to
curve around and maintain minimum bend radius, enter into the ONU
enclosure and make the optical connection.
Note 2 — There must be approximately 20 in. (50 cm) of cable exiting
the FSST at the right cable exit point.
Note 3 — The FSST stores a maximum of 75 ft (22.86 m) of cable.
Release 06.01.01 | June 2019 | Edition 09
