Install an E-240G-B ONU
66
7368 ISAM ONT E-240G-B Product Guide
3FE-46261-AAAA-TCZZA Issue: 01
Figure 24 Mounting the outdoor enclosure for the E-240G-B ONU

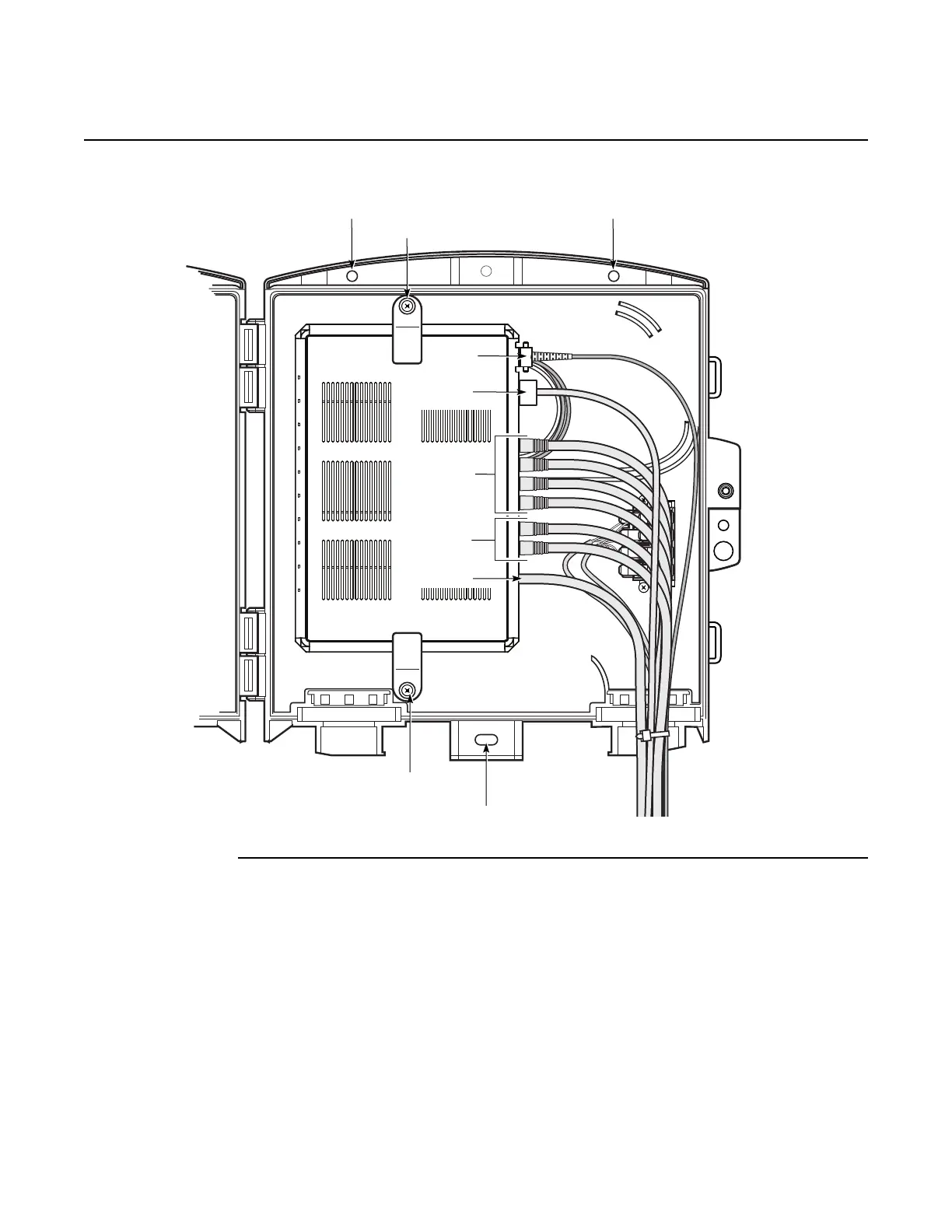

5 Place the fiber optic cable inside the wall-mounted outdoor enclosure as shown in Figure 25.
Tie wrap the cable at the fiber optic strain relief if necessary.
OptiTap
adapter
POTS
MGMT
NTWK
DATA4
DATA3
DATA2
DATA1
FAIL
BTRY
PWR
TRTRTRTR
LINELINELINE
LINE
TRTRTRTR
LINELINELINE
LINE
24110
Mounting holeMounting hole
ONT bracket
ONT bracket
Mounting hole
SC/APC
connector
Gigabit
Ethernet
ports
(RJ-45)
POTS
ports
(RJ-14)
Ground
Power
connector
